Description
- Up to 30W of power on 2-pairs
- Supports 100/1000 Base-T applications
- Power input LED indicators
- Internal AC/DC converter
- No need for external power supply
- Easy plug-and-play installation
- Multi-protection
No products in the cart.

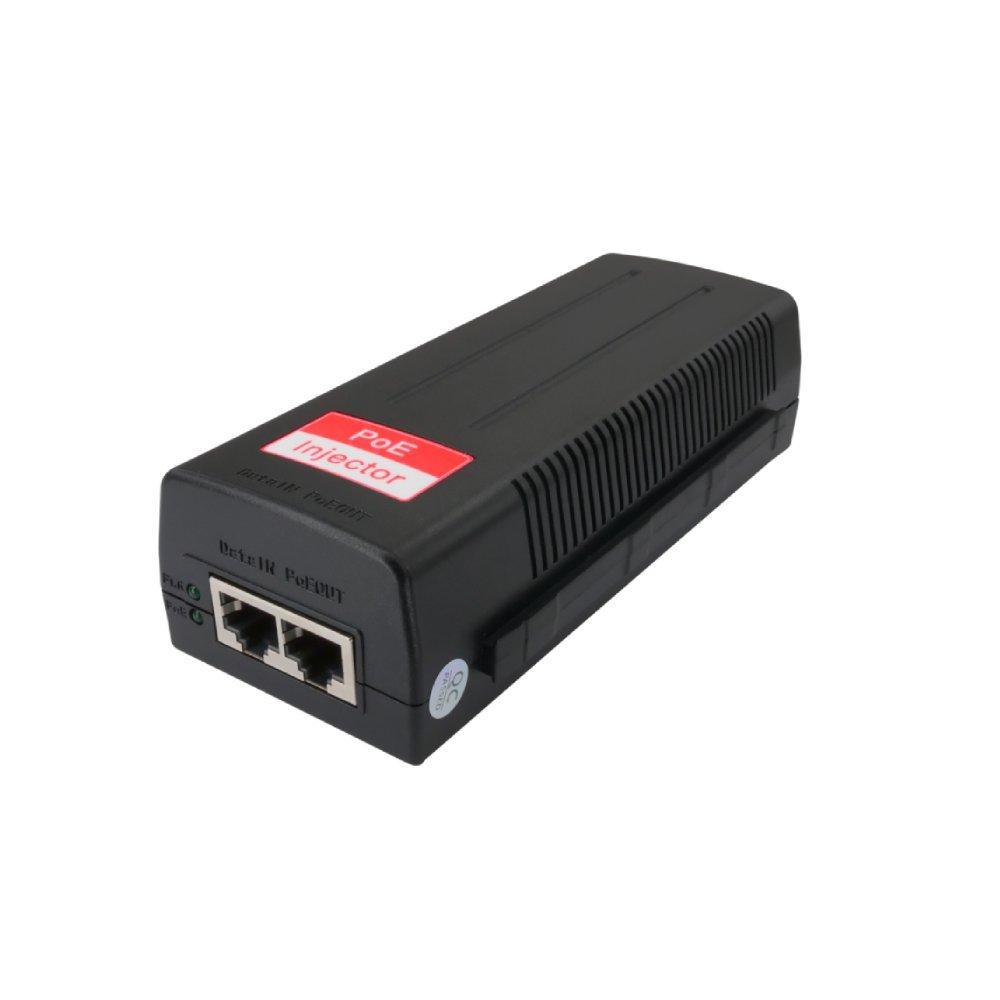

This compact 30 watts PoE injector is a single port passive PoE injector. It can convert standard 100 ~ 240V/AC power into low voltage DC that runs over existing LAN cable to power up IEEE 802.3af/at compliant network accessories and IP security cameras. No external power supply is required providing a compact, cost effective and reliable power solution over existing Ethernet infrastructure.
Physical Characteristics | ||||
---|---|---|---|---|
No. of Channels | 1 | |||
Body Material | Plastic Enclosure | |||
Operating Temperature | -10°C to 40°C | |||
Storage Temperature | -10°C to 60°C | |||
Operating Humidity | Maximum 85% (no condensation) | |||
Storage Humidity | Maximum 90% (no condensation) | |||
Dimensions | 145 x 60 x 40mm | |||
Connectors | Shielded RJ45, EIA 568A and 568B | |||
Indicators | PWR Indicator: AC Power PoE Indicator: Channel Power | |||
Performance | ||||
Pass Through Data Rates | 100/1000 Mbps | |||
Max Power | 30 Watts | |||
PoE Pin Assignment & Polarity | 1/2 (-), 3/6(+) | |||
PoE Output Voltage | DC 50V, 0.6A | |||
User Port Power | 15.4W & 30W | |||
AC Input Current/Voltage | 0.5A / 100 to 240 VAC | |||
Power Consumption | 0.5Watts | |||
Frequency | 50 to 60 Hz | |||
Over Current Protection | Yes | |||
Over Load Protection | Yes | |||
Over Volatge Protection | Yes | |||
Anti-interferance Protection | Yes |
