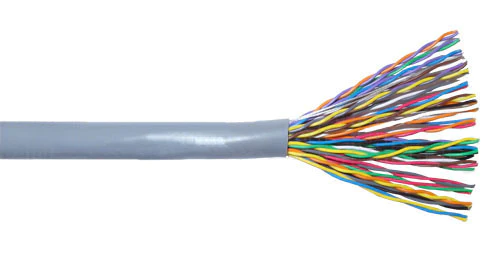

1000ft 25 Pair Cat5e Solid UTP FT4/CMR Bulk Cable – Grey
This bulk Cat5e cable is 1000 feet in length and consists of 25 pairs of 24AWG wires. It is typically used as a backbone between two locations and terminated onto bix strips.
Description
This bulk Cat5e cable is 1000 feet in length and consists of 25 pairs of 24AWG wires. It is typically used as a backbone between two locations and terminated onto bix strips.
| Physical Characteristics | |||
|---|---|---|---|
| Cable Length | 1000 foot [305m] | ||
| Color | Grey | ||
| Cable Diameter | 12.50±0.10mm | ||
| Number of Pairs | 25 Pairs | ||
| Color of Pairs | Blue-White, Orange-White, Green-White, Brown-White, Gray-White, Blue-Red, Orange-Red, Green-Red, Brown-Red, Gray-Red, Blue-Black, Orange-Black, Green-Black, Brown-Black, Gray-Black, Blue-Yellow, Orange-Yellow, Green-Yellow, Brown-Yellow, Gray-Yellow, Blue-Violet, Orange-Violet, Green-Violet, Brown-Violet, Gray-Violet | ||
| Wire Gauge | 24AWG Solid | ||
| Conductor Material | 100% Bare Copper | ||
| Conductor Diameter | 0.515±0.005mm | ||
| Jacket Material | PVC – Polyvinyl Chloride | ||
| Jacket Rating | CMR/FT4 [Riser Rated] | ||
| Jacket Average Thickness | 1.00mm | ||
| Jacket Minimum Thickness | 0.90mm | ||
| Temperature Rating | -20ºC ~ 75ºC | ||
| Insulation | PE | ||
| Insulation Average Thickness | 0.198mm | ||
| Insulation Minimum Thickness | 0.180mm | ||
| Insulation Diameter | 0.91±0.01mm | ||
| Assembly Diameter | 10.40±0.20mm | ||
| Cable Shielding | None | ||
| Rip Cord | Yes – Nylon | ||
| Voltage Rating | 30V | ||
| Temperature Rating | -20ºC ~ 75ºC | ||
| Electrical Characteristics | |||
| Before Aging | Tensile Strength (Mpa): >=13.8 Elongation (%): >=100 | ||
| Aging Condition (ºC x hrs) | 100×168 | ||
| After Aging | Tensile Strength (Mpa): >=85% of unaged Elongation (%): >=50% of unaged | ||
| Environmental | |||
| RoHS | Yes | ||
| Packaging Information | |||
| Package Quantity | 1 | ||
| Product Weight | 140 lbs | ||
