1000ft 4 Pair Cat5e 350Mhz Stranded Shielded (STP) FT4/CMR Bulk Cable

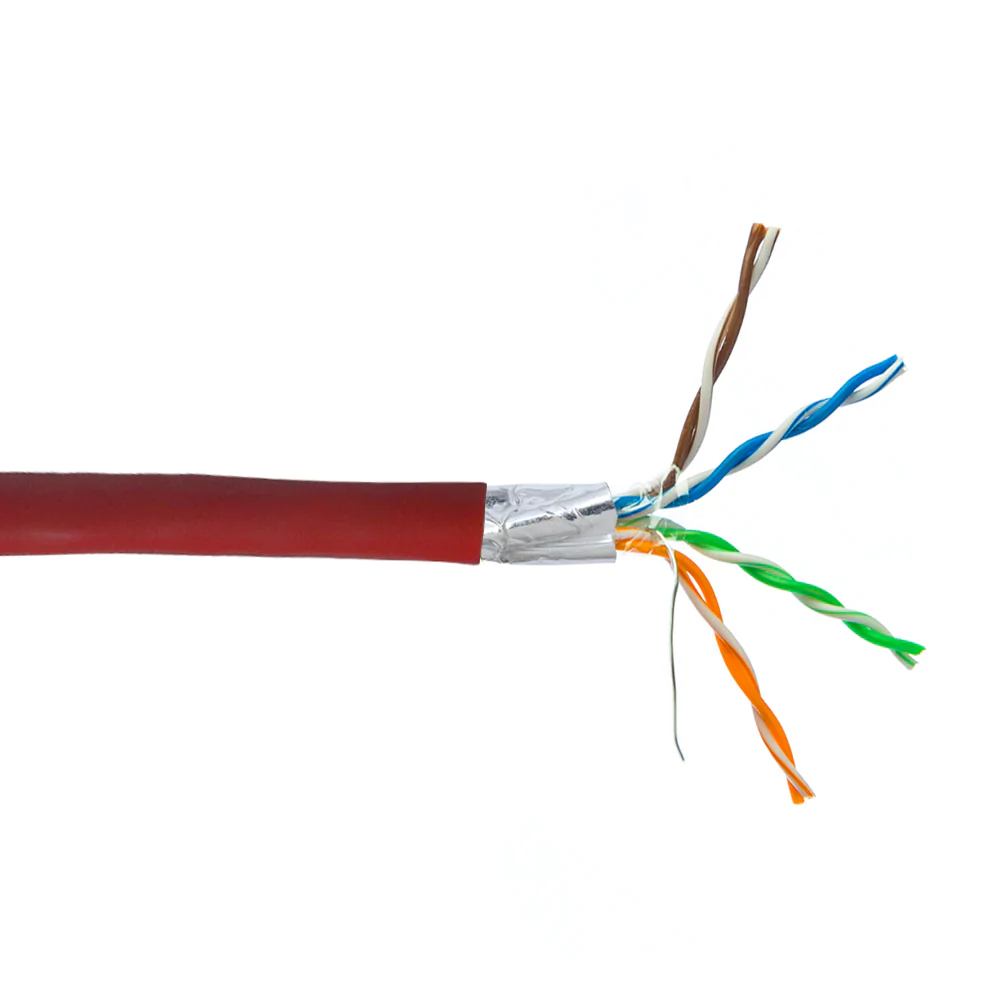

This bulk riser rated Cat5e cable is 1000 feet in length and consists of 4 pairs of 24AWG stranded wires with an overall foil shield. It is typically used to manufacture Cat5e shielded patch cables and terminated with shielded RJ45 plugs.
Description
This bulk riser rated Cat5e cable is 1000 feet in length and consists of 4 pairs of 24AWG stranded wires with an overall foil shield. It is typically used to manufacture Cat5e shielded patch cables and terminated with shielded RJ45 plugs.
Specifications
|
Physical Characteristics
|
|
|---|---|
| Cable Length | 1000 foot [305m] |
| Cable Diameter | 6.10 mm |
| Number of Pairs | 4 Pairs |
| Twisted Pair Diameter | 3.80 mm (±0.20 mm) |
| Color of Pairs | White-Blue White-Green White-Orange White-Brown |
| Wire Gauge | 24AWG Stranded |
| Stranding Count & Diameter | 7×0.32 mm |
| Conductor Material | 100% Bare Copper |
| Jacket Material | PVC – Polyvinyl Chloride |
| Jacket Rating | CMR/FT4 [Riser Rated] |
| Cable Shielding | 100% Aluminum Foil Shield |
| Rip Cord | Yes – Nylon |
| Temperature Rating | 75ºC |
|
Environmental
|
|
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
|
Packaging Information
|
|
| Package Quantity | 1 |
| Product Weight | 25.8 lbs [11.70 kg] |
