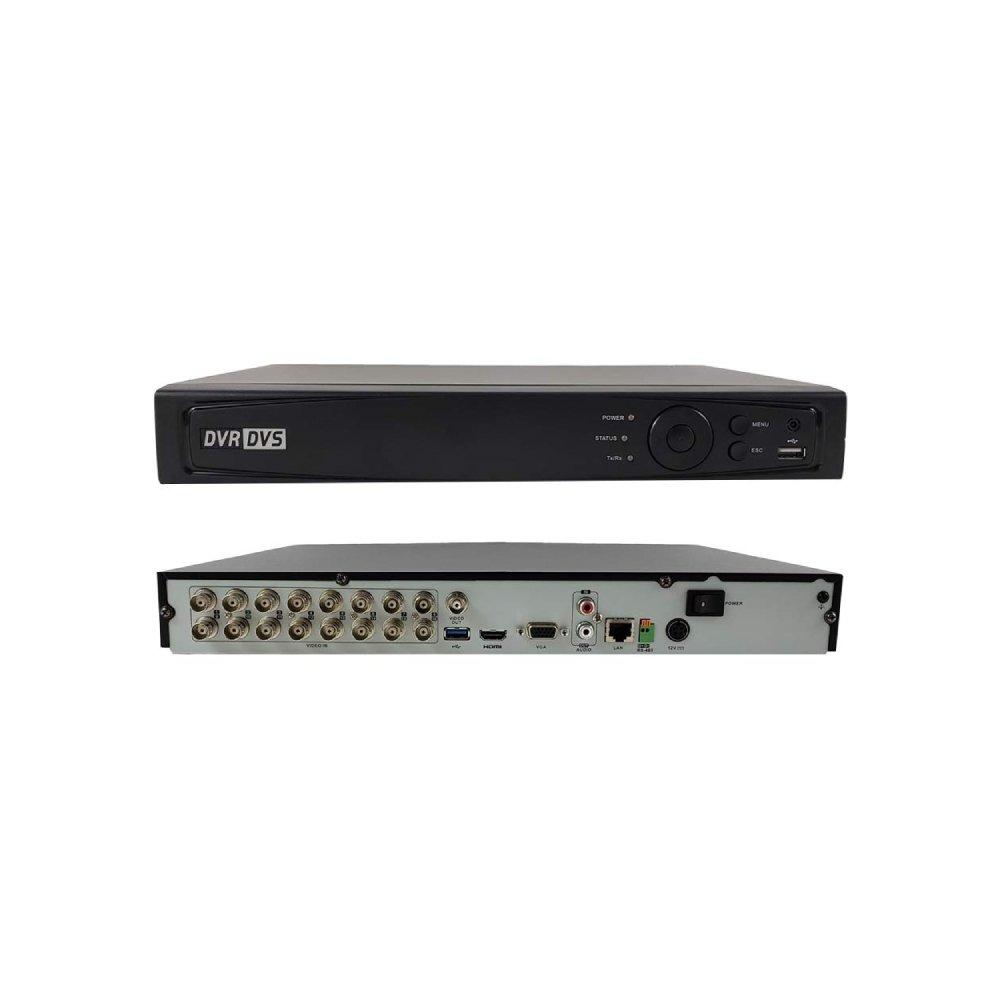

16-Channel – 2MP / HD-TVI, AHD, CVI, CVBS, DVR – 2x SATA – 4 -Channel IP
This DVR can support H.265 Pro /H.265 Pro/H.265 video compression and HDTVI/AHD/CVI/CVBS/IP video input. It has maximum of 16 analog channels or a maximum of 24 IP channels for a total of 24 cameras in any combination.
Description
DVR Features
- Support H.265 Pro /H.265 Pro/H.265 video compression
- Support HDTVI/AHD/CVI/CVBS/IP video input
- Maximum 16 analog or 24 IP camera inputs – Maximum 24 cameras (up to 6 MP)
- Maximum 800m for 1080p and 1200m for 720p HDTVI signal transmission
- Up to 10 TB capacity per HDD
HDD Feature:
- Engineered specifically for surveillance security systems
- Prioritized write-operations for maximized surveillance performance
- Tuned for write-intensive, low bit-rate, high stream-count applications typical to most surveillance applications
- Reduced video frame loss
- TLER and ATA streaming support
- Optimized performance for up to 32 high-definition surveillance cameras
DVR Specifications
| Physical Characteristics | |
|---|---|
| Dimensions | ⌀ 15.0″ x 12.6″ x 1.9″ (⌀ 380 x 320 x 48mm) |
| Operating Temperature | -10°C to 55°C (14°F to 131°F); Humidity 10% to 90% |
| Power Supply | 12V DC |
| Power Consumption | ≤ 25W(without hard disks) |
| Video and Audio | |
| CVBS Output | 1-channel, BNC (1.0Vp-p,75Ω), Resolution: PAL: 704×576, NTSC: 704×480 |
| HDMI/VGA Output | VGA: 1-channel, 1920 x 1080 @ 60Hz, 1280 x 1024 @ 60Hz, 1280 x 720 @ 60Hz, 1024 x 768 @ 60Hz HDMI: 1-channel, 4K (3840 x 2160 @ 30Hz), 2K (2560 x 1440 @ 60Hz), 1920 x 1080 @ 60Hz, 1280 x 1024 @ 60Hz, 1280 x 720 @ 60Hz, 1024 x 768 @ 60Hz |
| Recording Resolution | When 1080p Lite mode not enabled: 4 MP lite/3 MP/1080p/1080p lite/720p/WD1/4CIF/VGA/CIF When 1080p Lite mode enabled: 4 MP lite/3 MP/1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF |
| Frame Rate | Main stream: When 1080p Lite mode not enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps For 1080p stream access: 1080p@15fps; 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) |
| Video Compression | H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 |
| Analog and HD-TVI Video Input | 16-channel, BNC interface (1.0Vp-p. 75Ω) connection |
| Supported Camera Types | Support HDTVI input: 4 MP 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 Support AHD input: 4 MP, 1080p25, 1080p30, 720p25, 720p30 Support CVI input:1080p25, 1080p30, 720p25, 720p30 Support CVBS input |
| Video Input Interface | BNC (1.0 Vp-p, 75Ω) |
| Video Bit Rate | 32 Kbps-6 Mbps |
| Stream Type | Video / Video & Audio |
| Audio Input | 1-channel |
| Audio Output | 1-channel RCA (Linear, 1kΩ) |
| Audio Compression | G.711u |
| Audio Input Interface | RCA (2.0 Vp-p, 1 ㏀) |
| Audio Bit Rate | 64kbps |
| Two-way Audio | 1-channel, RCA (2.0 Vp-p 1 ㏀) – Using the 1st channel of audio input |
| Dual Stream | Support |
| Syncronous Playback | 16-channel |
| Network Management | |
| Remote Connections | 128 |
| Network Protocols | TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS,ONVIF |
| Hard Disk Driver | |
| Interface Type | 2 SATA Interfaces |
| Capacity | Up to 10TB capacity for each disk |
| External Interface | |
| Network Interface | 1; 10M / 100 M self-adaptive Ethernet interface |
| USB Interface | 1 USB 2.0 Interface & 1 USB 3.0 Interface |
| Serial Interface | 1; standard RS-485 serial interface, half-duplex |
HDD Specifications
| Physical Characteristics | ||||
|---|---|---|---|---|
| Form Factor | 3.5 inch | |||
| Dimensions | ∅ 5.7″ x 4.0″ x 1.0″ (∅ 147 x 102 x 26mm) | |||
| Operating Temperature | 0°C to 65°C | |||
| Non-Operating Temperature | -40°C to 70°C | |||
| Performance | ||||
| Formatted Capacity (Part Number) | 1TB (WD10PURX) | 2TB (WD20PURX) | 4TB (WD40PURX) | 6TB (WD62PURX) |
| Cache | 64MB | |||
| Data Transfer Rate | Buffer to Host – 6 GB/s Host to/from drive (sustained) – 110 MB/s | Buffer to Host – 6 GB/s Host to/from drive (sustained) – 145 MB/s | Buffer to Host – 6 GB/s Host to/from drive (sustained) – 150 MB/s | Buffer to Host – 6 GB/s Host to/from drive (sustained) – 175 MB/s |
| Hard Disk Interface | SATA | |||
| Rotational Speed (RPM) | IntelliPowerTM | |||
| Load/Unload Cycles | 300,000 | |||
| Non-Recoverable Read Errors per Bits Read | < 1 in 1014 | |||
| Power Management | ||||
| Average Power Requirements | Read/Write – 3.3W Idle – 2.9W Standby and Sleep – 0.4W | Read/Write – 4.4W Idle – 4.1W Standby and Sleep – 0.4W | Read/Write – 5.1W Idle – 4.5W Standby and Sleep – 0.4W | Read/Write – 5.3W Idle – 4.9W Standby and Sleep – 0.4W |
Downloads
Web Portal Remote Access
Register/login with your Guarding Vision account for access to all devices in your account remotely from the browser. Supports Internet Explorer 8+, Chrome 41.0 to 44, Firefox 30.0 to 51 and Safari 8.0 to 11
Guarding vision Android app
Supports Android 4.1 and up
Guarding vision iOS app
Supports iOS 8.0 or later. Compatible with iPhone, iPad and iPod touch
Warranty
All cameras and hard drives sold by RTC Electronics come with a 3-year warranty ensuring them free from manufacturing and material flaws. The original buyer who provides evidence of purchase is eligible for this warranty. This warranty does not cover any product failure or damage resulting from events outside RTC Electronics’ control, such as misuse, negligence, or accidental damage, inaccurate application or installation, alterations, Act of God, or ordinary wear and tear. Any removal or installation expenses are not the responsibility of RTC Electronics. Cables’ full and exclusive obligation under this warranty is to, in our exclusive discretion, either repair or replace the defective item. RTC Electronics disclaims any additional warranties, express or implied, including the implied warranty of merchantability. RTC Electronics won’t be held responsible for any losses, including lost or anticipated profits, delays, consequential damages, or other, unique damages.
