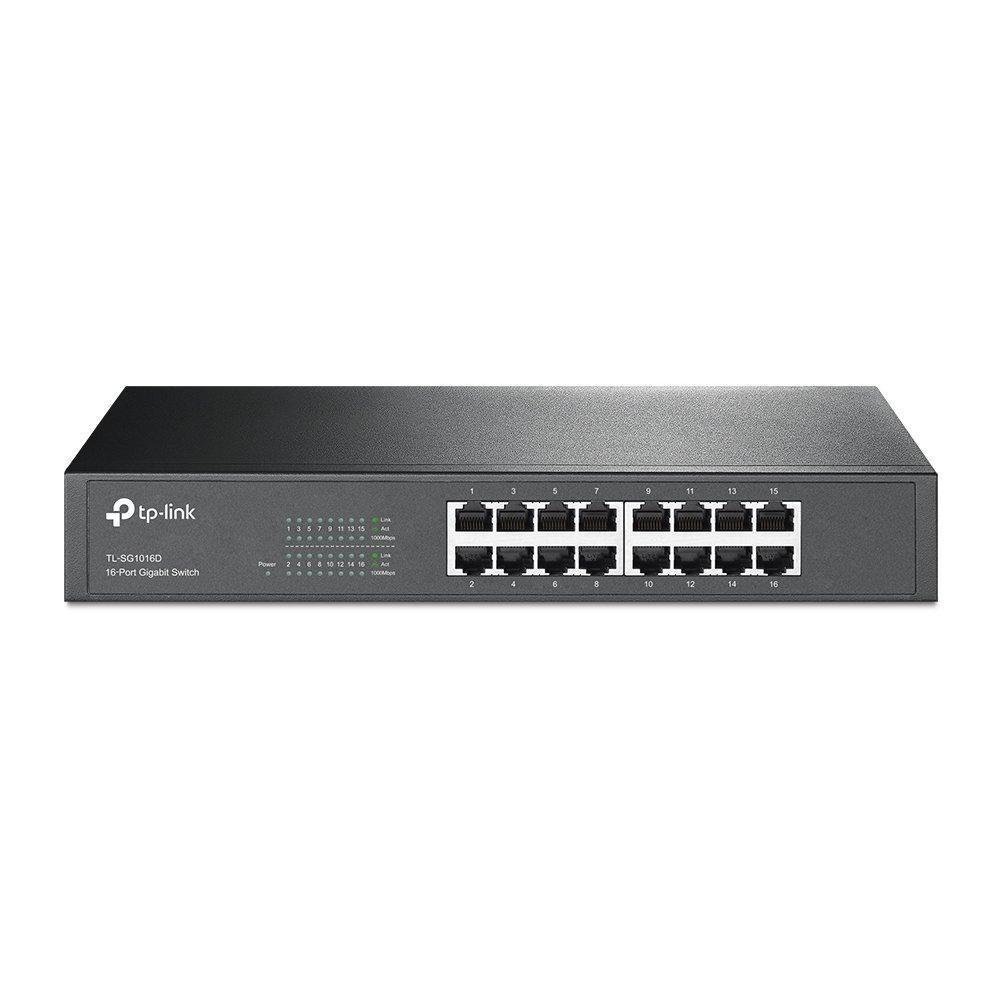

TP Link-16-Port Gigabit Desktop/Rackmount Switch
Enhance your network speed with TP-LINK TL-SG1016D 16-Port Gigabit Desktop/Rackmount Switch. Crafted with 16 ports, it provides connection speeds of up to 1,000Mbps for your network which ensures smooth and instant data transfer, even with bandwidth-intensive files. Save up to 40% of your power consumption with its innovative energy-efficient technology for an effective and eco-friendly network solution.
Description
Enhance your network speed with TP-LINK TL-SG1016D 16-Port Gigabit Desktop/Rackmount Switch. Crafted with 16 ports, it provides connection speeds of up to 1,000Mbps for your network which ensures smooth and instant data transfer, even with bandwidth-intensive files. Save up to 40% of your power consumption with its innovative energy-efficient technology for an effective and eco-friendly network solution.
FEATURES
- Ultra-Fast Network Response Times — Equipped with non-blocking switching architecture, TL-SG1016D enhances network response times and speeds up the traffic between subnets
- Plug-and-Play — You can easily plug and use TL-SG1016D. No need to worry about port specificity as each port can be directly connected to a server, hub, router, or switch using a straight or crossover cable.
-
Green Ethernet Technology — This technology automatically powers down idle ports and budgets power outputs for different Ethernet cable lengths.
-
Extensive Compatibility — All ports are compatible with full- and half-duplex transfer modes for 10/100Mbps and full-duplex transfer mode for 1,000Mbps.
-
LED Indicators — Identify and fix network problems quickly with the help of diagnostic LEDs on the front panel which displays information for power, link/activity, and speed.
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x |
| Interface | 16 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m) |
| Fan Quantity | Fanless |
| Physical Security Lock | No |
| Power Supply | 100-240VAC, 50/60Hz |
| Power Consumption | Maximum: 9.26W (220V/50Hz) |
| Dimensions ( W x D x H ) | 11.6*7.1*1.7 in. (294*180*44 mm) |
| Max Power Consumption | 9.95W(220V/50Hz) |
| Max Heat Dissipation | 33.93BTU/h |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 32Gbps |
| Packet Forwarding Rate | 23.8Mpps |
| MAC Address Table | 8K |
| Jumbo Frame | 10KB |
| Green Technology | Yes |
| Transfer Method | Store-and-Forward |
| OTHERS | |
|---|---|
| Certification | FCC, RoHs |
| Package Contents | 16-Port Gigabit Desktop/Rackmount Switch Power Cord Installation Guide Rackmount Kits Rubber Feet |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing |
