18U A/V & Network Cabinet – Lockable, Ventilated, 1322 lbs Capacity | Ideal for Home, Security, Restaurants, Offices

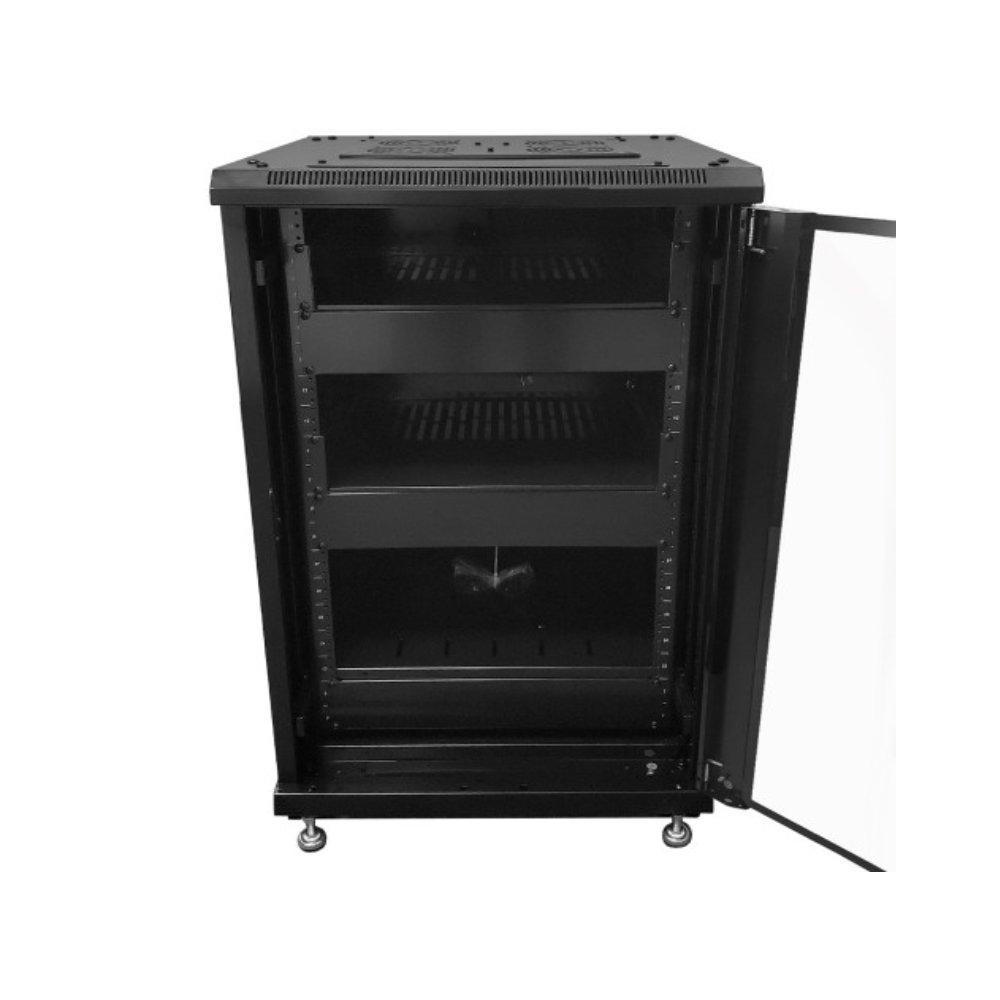

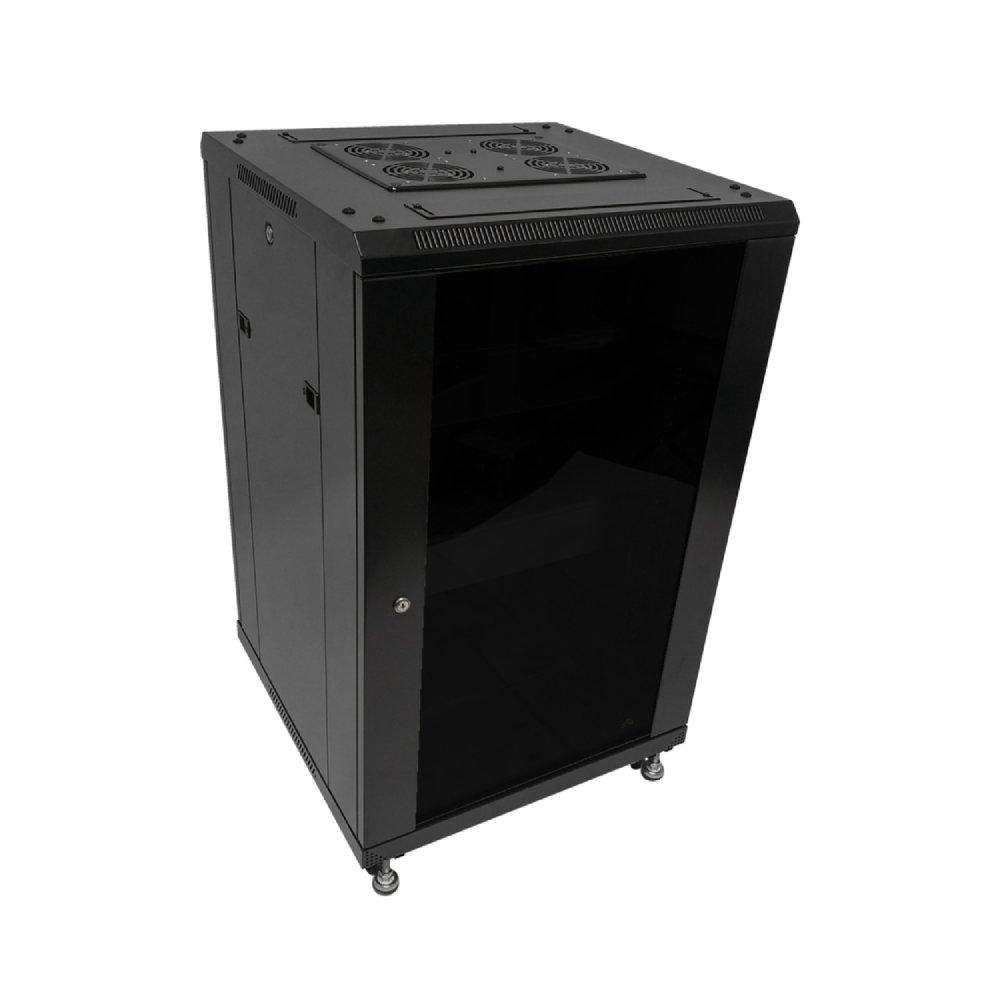

This 18U A/V and networking cabinet comes with a lockable glass front door, a lockable solid rear door and removable/lockable side panels. It comes assembled and pre-loaded with a four fan top, three vented shelves, solid blank filler panels and tapped rails. Cable entries are available on the top and bottom of the cabinet. There are also removable panels at the bottom of the cabinet for increased air flow. It is typically used in home installations, security applications, restaurants/bars and offices where server depth is not required.
Description
This 18U A/V and networking cabinet comes with a lockable glass front door, a lockable solid rear door and removable/lockable side panels. It comes assembled and pre-loaded with a four fan top, three vented shelves, solid blank filler panels and tapped rails. Cable entries are available on the top and bottom of the cabinet. There are also removable panels at the bottom of the cabinet for increased air flow. It is typically used in home installations, security applications, restaurants/bars and offices where server depth is not required.
| Physical Characteristics | |
|---|---|
| Color | Black – Powder Coated |
| Material | SPCC Cold Rolled Steel |
| Material Thickness | Tapped Rails:2.3mm, Side Panels 1.0mm, Others:1.2 mm |
| Front Door | Glass front door can be hinged from either direction Opening angle of front door is over 180 degrees |
| Rear Door | Solid rear door can be hinged from either direction Opening angle of front door is over 180 degrees |
| Side Panels | Solid side panels, removable/lockable |
| Mounting Rails | 2 Pairs of 10-32 Tapped Rails (Front and Back) |
| Adjustable Mounting Profile Installation | Yes |
| Assembly Required | No |
| Loading Capacity | Maximum 1322 lbs [600 kg] |
| Cable Entries | Cable entry on both of top cover and bottom panel |
| Width | 23 inches |
| Capacity | 18U |
| Product Dimensions | 39.4 H, 23.6 W, 23.6 D inches [100 H, 60 W, 60 D cm] |
| Usable Mounting Dimensions | 18U Height x 19″ Wide x 19″ Deep |
| Compatible Products | |
| RM-1200-BRUSH | Brush Opening Cover for Cable Pass-Through with Screws for RM-12XX Cabinets |
| Approvals | |
| ANSI/EIA | Yes |
| RS-310-D | Yes |
| IEC60297-2 | Yes |
| DIN41494 | Yes |
| PART1 | Yes |
| PART7 | Yes |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Packaging Information | |
| Package Quantity | 1 – A/V Networking Cabinet 18U (Assembled, Pre-Loaded) |
| Mounting Hardware | 20 Sets – M6 Screws and Cage Nuts |
| Product Weight | 133 lbs [60.5 kg] |
Please note this item is considered oversized and cannot be shipped via courier. You will not be able to check-out with this item in your cart unless you select the local pick-up option or the freight collect option and provide us with your trucking company details. Contact us for a shipping quote.
