19 inch Wall Mount Bracket – 4U, Adjustable Depth, 12-18 Inches, Hinged

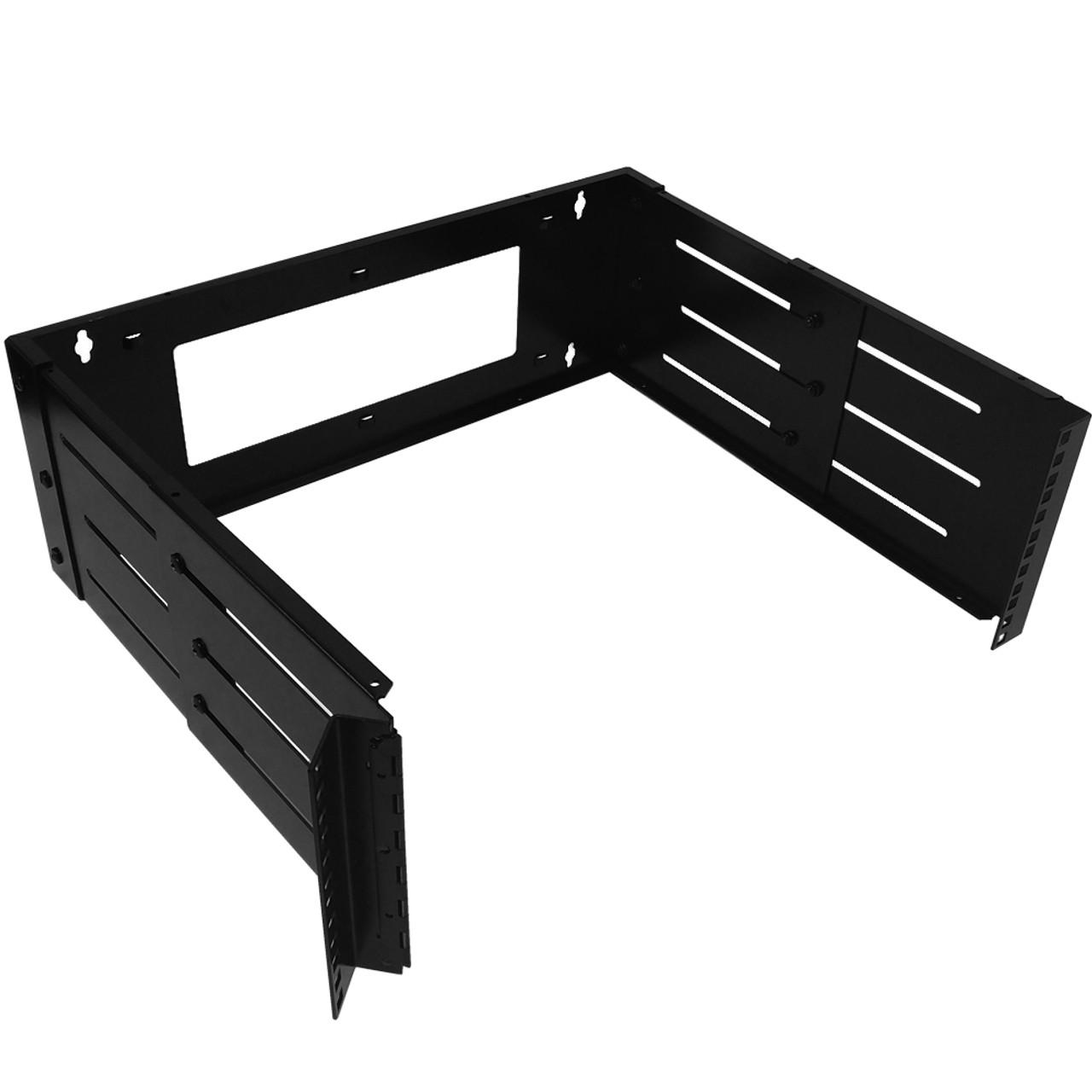

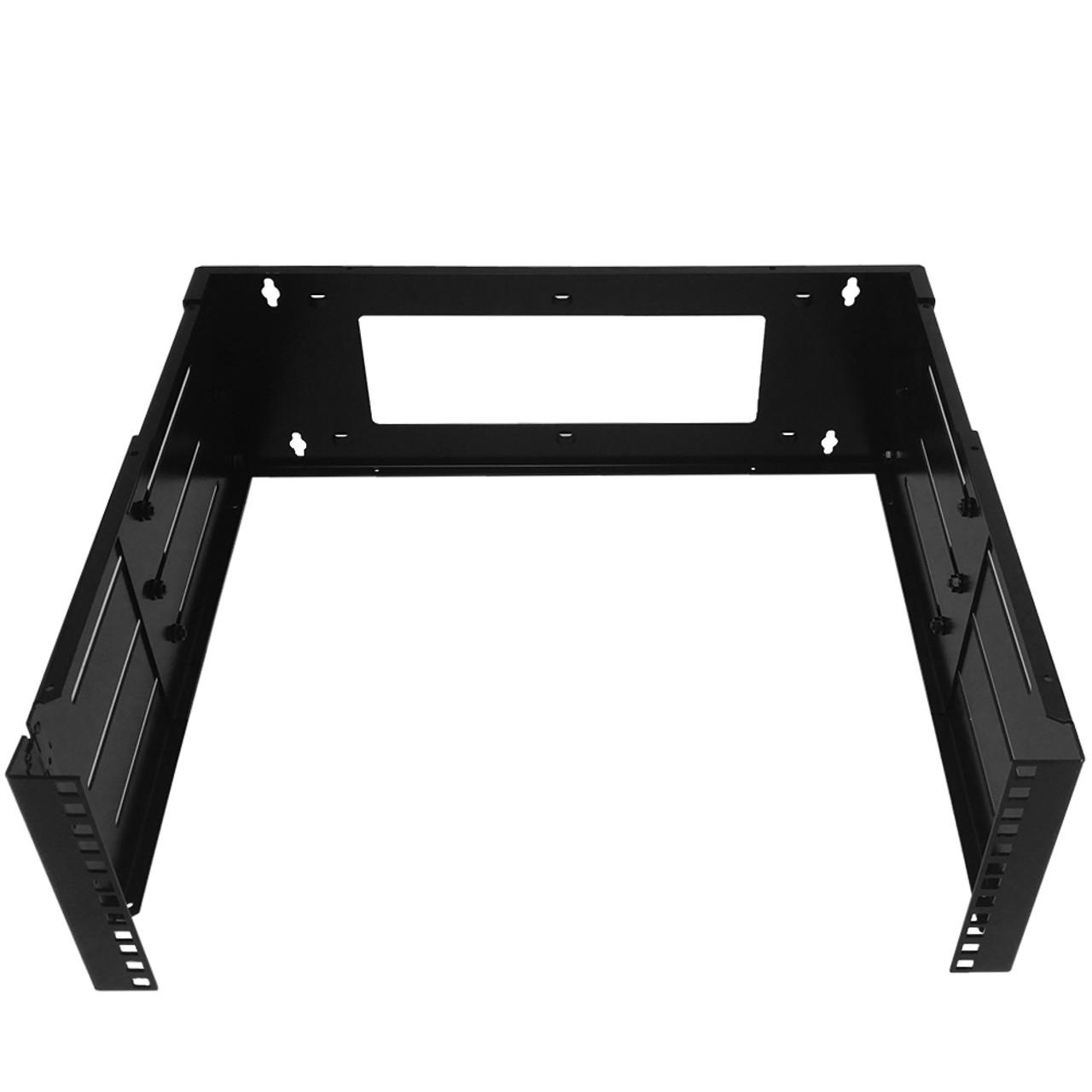

This wall mount bracket is 4U in height and adjustable from 12 to 18 inches in depth. It is used for mounting 19″ wide networking equipment.
Description
This wall mount bracket is 4U in height and adjustable from 12 to 18 inches in depth. It is used for mounting 19″ wide networking equipment.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Finish | Powder Painted |
| Material | 2.0mm SPCC Cold Rolled Steel |
| Height in units | 4U |
| Height in inches | 7.24 inches [184mm] |
| Rail Mounting Style | Square Hole Punched Rails |
| Rail Thickness | 2.15mm |
| Overall Dimensions | 7.24H x 20.5W x 18D Inches |
| Rear Wire Access Hole | 1 (11.8 x 3.9 inches) |
| Mounting Depth | 12 inches ~ 18 inches (Adjustable) |
| Load Capacity | 70 lbs (32kg) |
| Cable Management | Tie Point Notches |
| Wall Mounting Hardware | Not Included |
| Equipment Mounting Hardware | Included |
| Approvals | |
| ANSI/EIA | Yes |
| RS-310-D | Yes |
| IEC60297-2 | Yes |
| DIN41494 | Yes |
| PART1 | Yes |
| PART7 | Yes |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 10.3 lbs [4.7kg] |
| Contents | |

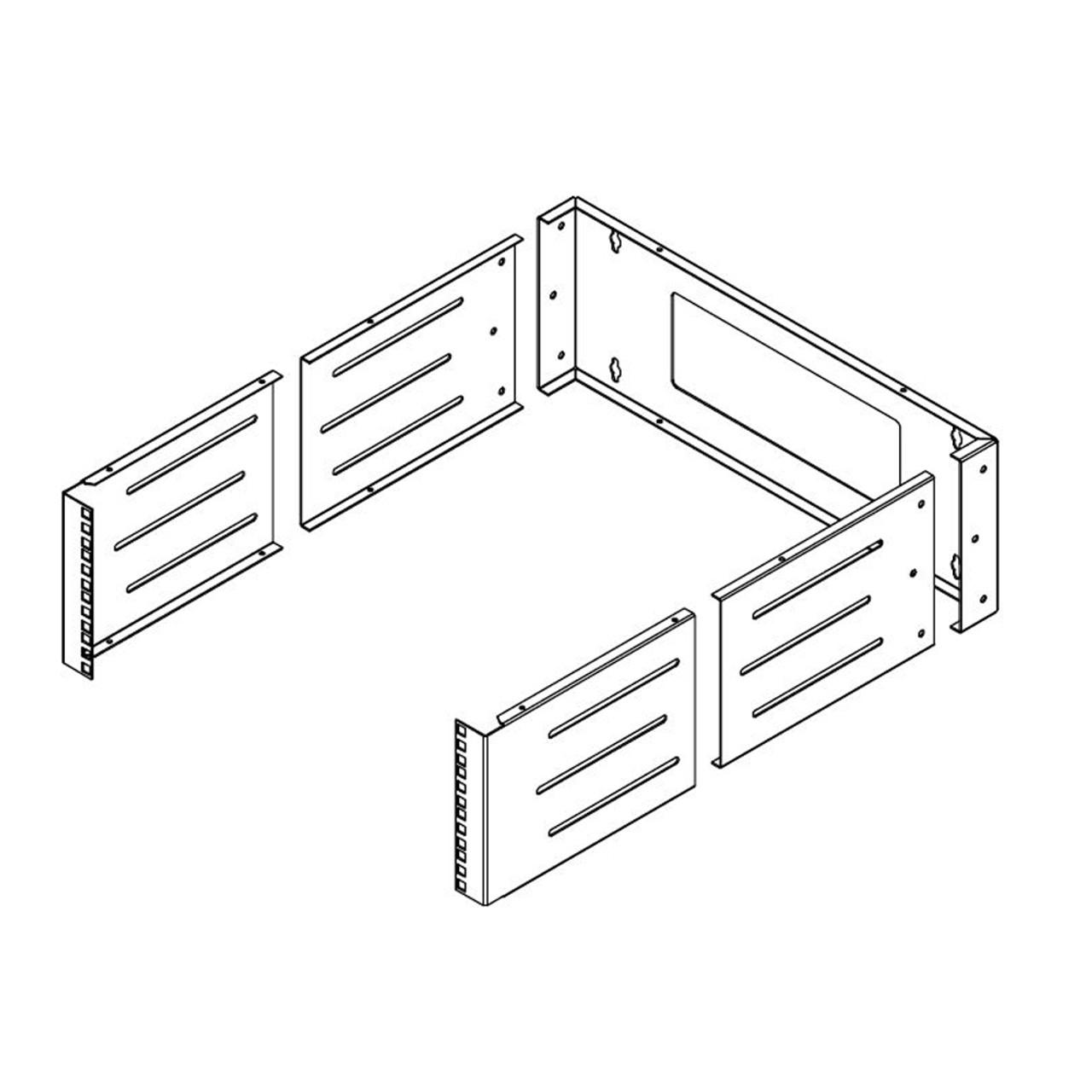

| Included in Package | 1 – Wall Mount Bracket (Un-Assembled, Flat Packed) |
| 10 – M6 Screws | |
| 10 – M6 Cage Nuts | |
