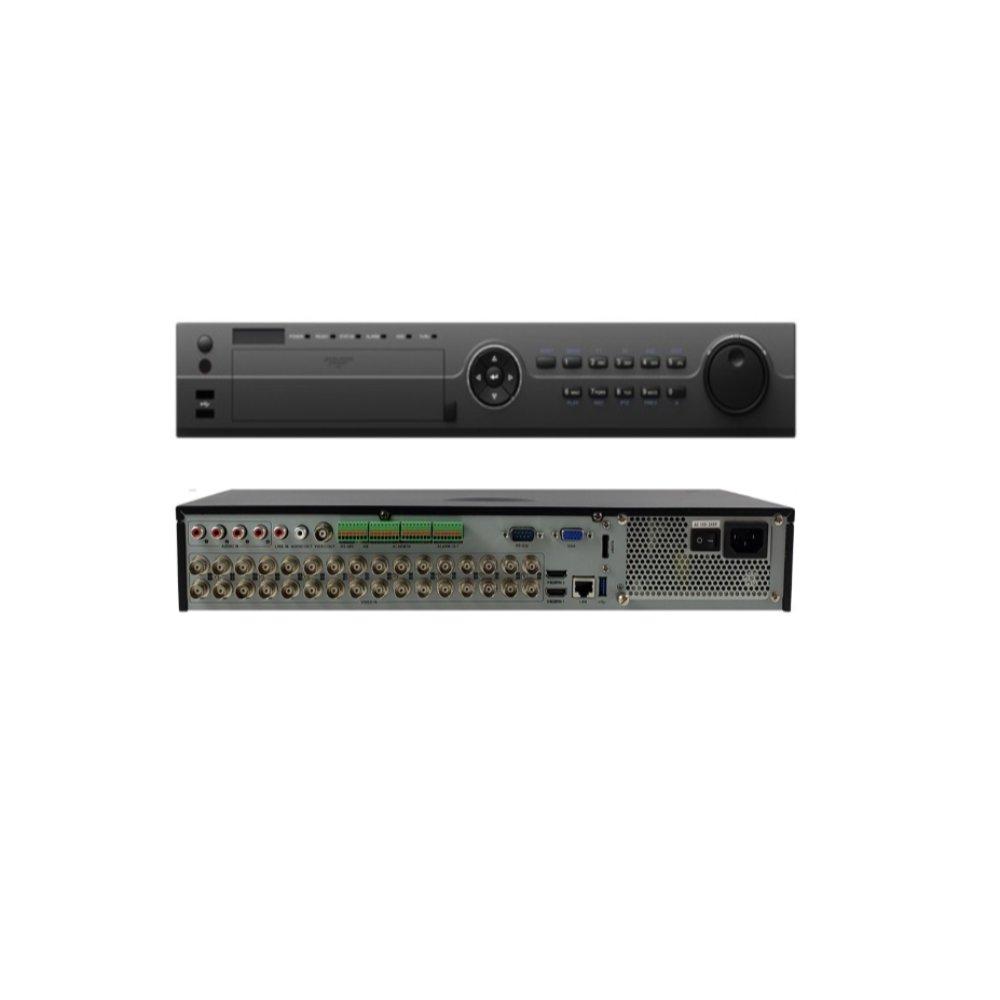

32-Channel Analog – 5MP/8MP – HD-TVI, AHD, CVI, CVBS, DVR – 4x SATA – 16-Channel IP
This 32-channel DVR can be used with surveillance cameras that have AHD, CVI and CVBS inputs. It can output video simultaneously using the HDMI and VGA ports and supports long transmission over UTP and coaxial cable.
Description
DVR Features:
- Support H.265 Pro /H.265 Pro/H.265 video compression
- Support HDTVI/AHD/CVI/CVBS/IP video input
- Up to 8 MP IP cameras input
- Long distance transmission over UTP and coaxial cable
- Output bandwidth configurable
- Up to 10 TB capacity per HDD
HDD Features:
- Engineered specifically for surveillance security systems
- Prioritized write-operations for maximized surveillance performance
- Tuned for write-intensive, low bit-rate, high stream-count applications typical to most surveillance applications
- Reduced video frame loss
- TLER and ATA streaming support
- Optimized performance for up to 32 high-definition surveillance cameras
DVR Specifications
| Physical Characteristics | |
|---|---|
| Dimensions | ⌀ 17.3″ x 15.4″ x 2.8″ (⌀ 440 x 390 x 70mm) |
| Operating Temperature | -10°C to 55°C (14°F to 131°F); Humidity 10% to 90% |
| Power Supply | 100 to 240V AC |
| Power Consumption | ≤ 74W(without hard disks) |
| Video and Audio | |
| HDMI1/VGA Output | 1-channel, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| HDMI2 Output | 1-channel, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| CVBS Output | 1-channel, BNC (1.0 Vp-p, 75Ω), PAL Resolution: 704 x 576 NTSC Resolution: 704 x 480 |
| Recording Resolution | 5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF |
| Frame Rate | Main stream: 5 MP@12fps/4 MP@15fps/3 MP@18fps 1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)Sub stream: WD1/4CIF/CIF@25fps (P)/30fps (N) |
| Video Compression | H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 |
| Analog Video Input | 4-channel, BNC interface (1.0Vp-p. 75Ω) connection, Supporting Coaxiton Connection |
| Supported Camera Types | Support HDTVI input: 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 Support AHD input: 5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30 Support HDCVI input: 4 MP, 1080p25, 1080p30, 720p25, 720p30 Support CVBS input: PAL/NTSC |
| Video Input Interface | BNC (1.0 Vp-p, 75Ω) |
| Video Bit Rate | 32 Kbps-10 Mbps |
| Stream Type | Video / Video & Audio |
| Audio Input | 4-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Audio Output | 1-channel, RCA (Linear, 1㏀) |
| Audio Compression | G.711u |
| Audio Input Interface | 4-channel, RCA (2.0 Vp-p, 1 ㏀) |
| Audio Bit Rate | 64kbps |
| Two-way Audio | 1-channel, RCA (2.0 Vp-p 1 ㏀) – Using the 1st channel of audio input |
| Dual Stream | Support |
| Synchronous Playback | 16-channel |
| Network Management | |
| Remote Connections | 128 |
| Network Protocols | TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Hard Disk Driver | |
| Interface Type | 4 SATA Interface |
| Capacity | Up to 8TB capacity for each disk |
| External Interface | |
| Network Interface | 2; RJ45 10M/100M/1000M self-adaptive Ethernet interface |
| USB Interface | Front panel: 2 x USB 2.0 Rear panel: 1 x USB 3.0 |
| Serial Interface | RS-232, RS-485 (full-duplex), Keyboard |
| Alarm In/Out | 16/4 |
HDD Specifications
| Physical Characteristics | ||||
|---|---|---|---|---|
| Form Factor | 3.5 inch | |||
| Dimensions | ∅ 5.7″ x 4.0″ x 1.0″ (∅ 147 x 102 x 26mm) | |||
| Operating Temperature | 0°C to 65°C | |||
| Non-Operating Temperature | -40°C to 70°C | |||
| Performance | ||||
| Formatted Capacity (Part Number) | 1TB (WD10PURX) | 2TB (WD20PURX) | 4TB (WD40PURX) | 6TB (WD62PURX) |
| Cache | 64MB | |||
| Data Transfer Rate | Buffer to Host – 6 GB/s Host to/from drive (sustained) – 110 MB/s | Buffer to Host – 6 GB/s Host to/from drive (sustained) – 145 MB/s | Buffer to Host – 6 GB/s Host to/from drive (sustained) – 150 MB/s | Buffer to Host – 6 GB/s Host to/from drive (sustained) – 175 MB/s |
| Hard Disk Interface | SATA | |||
| Rotational Speed (RPM) | IntelliPowerTM | |||
| Load/Unload Cycles | 300,000 | |||
| Non-Recoverable Read Errors per Bits Read | < 1 in 1014 | |||
| Power Management | ||||
| Average Power Requirements | Read/Write – 3.3W Idle – 2.9W Standby and Sleep – 0.4W | Read/Write – 4.4W Idle – 4.1W Standby and Sleep – 0.4W | Read/Write – 5.1W Idle – 4.5W Standby and Sleep – 0.4W | Read/Write – 5.3W Idle – 4.9W Standby and Sleep – 0.4W |
Downloads
Web Portal Remote Access
Register/login with your Guarding Vision account for access to all devices in your account remotely from the browser. Supports Internet Explorer 8+, Chrome 41.0 to 44, Firefox 30.0 to 51 and Safari 8.0 to 11
Guarding vision Android app
Supports Android 4.1 and up
Guarding vision iOS app
Supports iOS 8.0 or later. Compatible with iPhone, iPad and iPod touch
Warranty
All cameras and hard drives sold by RTC Electronics come with a 3-year warranty ensuring them free from manufacturing and material flaws. The original buyer who provides evidence of purchase is eligible for this warranty. This warranty does not cover any product failure or damage resulting from events outside RTC Electronics’ control, such as misuse, negligence, or accidental damage, inaccurate application or installation, alterations, Act of God, or ordinary wear and tear. Any removal or installation expenses are not the responsibility of RTC Electronics. Cables’ full and exclusive obligation under this warranty is to, in our exclusive discretion, either repair or replace the defective item. RTC Electronics disclaims any additional warranties, express or implied, including the implied warranty of merchantability. RTC Electronics won’t be held responsible for any losses, including lost or anticipated profits, delays, consequential damages, or other, unique damages.
