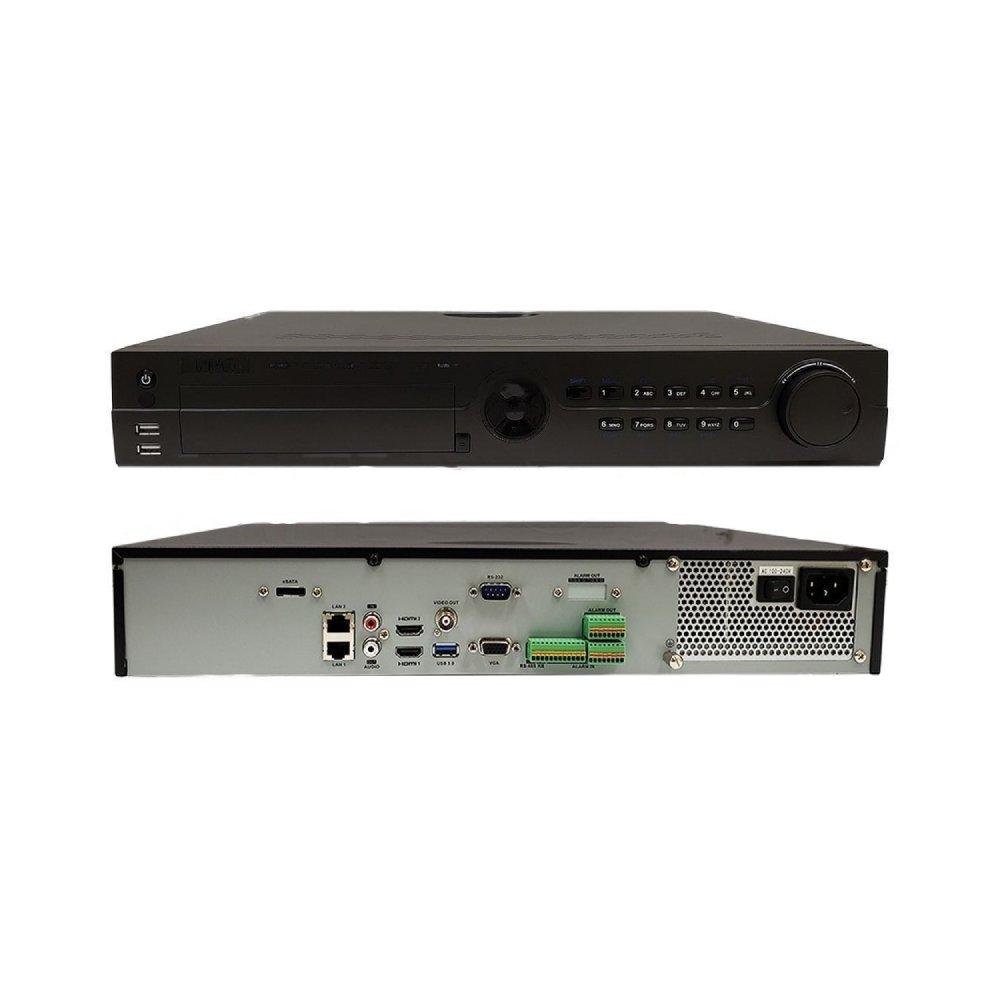

32-Channel IP NVR – 12MP – 4K Resolution – 256Mbps – 4x SATA – 2U
This 32 channel NVR is a network video recorder that can support up to 12MP IP cameras. It has 4 SATA interfaces and a space for 4 hard drives with capacity up to 6TB and can support H.265/H.264/MPEG4 video format compression to put less stress on storage and bandwidth usage. A local monitor can be connected either through the HDMI or VGA ports.
Description
NVR Features:
- 32CH Embedded NVR
- H.265/H.264/MPEG4 video formats
- Connectable to the third-party network cameras
- Up to 32 IP cameras can be connected
- Recording at up to 12 MP resolution
- Supports live view, storage, and playback of the connected camera at up to 12 MP resolution
- Total 256M Incoming Bandwidth
- 1-Port HDMI with 4K Output; 1-Port VGA Output @ 1080P
- 4-Port SATA up to 24TB HDD Capacity
- 2 Self-Adaptive 10/100/1000M Network Interface
- Dual-OS design to ensure high reliability of system running
- ANR technology to enhance the storage reliability when the network is disconnected
HDD Features:
- Engineered specifically for surveillance security systems
- Prioritized write-operations for maximized surveillance performance
- Tuned for write-intensive, low bit-rate, high stream-count applications typical to most surveillance applications
- Reduced video frame loss
- TLER and ATA streaming support
- Optimized performance for up to 32 high-definition surveillance cameras
NVR Specifications
| Video/Audio Input and Output | |
|---|---|
| Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1KΩ) |
| IP video input | 32-ch Up to 12 MP resolution |
| HDMI Output | 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| VGA Output | 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Recording Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF /CIF/QCIF |
| Audio Output | 1-ch, RCA (Linear, 1kΩ) |
| Network | |
| Network Interface | 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces |
| Remote connection | 128 |
| Incoming bandwidth | 256 Mbps |
| Outgoing bandwidth | 256 Mbps |
| Decoding | |
| Decoding Format | H.265/H.264/MPEG4 |
| Capability | 4-ch @ 4K, or 16-ch @ 1080p |
| Synchronous Playback | 16-ch |
| Live view / Playback | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF /CIF/QCIF |
| Hard Disk and External Interface | |
| eSATA | 1 eSATA interface |
| SATA | 4 SATA interfaces for 4HDDs |
| Capacity | Up to 6TB capacity for each HDD |
| USB Interface | Front panel: 2 × USB 2.0 Rear panel: 1 × USB 3.0 |
| Serial Interface | 1 RS-485 (half-duplex), 1 RS-232 |
| Alarm In/Out | 16/4 |
| General | |
| Power Supply | 100 to 240 VAC |
| Power | ≤80 W |
| Consumption(without hard disk) | ≤ 20 W |
| Working Temperature | -10 to +55ºC (14 to 131ºF) |
| Working Humidity | 10 % ~ 90 % |
| Chassis | 19-inch rack-mounted 1.5U chassis |
| Dimensions | 445 × 390 ×70 mm ( 17.5″× 15.3″ × 2.8″) |
| Weight(without HDD)Communication | ≤ 5 Kg (11 lb) |
HDD Specifications
| Physical Characteristics | ||||
|---|---|---|---|---|
| Form Factor | 3.5 inch | |||
| Dimensions | ∅ 5.7″ x 4.0″ x 1.0″ (∅ 147 x 102 x 26mm) | |||
| Operating Temperature | 0°C to 65°C | |||
| Non-Operating Temperature | -40°C to 70°C | |||
| Performance | ||||
| Formatted Capacity (Part Number) | 1TB (WD10PURX) | 2TB (WD20PURX) | 4TB (WD40PURX) | 6TB (WD62PURX) |
| Cache | 64MB | |||
| Data Transfer Rate | Buffer to Host – 6 GB/s Host to/from drive (sustained) – 110 MB/s | Buffer to Host – 6 GB/s Host to/from drive (sustained) – 145 MB/s | Buffer to Host – 6 GB/s Host to/from drive (sustained) – 150 MB/s | Buffer to Host – 6 GB/s Host to/from drive (sustained) – 175 MB/s |
| Hard Disk Interface | SATA | |||
| Rotational Speed (RPM) | IntelliPowerTM | |||
| Load/Unload Cycles | 300,000 | |||
| Non-Recoverable Read Errors per Bits Read | < 1 in 1014 | |||
| Power Management | ||||
| Average Power Requirements | Read/Write – 3.3W Idle – 2.9W Standby and Sleep – 0.4W | Read/Write – 4.4W Idle – 4.1W Standby and Sleep – 0.4W | Read/Write – 5.1W Idle – 4.5W Standby and Sleep – 0.4W | Read/Write – 5.3W Idle – 4.9W Standby and Sleep – 0.4W |
Downloads
Web Portal Remote Access
Register/login with your Guarding Vision account for access to all devices in your account remotely from the browser. Supports Internet Explorer 8+, Chrome 41.0 to 44, Firefox 30.0 to 51 and Safari 8.0 to 11
Guarding vision Android app
Supports Android 4.1 and up
Guarding vision iOS app
Supports iOS 8.0 or later. Compatible with iPhone, iPad and iPod touch
Warranty
All cameras and hard drives sold by RTC Electronics come with a 3-year warranty ensuring them free from manufacturing and material flaws. The original buyer who provides evidence of purchase is eligible for this warranty. This warranty does not cover any product failure or damage resulting from events outside RTC Electronics’ control, such as misuse, negligence, or accidental damage, inaccurate application or installation, alterations, Act of God, or ordinary wear and tear. Any removal or installation expenses are not the responsibility of RTC Electronics. Cables’ full and exclusive obligation under this warranty is to, in our exclusive discretion, either repair or replace the defective item. RTC Electronics disclaims any additional warranties, express or implied, including the implied warranty of merchantability. RTC Electronics won’t be held responsible for any losses, including lost or anticipated profits, delays, consequential damages, or other, unique damages.
