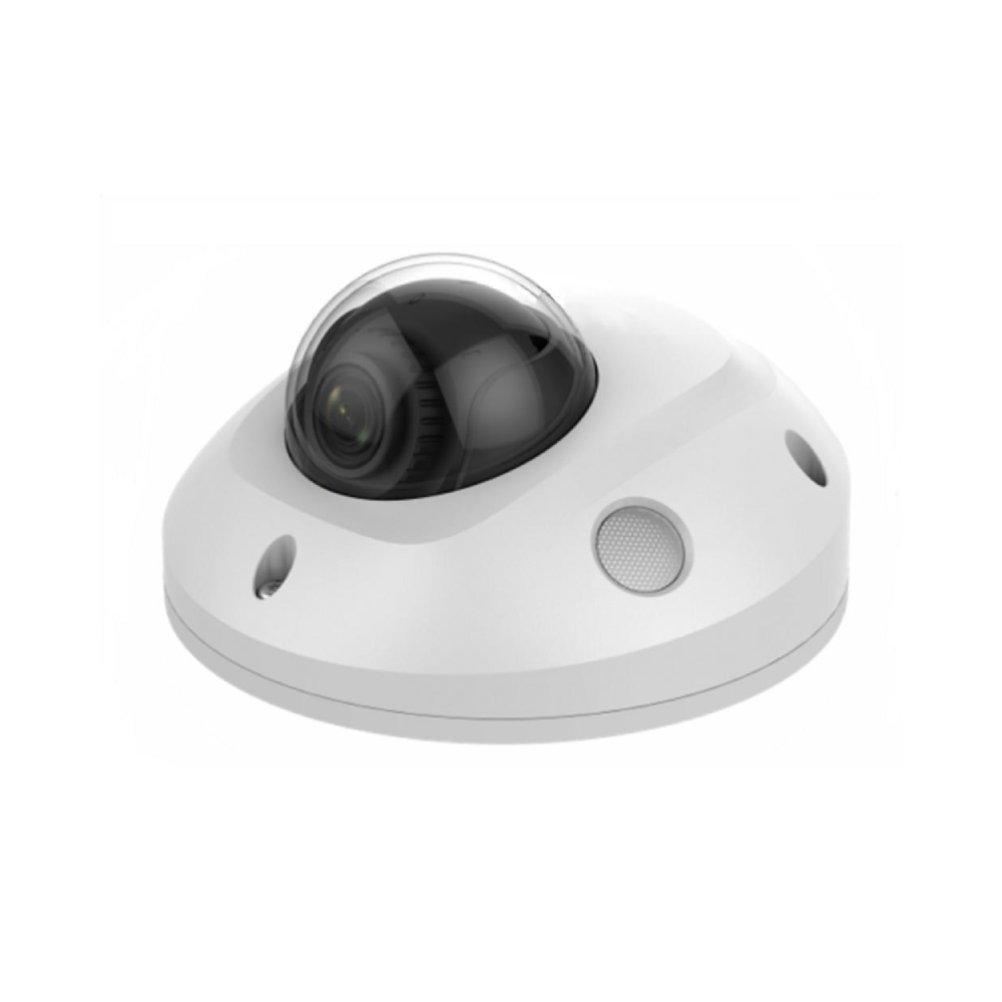

4MP DOME IP CAM + MIC
This is a 4MP IP based compact dome camera which has a maximum resolution of 2688 x 1520 at 30 fps and supports H.265 video compression technology along with built-in micro SD/SDHC/SDXC slot which supports 128 GB storage. It also comes with a built in microphone and a speaker output for voice recording and 2-way communication. It has IP67 rated housing for external use and has a 2.8mm fixed lens with horizontal field of view and offers 10 meters of night vision employing an IR cut filter and IR LEDs.
Description
- This 4MP indoor/outdoor, IP based compact dome camera provides a sharp, high definition images in daylight or nighttime settings. The camera has a 2.8mm fixed lens which delivers a 98° horizontal field of view. It also comes with a built in microphone and a speaker output for voice recording and 2-way communication. Its maximum resolution is 2688 x 1520 at 30 fps and supports H.265 video compression technology, which assures savings in bandwidth and storage. The camera is IP based with integrated PoE technology which makes for a quick and easy installation over a single CAT5e/CAT6 cable. Its housing is IP66 rated for outdoor use and has 10 meters of night vision using an IR cut filter and IR LEDs.
Features - High quality imaging with 4 MP resolution
- Efficient H.265 compression technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- Water and dust resistant (IP66) and vandal proof (IK08)
- -S: built-in microphone, audio and alarm interface available
- Mini size suitable for limited space
Application
The typical application for most security cameras networks is to connect the IP cameras to a NVR/DVR for simplified playback and additional storage space. Alternatively you can use an IP cameras as a standalone camera and not part of a network by connecting it directly to a POE switch and save the recording on a micro SD card.
Note: Dome cameras are best suited for indoor applications or outdoor applications which are sheltered from direct sunlight and any other adjusted light sources, as the curvature of the dome can cause reflections and glares on the camera lens. Turret cameras are best suited for outdoor applications which are directly exposed to the elements.
NVR Setup
Standalone Camera Setup
Camera | NC324-WDC |
| Image Sensor | 1/3″ Progressive Scan CMOS |
| Electronic Shutter Speed | 1/3 s to 1/100,000 s |
| Min. Illumination | Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 lux @(F1.6, AGC ON), 0 lux with IR |
| IR Range | Up to 10 m |
| 3‐Axis Adjustment | Pan: -30° to +30°, tilt: 0° to 75°, rotate: 0° to 360° |
| Lens Mount | M12 |
| Day & Night | IR Cut Filter |
| Slow Shutter | Yes |
| Wavelength | 850nm |
Lens | |
| Focal Length | 2.8, 4, 6 mm |
| Max Aperture | F1.6 |
| FOV | 2.8 mm, Horizontal field of view: 98°, Vertical field of view: 55°, Diagonal field of view: 114° 4 mm, Horizontal field of view: 78°, Vertical field of view: 42°, Diagonal field of view: 93° |
Video | |
| Video Bit Rate | 256 Kbps to 16 Mbps |
| Region of Interest | Support 1 fixed region for main stream and sub-stream separately |
| H.264+ | Main stream supports |
| H.265 Type | Main Profile |
| H.265+ | Main stream supports |
| Behavior Analysis | Line crossing detection, intrusion detection |
| Face Detection | Yes |
| Third Stream | 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288) 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240) |
| Sub‐Stream | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
| Main Stream | 50Hz: 25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080) 60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080) |
Audio | |
| Compression (audio) | G722.1/G711ulaw/G711alaw/G726/MP2L2/PCM |
| Audio Interface | 2 Inputs: line in, or mic in (built-in microphone), 1 Output: line out, mono sound, terminal block |
| Audio Sampling Rate | 16 kHz, 32kHz, 44.1kHz, 48kHz |
| Environment Noise Filtering | Yes |
Network | |
| Web Browser | IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+ |
| Network Storage | Support MicroSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR |
| Alarm Trigger | Motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, illegal login |
| User/Host Level | Up to 32 users 3 levels: Administrator, Operator and User |
| General Function | One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| Client | CMS, Guarding vision |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI |
| Simultaneous Live View | Up to 6 channels |
Image | |
| Max. Resolution | 2688 × 1520 |
| Digital Noise Reduction | 3D DNR |
| Wide Dynamic Range | 120dB |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser |
| Day/night Switch | Auto/Schedule/Day/Night/Triggered by Alarm In (-S model) |
| Image Enhancement | BLC/3D DNR/HLC |
Interface | |
| On-Board Storage | Built-in Micro SD/SDHC/SDXC slot, up to 128G |
| Audio Interface | 2 Inputs: line in, or mic in (built-in microphone), 1 Output: line out, mono sound, terminal block |
General | |
| Power Supply | 12 VDC ± 25%, PoE (802.3af, class 3) |
| Power Consumption | 12 VDC, 0.7A, max. 8.5W, Φ 5.5mm coaxial plug power PoE (802.3af, 36V to 57V), 0.3 A to 0.1 A, max. 10W |

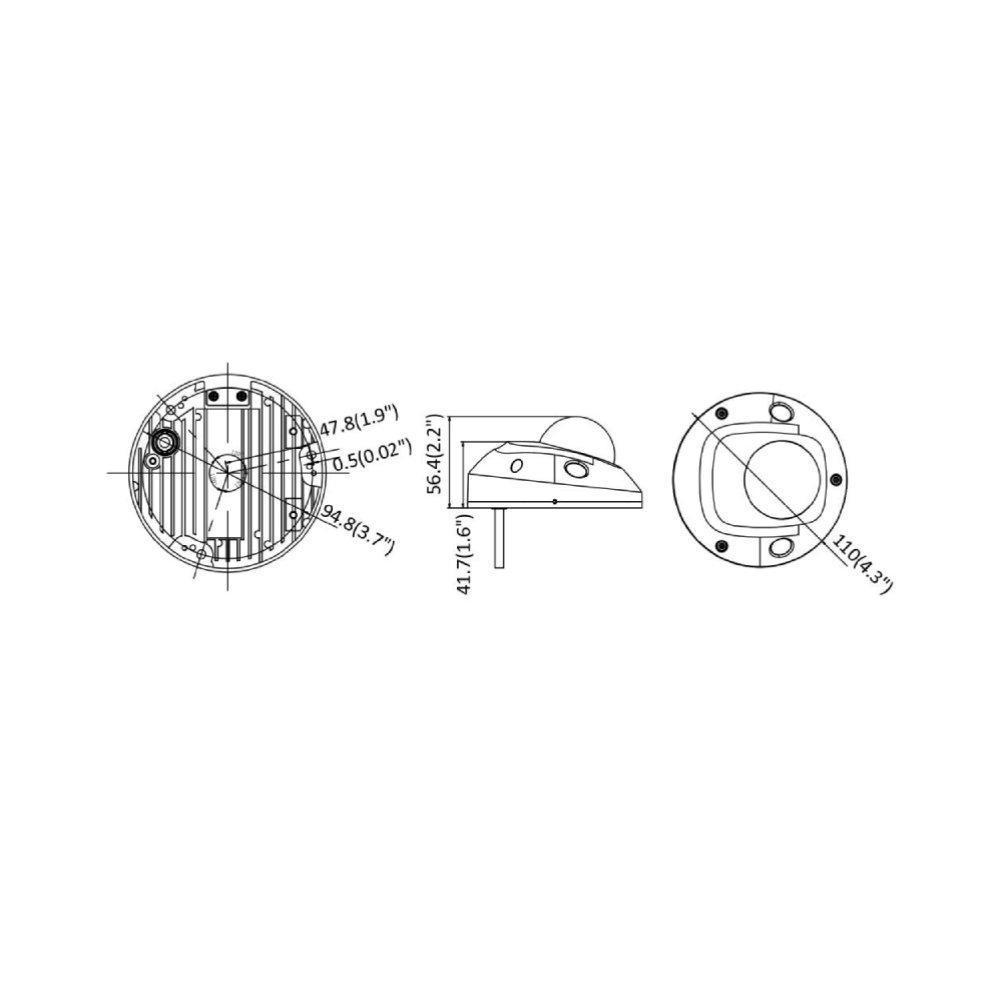

| Dimensions | Φ110 mm × 56.4 mm (Φ4.3″ × 2.2″) |
| Weight | Camera: Approx. 400 g (0.9 lb.) |
| Material | Front cover: plastic, Bottom base: metal |
| Operating Conditions | -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing) |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Protection (General) | IK08, IP66 |
Downloads
Web Portal Remote Access
Register/login with your Guarding Vision account for access to all devices in your account remotely from the browser. Supports Internet Explorer 8+, Chrome 41.0 to 44, Firefox 30.0 to 51 and Safari 8.0 to 11
Guarding vision Android app
Supports Android 4.1 and up
Guarding vision iOS app
Supports iOS 8.0 or later. Compatible with iPhone, iPad and iPod touch
Warranty
All cameras and hard drives sold by RTC Electronics come with a 3-year warranty ensuring them free from manufacturing and material flaws. The original buyer who provides evidence of purchase is eligible for this warranty. This warranty does not cover any product failure or damage resulting from events outside RTC Electronics’ control, such as misuse, negligence, or accidental damage, inaccurate application or installation, alterations, Act of God, or ordinary wear and tear. Any removal or installation expenses are not the responsibility of RTC Electronics. Cables’ full and exclusive obligation under this warranty is to, in our exclusive discretion, either repair or replace the defective item. RTC Electronics disclaims any additional warranties, express or implied, including the implied warranty of merchantability. RTC Electronics won’t be held responsible for any losses, including lost or anticipated profits, delays, consequential damages, or other, unique damages.
