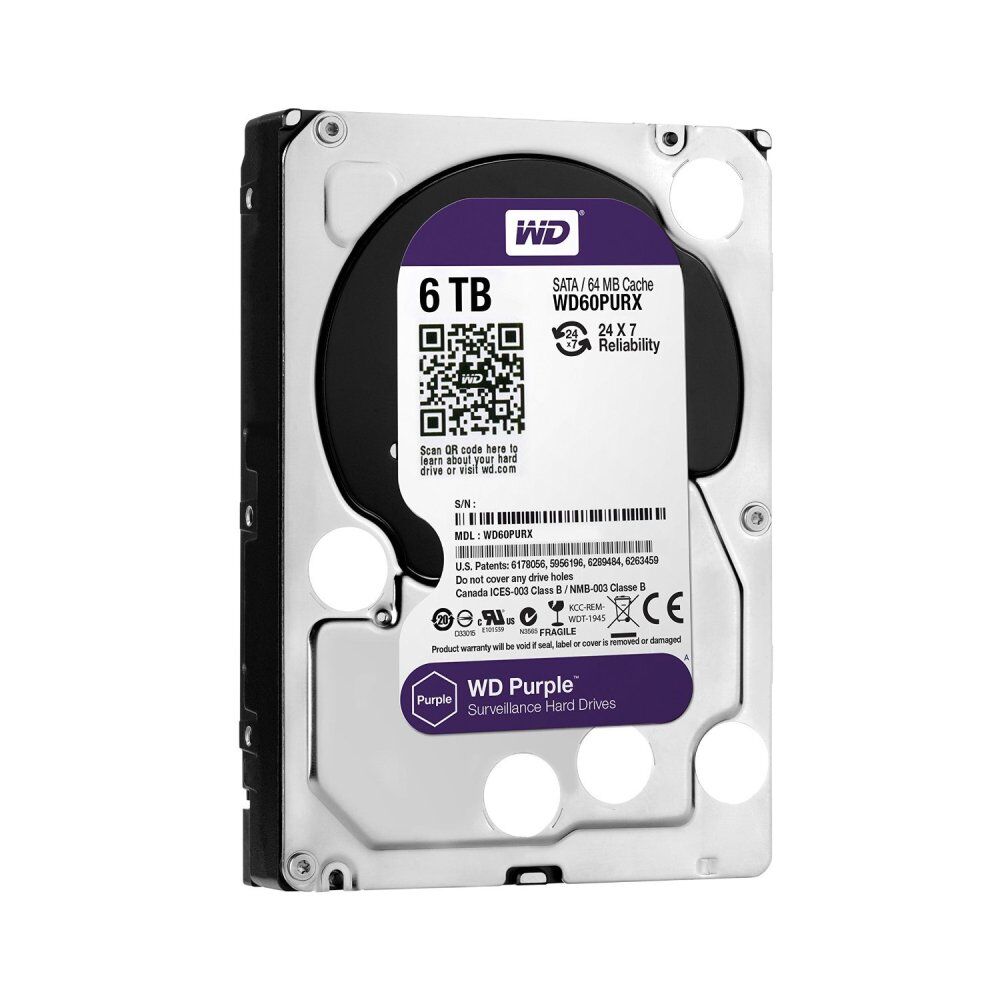

6TB 64MB IntelliPower (RPM) / SATA3 Western Digital Purple Drive
This 6TB hard disk drive is engineered to work for surveillance security systems. It is designed for high temperature, always-on, surveillance security systems to ensure reliability and quality video playback.
Description
This 6TB hard disk drive is engineered to work for surveillance security systems. It is designed for high temperature, always-on, surveillance security systems to ensure reliability and quality video playback.
Features
- Engineered specifically for surveillance security systems
- Prioritized write-operations for maximized surveillance performance
- Tuned for write-intensive, low bit-rate, high stream-count applications typical to most surveillance applications
- Reduced video frame loss
- TLER and ATA streaming support
- Optimized performance for up to 32 high-definition surveillance cameras
| Physical Characteristics | |
|---|---|
| Form Factor | 3.5 inch |
| Dimensions | ⌀ 5.7″ x 4.0″ x 1.0″ (⌀ 147 x 102 x 26mm) |
| Operating Temperature | 0°C to 65°C |
| Non-Operating Temperature | -40°C to 70°C |
| Performance | |
| Formatted Capacity | 6TB |
| Cache | 64MB |
| Data Transfer Rate | Buffer to Host – 6 GB/s Host to/from drive (sustained) – 175 MB/s |
| Hard Disk Interface | SATA |
| Rotational Speed (RPM) | IntelliPowerTM |
| Load/Unload Cycles | 300,000 |
| Non-Recoverable Read Errors per Bits Read | < 1 in 1014 |
| Power Management | |
| Average Power Requirements | Read/Write – 5.3W Idle – 4.9W Standby and Sleep – 0.4W |
| Approvals | |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 1.65 lbs [0.75 kg] |
