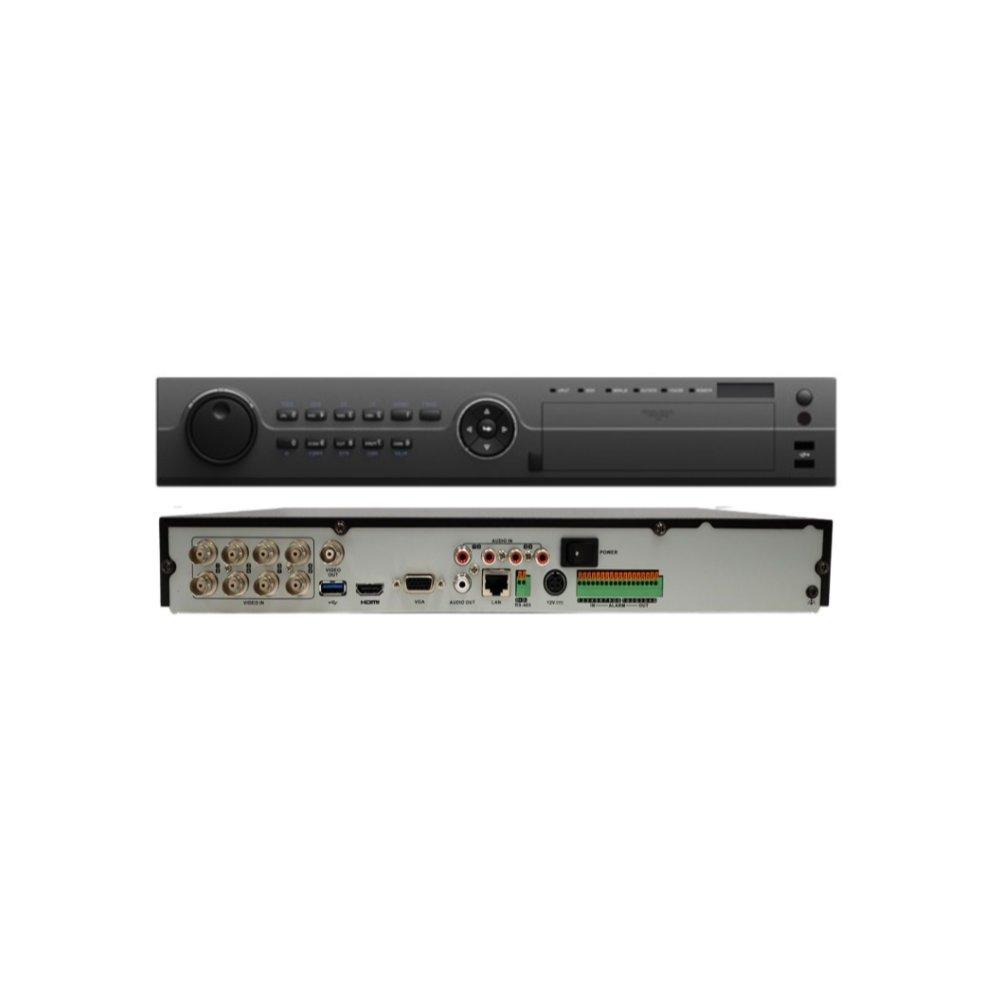

8-Channel – 2MP / HD-TVI, AHD, CVI, CVBS, DVR – 1x SATA – 2-Channel IP
This versatile DVR supports up to 8 analog or 16 IP channels, offering flexible configurations for up to 16 cameras. Compatible with HDTVI, AHD, CVI, CVBS, and IP formats, it provides reliable long-distance transmission, dual HDMI/VGA output, and efficient H.265 video compression. Ideal for adaptable and high-capacity surveillance setups (hard drive sold separately).
Description
Introducing our advanced DVR, a versatile solution for modern surveillance needs. This DVR supports up to 8 analog or 16 IP channels, enabling a maximum of 16 cameras in any combination when Enhanced IP Mode is enabled. It’s designed for high flexibility, seamlessly connecting analog cameras directly to the DVR and supporting multiple formats, including AHD, CVI, and CVBS. IP cameras connect through a PoE switch, making installation adaptable to various setups. For long-distance setups, this DVR supports video transmission up to 1200m over coaxial cable for 720p and up to 800m for 1080p, ensuring clear images even over extended distances.
Key Features:
- Efficient Compression: H.265 Pro+/H.265 Pro/H.265 video compression for optimized storage.
- Multi-Format Input: Compatible with HDTVI, AHD, CVI, CVBS, and IP video formats.
- Flexible Channel Support: Up to 8 analog or 16 IP cameras (8 MP max) for versatile configurations.
- Simultaneous Output: Dual HDMI and VGA outputs for easy display management.
- High Bandwidth: Up to 128 Mbps incoming bandwidth, configurable to match network limits.
- Massive Storage: Supports up to 10TB capacity per HDD, ideal for extended recording needs.
Note: Hard drive sold separately.
This DVR is built to handle various surveillance requirements with ease, offering an ideal blend of compatibility, distance coverage, and high-definition video quality.
| Physical Characteristics | |
|---|---|
| Dimensions | ⌀ 12.4″ x 9.5″ x 1.8″ (⌀ 315 x 242 x 45mm) |
| Operating Temperature | -10°C to 55°C (14°F to 131°F); Humidity 10% to 90% |
| Power Supply | 12V DC |
| Power Consumption | ≤ 7.5W (without hard disks) |
| Video and Audio | |
| HDMI/VGA Output | 1920 x 1080 @ 60Hz, 1280 x 1024 @ 60Hz / 1280 x 720 @ 60Hz / 1024 x 768 @ 60Hz |
| Recording Resolution | When 1080p Lite mode not enabled: 4 MP lite/3 MP/1080p/1080p lite/720p/WD1/4CIF/VGA/CIF When 1080p Lite mode enabled: 4 MP lite/3 MP/1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF |
| Frame Rate | Main stream varies depending on resolution and mode |
| Video Compression | H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 |
| Analog and HD-TVI Video Input | 8-channel, BNC interface (1.0Vp-p, 75Ω) connection |
| Supported Camera Types | HDTVI, AHD, CVI, CVBS |
| Video Bit Rate | 32 Kbps-6 Mbps |
| Stream Type | Video / Video & Audio |
| Audio Input | 1-channel |
| Audio Output | 1-channel RCA (Linear, 1㏀) |
| Audio Compression | G.711u |
| Two-way Audio | 1-channel, RCA (2.0 Vp-p 1 ㏀) |
| Network Management | |
| Remote Connections | 64 |
| Network Protocols | TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF |
| Hard Disk Driver | |
| Interface Type | 1 SATA Interface |
| Capacity | Up to 10TB per disk |
| External Interface | |
| Network Interface | 1; 10M / 100M self-adaptive Ethernet interface |
| USB Interface | 2 USB 2.0 Interfaces |
| Serial Interface | 1; standard RS-485 serial interface, half-duplex |
HDD Specifications
| Physical Characteristics | |
|---|---|
| Form Factor | 3.5 inch |
| Dimensions | ∅ 5.7″ x 4.0″ x 1.0″ (∅ 147 x 102 x 26mm) |
| Operating Temperature | 0°C to 65°C |
| Non-Operating Temperature | -40°C to 70°C |
| Performance | |
| Formatted Capacity | 1TB, 2TB, 4TB, 6TB (WD10PURX, WD20PURX, WD40PURX, WD62PURX) |
| Cache | 64MB |
| Data Transfer Rate | Buffer to Host – 6 GB/s |
| Hard Disk Interface | SATA |
| Rotational Speed | IntelliPowerTM |
| Load/Unload Cycles | 300,000 |
| Non-Recoverable Read Errors | < 1 in 10¹⁴ |
| Power Management | |
| Read/Write Power | 3.3W – 5.3W depending on capacity |
| Idle Power | 2.9W – 4.9W depending on capacity |
| Standby and Sleep Power | 0.4W |
Downloads
Web Portal Remote Access
Register/login with your Guarding Vision account for access to all devices in your account remotely from the browser. Supports Internet Explorer 8+, Chrome 41.0 to 44, Firefox 30.0 to 51 and Safari 8.0 to 11
Guarding vision Android app
Supports Android 4.1 and up
Guarding vision iOS app
Supports iOS 8.0 or later. Compatible with iPhone, iPad and iPod touch
