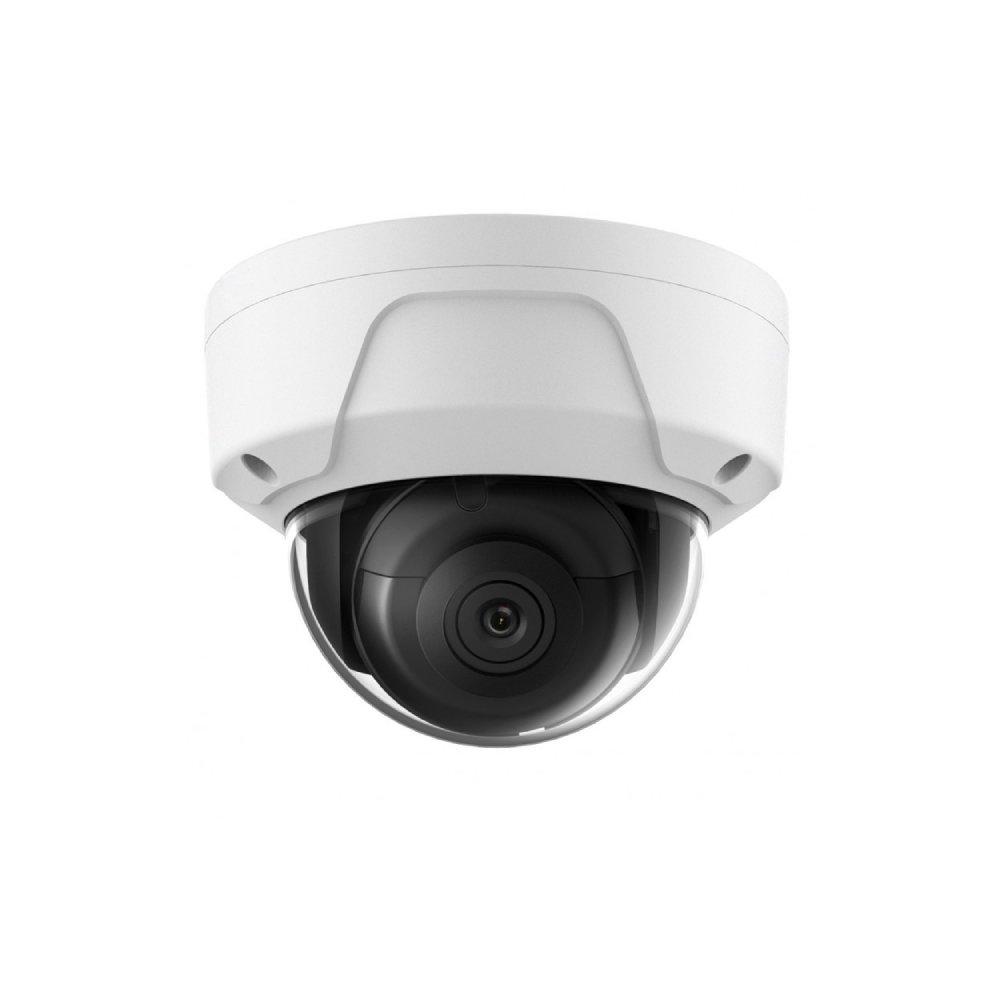

8MP Dome IP Camera – 2.8mm Fixed Lens – 30m IR Range – Outdoor IP67 Rated

8MP IP Turret/Dome Cameras SKU: RTC-328-TD-2

This is a 8MP IP based dome camera which has a maximum resolution of 3840 x 2160 at 15 fps and supportsH.265+ video compression technology along with built-in micro SD/SDHC/SDXC slot. It has IP67 rated housing for external use ,2.8mm fixed lens which delivers a 102° horizontal field of view and offers 100 feet of night vision employing an IR cut filter and IR LEDs.

color

Lens

Clear

Description

This 8MP indoor/outdoor, IP based dome camera provides a sharp, high definition images in daylight or nighttime settings. The camera is available in a 2.8mm and 6mm fixed lens which delivers a 102° and 50° horizontal field of view. Its maximum resolution is 3840 x 2160 at 15 fps and supports H.265+ video compression technology, which assures savings in bandwidth and storage. The camera is IP based with integrated PoE technology which makes for a quick and easy installation over a single CAT5e/CAT6 cable. Its housing is IP67 rated for outdoor use and has 100 feet of night vision using an IR cut filter and IR LEDs.

Features

1/2.5″ Progressive Scan CMOS
H.265+/H.265/H.264+/H.264/MJPEG
Color: 0.028 lux @(F2.0, AGC ON), 0 lux with IR
12.5/15fps(3840×2160), 20fps(3072×1728),25fps/30fps (2560×1440, 1920×1080, 1280×720)
VCA functions
3 streams
3D DNR
BLC/HLC
ICR
EXIR, up to 30m
WDR (Wide Dynamic Range)
DC12V&PoE
Built-in micro SD/SDHC/SDXC slot
Guarding Vision APP

Application

The typical application for most security cameras networks is to connect the IP cameras to a NVR/DVR for simplified playback and additional storage space. Alternatively you can use an IP cameras as a standalone camera and not part of a network by connecting it directly to a POE switch and save the recording on a micro SD card.

Note: Dome cameras are best suited for indoor applications or outdoor applications which are sheltered from direct sunlight and any other adjusted light sources, as the curvature of the dome can cause reflections and glares on the camera lens. Turret cameras are best suited for outdoor applications which are directly exposed to the elements.

NVR Setup

Standalone Camera Setup

Camera
Image Sensor	1/2.5″ (8 MP) progressive scan CMOS
Minimum Illumination	Color: 0.028 Lux @ (f/2.0, AGC on)
Shutter Speed	1/3 s to 1/100, 000 s
Slow Shutter	Yes
Auto-Iris	No
Day /Night	IR cut filter
Digital Noise Reduction	3D DNR
WDR	120dB
Angle Adjustment (Bracket)	Pan: 0° to 355°, tilt: 0° to 75°, rotation: 0° to 355°
Lens
Focal Length	2.8 mm
Aperture	F2.0
Focus	Manual
FOV	horizontal FOV: 102°, vertical FOV: 53°, diagonal FOV: 124°
Lens Mount	M12
IR
IR Range	Up to 100 ft (30 m)
Wavelength	850 nm
Compression Standard
Video Compression	Main stream: H.265+/H.265/H.264+/H.264; sub-stream: H.265+/H.265/H.264+/H.264/MJPEG
H.264 Type	Main profile/high profile
H.264+	Main stream support
H.265 Type	Main profile
H.265+	Main stream support
Video Bit Rate	32 Kbps to 16 Mbps
Smart Features
Behavior Analysis	Line crossing detection, intrusion detection
Face Detection	Yes
Region of Interest	One fixed region for main stream and sub-stream
Maximum Resolution	3840 x 2160
Main Stream	15 fps (3840 x 2160), 20fps (3072 x 1728), 30 fps (2560 x 1440, 1920 x 1080, 1280 x 720)
Sub-Stream	30 fps (640 x 480, 640 x 360, 320 x 240)
Third Stream	30 fps (1280 x 720, 640 x 360, 352 x 240)
Image Enhancement	BLC, 3D DNR
Image Setting	Saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
Target Cropping	No
Day/Night Switch	Day/night/auto/schedule
Network
Network Storage	Supports microSD/SDHC/SDXC card (128 GB), local storage, NAS (NFS,SMB/CIFS),and ANR
Alarm Trigger	Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function	One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
API	ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View	Up to 6 channels
User / Host	Up to 32 users; three levels: administrator, operator, and user
Client	iVMS-4200, Hik-Connect
Web Browser	Plug-in required live view: IE8+, Chrome 41.0 to 44, Firefox 30.0 to 51, Safari 8.0 to 11Plug-in free live view: Chrome 45.0+, Firefox 52.0+
Interface
Communication Interface	1-port RJ-45 10M/100M self-adaptive Ethernet port
On-board storage	Built-in microSD/SDHC/SDXC slot, up to 128 GB
SVC	H.264 and H.265 encoding support
Reset Button	Yes
General
Operating Conditions	-22° F to 140° F (-30° C to 60° C); humidity: 95% or less (non-condensing)
Power Supply	12 VDC ± 25%, ⌀ 5.5 mm coaxial power plug; PoE (802.3af, class 3)
Power Consumption and Current	12 VDC, 0.6 A, maximum: 7.5 W; PoE: (802.3af, 37 V to 57 V), 0.3 A to 0.2 A, maximum: 9 W
Protection Level	IP67, IK10
Material	Body: metal, bubble: plastic
Dimensions	Camera: ⌀ 4.4″ x 3.2″ (⌀ 111 x 82.4 mm)
Weight	Camera: 1.10 lbs (500 g)

Downloads

Web Portal Remote Access
Register/login with your Guarding Vision account for access to all devices in your account remotely from the browser. Supports Internet Explorer 8+, Chrome 41.0 to 44, Firefox 30.0 to 51 and Safari 8.0 to 11

Guarding vision Android app
Supports Android 4.1 and up

Guarding vision iOS app
Supports iOS 8.0 or later. Compatible with iPhone, iPad and iPod touch

Warranty

All cameras and hard drives sold by RTC Electronics come with a 3-year warranty ensuring them free from manufacturing and material flaws. The original buyer who provides evidence of purchase is eligible for this warranty. This warranty does not cover any product failure or damage resulting from events outside RTC Electronics’ control, such as misuse, negligence, or accidental damage, inaccurate application or installation, alterations, Act of God, or ordinary wear and tear. Any removal or installation expenses are not the responsibility of RTC Electronics. Cables’ full and exclusive obligation under this warranty is to, in our exclusive discretion, either repair or replace the defective item. RTC Electronics disclaims any additional warranties, express or implied, including the implied warranty of merchantability. RTC Electronics won’t be held responsible for any losses, including lost or anticipated profits, delays, consequential damages, or other, unique damages.
