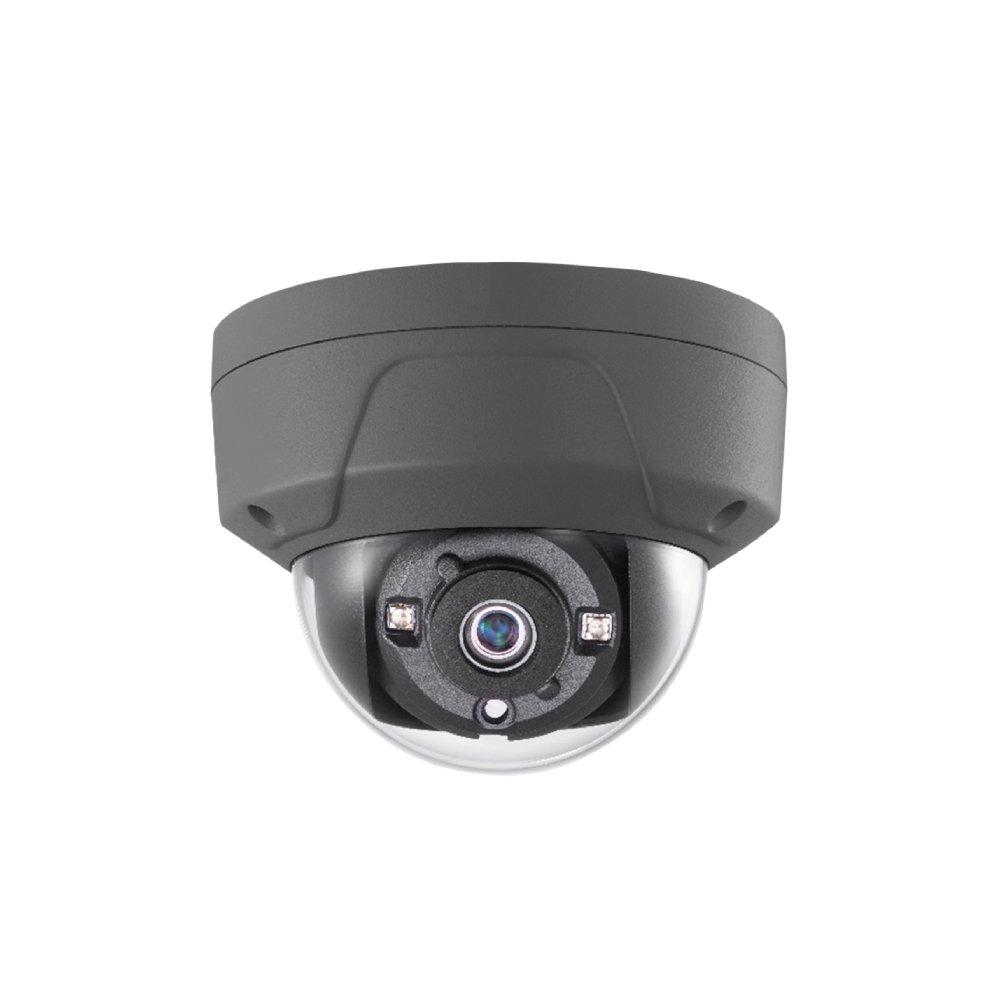

8MP Dome TVI, CVI, AHD, CVBS Camera – Fixed Lens – Smart IR with 30m Range – IP67 Rated
This 8MP indoor/outdoor, TVI based dome camera provides a sharp, high definition images in daylight or nighttime settings. The camera comes with 2.8mm or 3.6mm fixed lens which delivers 102.2° or 79° horizontal field of view respectively. Its maximum resolution is 3840 x 2160p at 15 fps. Using TurboHD technology, the high definition video analog signal can be sent over existing coaxial cable, eliminating the need to run new cables. Its housing is IP67 rated for outdoor use.
Description
This 8MP indoor/outdoor, TVI based dome camera provides a sharp, high definition images in daylight or nighttime settings. The camera comes with 2.8mm or 3.6mm fixed lens which delivers 102.2° or 79° horizontal field of view respectively. Its maximum resolution is 3840 x 2160p at 15 fps. Using TurboHD technology, the high definition video analog signal can be sent over existing coaxial cable, eliminating the need to run new cables. Its housing is IP67 rated for outdoor use.
Features
- 8 Megapixel high-performance CMOS
- Smart IR, up to 30 m IR distance
- Switchable TVI/AHD/CVI/CVBS
- IP67 outdoor rated, IK10 rated
- DWDR
- 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
- 12 VDC
- Up the Coax (UTC-C)
- 2.8mm/3.6mm Lens
Application
Note: Dome cameras are best suited for indoor applications or outdoor applications which are sheltered from direct sunlight and any other adjusted light sources, as the curvature of the dome can cause reflections and glares on the camera lens. Turret cameras are best suited for outdoor applications which are directly exposed to the elements.
Specifications
| Camera | |
|---|---|
| Image Sensor | 8.29 MP progressive scan CMOS |
| Signal System | PAL/NTSC |
| Frame Rate | TVI: [email protected], 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps CVI: [email protected], 8MP@15fps AHD: 5MP@20fps CVBS: 960H P/N |
| Resolution | 3840 (H) x 2160 (V) |
| Minimum Illumination | 0.01 Lux@(F1.2,AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/12.5 s to 1/50,000 s; NTSC: 1/15 s to 1/50,000 s |
| Lens | 2.8mm, 3.6mm fixed lens |
| Horizontal Field of View | 102.2° (2.8mm) 79° (3.6mm)\ |
| Lens Mount | M16 |
| Day and Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 355°, Tilt: 0° to 75°, Rotation: 0° to 355° |
| Synchronization | Internal synchronization |
| DWDR | 105 dB |
| Menu | |
| AGC | Yes |
| Day and Night Mode | Auto/Color/BW(Black and White) |
| White Balance | Auto/Manual |
| Backlight Compensation | Yes |
| Language | English |
| Functions | Brightness, Sharpness, DNR, Mirror, Smart IR |
| Interface | |
| Video Output | 1 HD analog output |
| Switch Button | TVI/AHD/CVI/CVBS |
| General | |
| Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F), Humidity 90% or less (non-condensation) |
| Power Supply | 12 VDC ± 25% |
| Power Consumption | Max. 5.3 W |
| Ingress Protection | IP67, IK10 |
| Material | Metal |
| IR Range | Up to 98 ft (30 m) |

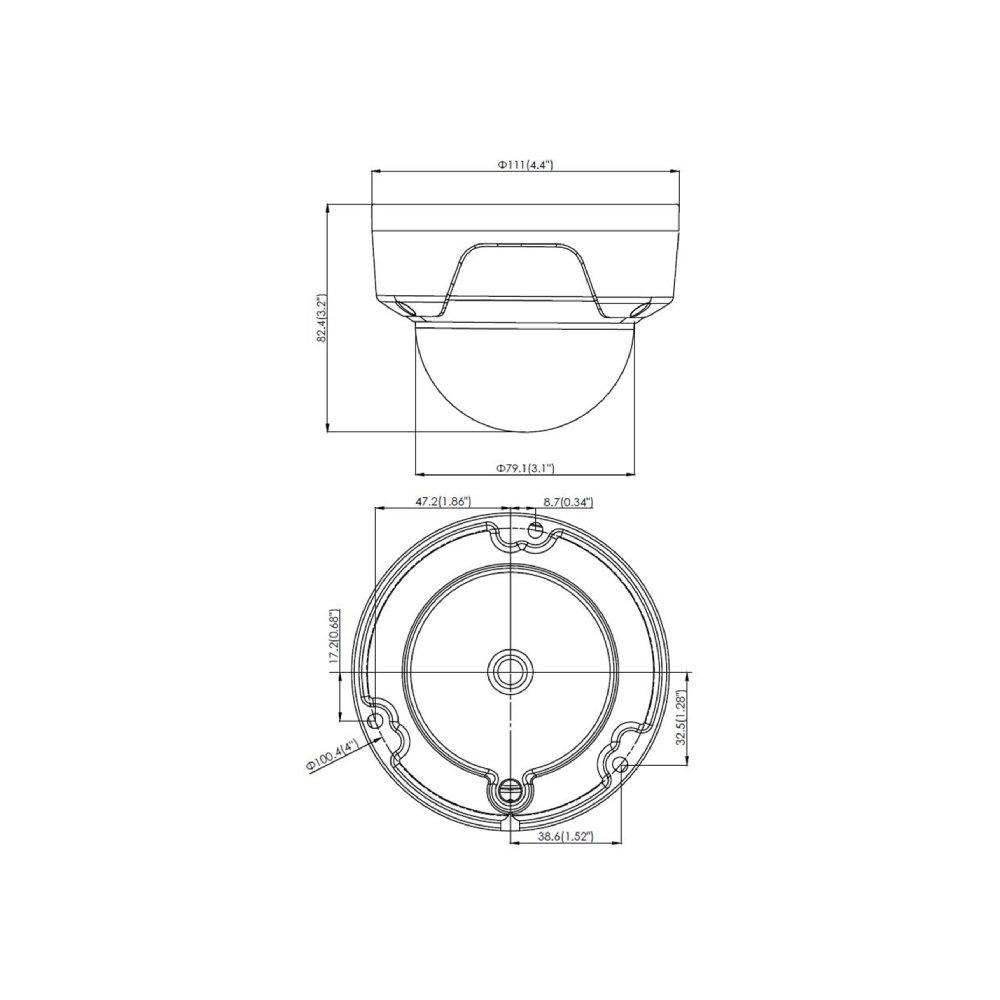

| Dimensions | Φ111 × 82.4 (Φ4.4” × 3.2”) |
| Weight | Approximately 1.09 lbs (495 g) |
Downloads
Web Portal Remote Access
Register/login with your Guarding Vision account for access to all devices in your account remotely from the browser. Supports Internet Explorer 8+, Chrome 41.0 to 44, Firefox 30.0 to 51 and Safari 8.0 to 11
Guarding vision Android app
Supports Android 4.1 and up
Guarding vision iOS app
Supports iOS 8.0 or later. Compatible with iPhone, iPad and iPod touch
Warranty
All cameras and hard drives sold by RTC Electronics come with a 3-year warranty ensuring them free from manufacturing and material flaws. The original buyer who provides evidence of purchase is eligible for this warranty. This warranty does not cover any product failure or damage resulting from events outside RTC Electronics’ control, such as misuse, negligence, or accidental damage, inaccurate application or installation, alterations, Act of God, or ordinary wear and tear. Any removal or installation expenses are not the responsibility of RTC Electronics. Cables’ full and exclusive obligation under this warranty is to, in our exclusive discretion, either repair or replace the defective item. RTC Electronics disclaims any additional warranties, express or implied, including the implied warranty of merchantability. RTC Electronics won’t be held responsible for any losses, including lost or anticipated profits, delays, consequential damages, or other, unique damages.
