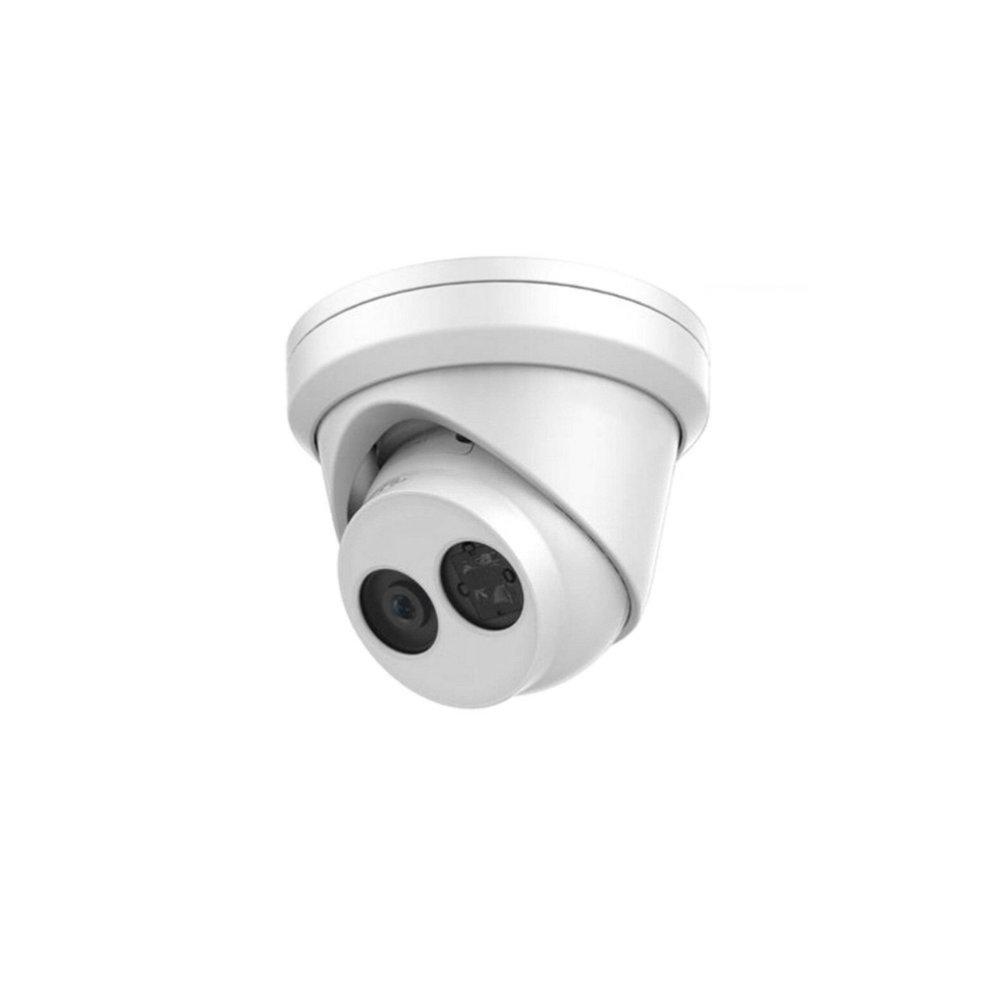

8MP Turret IP Camera – 2.8mm Fixed Lens – 30m IR Range – Outdoor IP67 Rated
This is a 8MP IP based turret camera which has a maximum resolution of 3840 x 2160 at 15 fps and supports H.265+ video compression technology along with built-in micro SD/SDHC/SDXC slot. It has IP67 rated housing for external use and has a 2.8mm or 4mm fixed lens with 102 degree horizontal field of view and offers 100 feet of night vision employing an IR cut filter and IR LEDs.
Description
- This 8MP indoor/outdoor, IP based turret camera provides a sharp, high definition images in daylight or nighttime settings. The camera is available in 2.8mm and 4mm fixed lens which delivers a 102° and 79° horizontal field of view. Its maximum resolution is 3840 x 2160 at 15 fps and supports H.265+ video compression technology, which assures savings in bandwidth and storage. The camera is IP based with integrated PoE technology which makes for a quick and easy installation over a single CAT5e/CAT6 cable. Its housing is IP67 rated for outdoor use and has 100 feet of night vision using an IR cut filter and IR LEDs.
Features - 1/2.5″ Progressive Scan CMOS
- H.265+/H.265/H.264+/H.264/MJPEG
- Color: 0.028 lux @(F2.0, AGC ON), 0 lux with IR
- 12.5/15fps(3840×2160), 20fps(3072×1728), 25fps/30fps (2560×1440, 1920×1080, 1280×720)
- VCA functions
- 3 streams
- 3D DNR
- BLC/HLC
- ICR
- IR, up to 30m
- WDR (Wide Dynamic Range)
- DC12V&PoE
- Built-in micro SD/SDHC/SDXC slot
- Guarding Vision APP
- Guarding Vision APP
Application
The typical application for most security cameras networks is to connect the IP cameras to a NVR/DVR for simplified playback and additional storage space. Alternatively you can use an IP cameras as a standalone camera and not part of a network by connecting it directly to a POE switch and save the recording on a micro SD card.
NVR Setup
Standalone Camera Setup
| Camera | |
|---|---|
| Image Sensor | 1/2.5″ (8 MP) progressive scan CMOS |
| Minimum Illumination | Color: 0.028 lux @ (f/2.0, AGC on), 0 lux with IR |
| Shutter Speed | 1/3 s to 1/100, 000 s |
| Slow Shutter | Yes |
| Auto-Iris | No |
| Day /Night | IR cut filter |
| Digital Noise Reduction | 3D DNR |
| WDR | 120dB |
| 3-Axis Adjustment | Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
| Lens | |
| Focal Length | 2.8 mm |
| Aperture | F2.0 |
| Focus | Manual |
| FOV | horizontal FOV: 102°, vertical FOV: 53°, diagonal FOV: 124° |
| Lens Mount | M12 |
| IR | |
| IR Range | Up to 100 ft (30 m) |
| Wavelength | 850 nm |
| Compression Standard | |
| Video Compression | Main stream: H.265/H.264;Sub-stream: H.265/H.264/MJPEG;Third stream: H.265/H.264 |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Main stream supports |
| H.265 Type | Main profile |
| H.265+ | Main stream support |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Smart Features | |
| Behavior Analysis | Line crossing detection, intrusion detection |
| Face Detection | Yes |
| Region of Interest | One fixed region for main stream and sub-stream |
| Image | |
| Maximum Resolution | 3840 x 2160 |
| Main Stream | 15 fps (3840 x 2160), 20fps (3072 x 1728), 30 fps (2560 x 1440, 1920 x 1080, 1280 x 720) |
| Sub-Stream | 30 fps (640 x 480, 640 x 360, 320 x 240) |
| Third Stream | 30 fps (1280 x 720, 640 x 360, 352 x 240) |
| Image Enhancement | BLC, 3D DNR |
| Image Setting | Saturation, brightness, contrast, sharpness and white balance adjustable by client software or webbrowser |
| Target Cropping | No |
| Day/Night Switch | Day/night/auto/schedule |
| Network | |
| Network Storage | Supports microSD/SDHC/SDXC card (128 GB), local storage, NAS (NFS,SMB/CIFS), and ANR |
| Alarm Trigger | Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,IGMP, 802.1X, QoS, IPv6, Bonjour |
| General Function | One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask,watermark, IP address filter |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI |
| Simultaneous Live View | Up to 6 channels |
| User / Host | Up to 32 users; three levels: administrator, operator, and user |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | Plug-in required live view: IE 8+, Chrome 41.0 to 44, Firefox 30.0 to 51, Safari 8.0 to 11Plug-in free live view: Chrome 45.0+, Firefox 52.0+ |
| Interface | |
| Communication Interface | 1-port RJ-45 10M/100M self-adaptive Ethernet port |
| On-board storage | Built-in microSD/SDHC/SDXC slot, up to 128 GB |
| SVC | H.264 and H.265 encoding support |
| Reset Button | Yes |
| General | |
| Operating Conditions | -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 25%, ⌀ 5.5mm coaxial power plug;PoE(802.3af, class 3) |
| Power Consumption and Current | 12 VDC, 0.5 A, max. 6.0 W;PoE: (802.3af, 36 V to 57 V), 0.3 A to 0.2 A, max. 7.5 W |
| Protection Level | IP67 |
| Material | Metal |
| Dimensions | Camera: ⌀ 5.0″ x 3.8″ (⌀ 127.3 x 95.9 mm) |
| Weight | Camera: 1.40 lbs (620 g) |
Downloads
Web Portal Remote Access
Register/login with your Guarding Vision account for access to all devices in your account remotely from the browser. Supports Internet Explorer 8+, Chrome 41.0 to 44, Firefox 30.0 to 51 and Safari 8.0 to 11
Guarding vision Android app
Supports Android 4.1 and up
Guarding vision iOS app
Supports iOS 8.0 or later. Compatible with iPhone, iPad and iPod touch
Warranty
All cameras and hard drives sold by RTC Electronics come with a 3-year warranty ensuring them free from manufacturing and material flaws. The original buyer who provides evidence of purchase is eligible for this warranty. This warranty does not cover any product failure or damage resulting from events outside RTC Electronics’ control, such as misuse, negligence, or accidental damage, inaccurate application or installation, alterations, Act of God, or ordinary wear and tear. Any removal or installation expenses are not the responsibility of RTC Electronics. Cables’ full and exclusive obligation under this warranty is to, in our exclusive discretion, either repair or replace the defective item. RTC Electronics disclaims any additional warranties, express or implied, including the implied warranty of merchantability. RTC Electronics won’t be held responsible for any losses, including lost or anticipated profits, delays, consequential damages, or other, unique damages.
