DisplayPort Male to HDMI Male Cable with Audio, 4K*2K 30Hz, 28AWG CL3/FT4

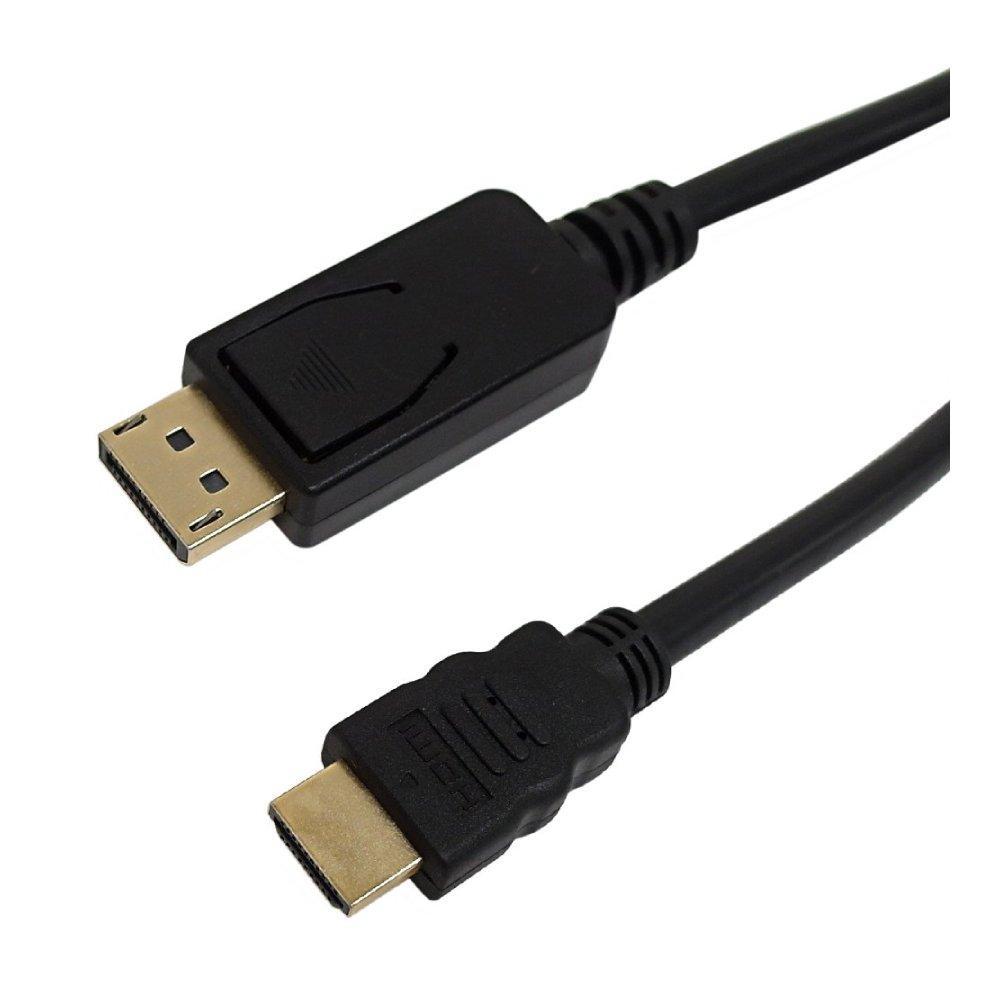

This cable has a DisplayPort male on one end and a HDMI male on the other. It is used to connect a DP source to a HDMI display. It cannot be used to connect a HDMI source to a DisplayPort Monitor.
Description
This cable has a DisplayPort male on one end and a HDMI male on the other. It is used to connect a DP source to a HDMI display. It cannot be used to connect a HDMI source to a DisplayPort Monitor.
Features:
- Supports DisplayPort1.2 and 4 lanes.
- Supports DisplayPort 1.2a input and HDMI1.4b output.
- Supports multiple color formats: RGB 6/8/10/12-bit per component (bpc) and YCbCr4:4:4, YCbCr4:2:2, 8/10/12bpc.
- Supports 10/12-bit deep color 1080p up to 2.25Gbps and 3D video formats (720p@50/59.94/60Hz, 1080i@50/59.94/60Hz, [email protected]/24Hz, 1080P@50/59.94/60Hz) up to 2.97Gbps.
- Supports HDCP bypass.
- Supports up to 8 channel LPCM, compressed audio (AC-3,DTS) and HBR audio format.
- Supports up to 192 khz audio frame rate and up to 24-bit audio sample size.
|
Physical Characteristics
|
|
|---|---|
| Color | Black |
| Connector Plating | Nickel |
| Wire Gauge | 28 AWG |
| Jacket Fire Rating | CL3/FT4 |
| Cable Type | Passive |
| Cable Outer Diameter | 7.3mm |
| Operating Temperature & Humidity | 0 ℃ to +45℃ 10% to 85 % RH (no condensation) |
| Storage Temperature & Humidity | -10℃ to +80℃ 5% to 90 % RH (no condensation) |
|
Connectors
|
|
| Connector A | HDMI Male |
| Connector B | DisplayPort Male |
|
Performance
|
|
| Bandwidth | 10.2Gbps |
| Resolution | Up to 4Kx2K (4096 x 2160) @ 30Hz |
| Vertical Frequency Range | 50/60Hz |
| Video Amplifier Bandwidth | 3.0Gbps |
| Power Consumption | 0.4W |
| 3D Support | Yes |
| DP Version | v1.2 |
| HDMI Version | v1.4 |
|
Approvals
|
|
| c(UL)us | Approved Cable |
|
Environmental
|
|
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
|
Packaging Information
|
|
| Packaging Quantity | 1 |
|
Warranty Information
|
|
| Warranty | Limited Lifetime |
| 3ft | 6ft | 10ft | 15ft | 25ft |
|---|---|---|---|---|
| 0.30 lbs | 0.35 lbs | 0.50 lbs | 1.07 lbs | 2.80 lbs |
