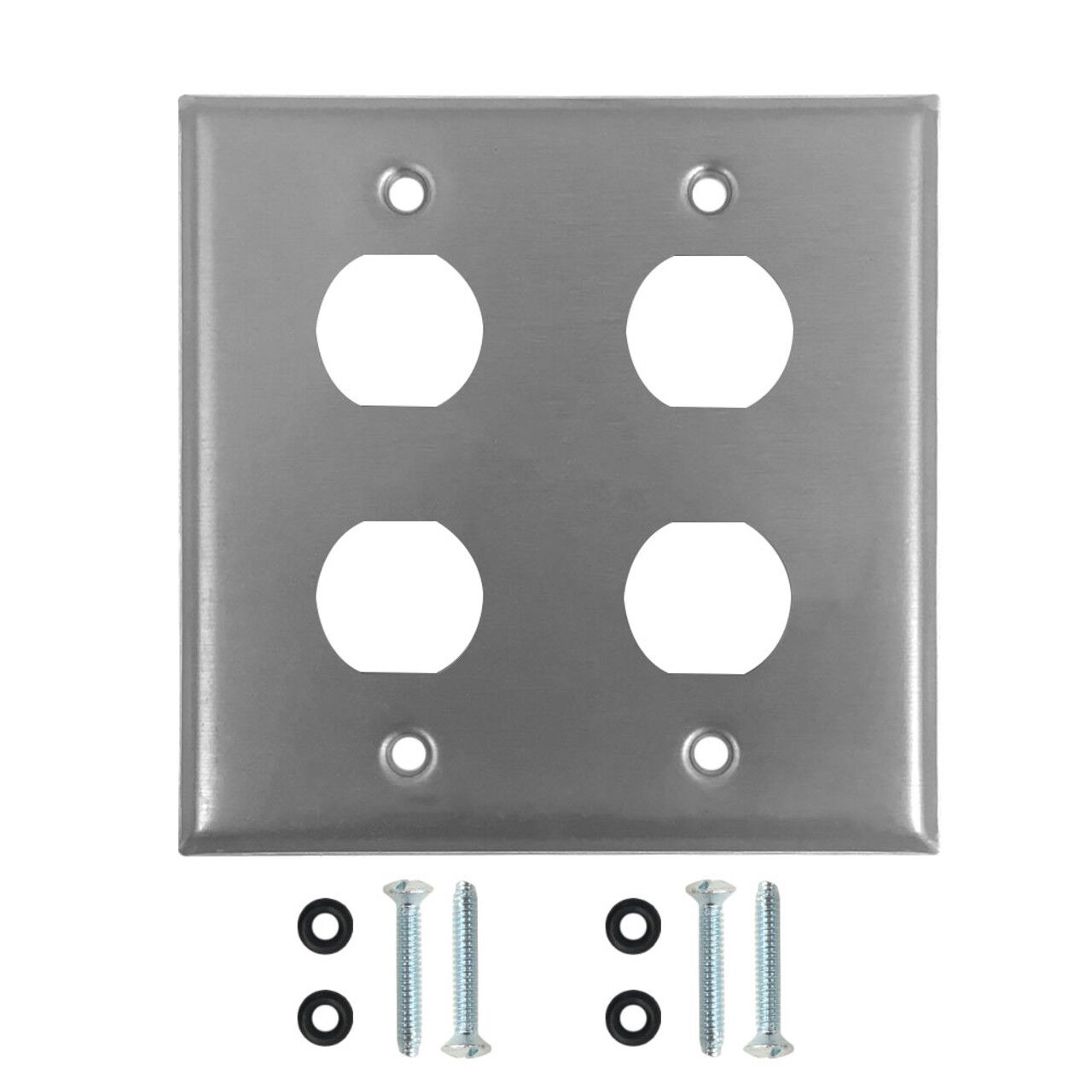

Double Gang Wall Plate – 4x Ethernet Bulkhead Hole – IP44 Rated – Stainless Steel
This double gang wall plate has four Ethernet bulkhead cutouts. It is a standard North American wall plate which accepts bulkhead jacks and couplers. It is IP44 rated to protect network parts from material greater than 1mm in diameter and water damage.
Description
This double gang wall plate has four Ethernet bulkhead cutouts. It is a standard North American wall plate which accepts bulkhead jacks and couplers. It is IP44 rated to protect network parts from material greater than 1mm in diameter and water damage.

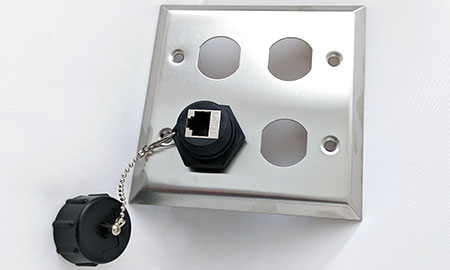

 | IP44 CompliantThis wall plate is IP44 rated and resists water and large debris. Comes with gaskets for the screw holes and plate. Use as Part of a Complete KitThis wall plate can be used as part of a complete kit to create an end-to-end IP rated channel. |
| Physical Characteristics | ||
|---|---|---|
| Color | Stainless Steel | |
| Plate Size | Double Gang | |
| Material | Stainless Steel | |
| Back Gasket | Rubber | |
| Dimensions | 115x115x6.65 mm (4.52×4.52×0.26 inch) | |
| Operating Temperature | -10°C to 60°C | |
| Storage Temperature | -40°C to 68°C | |
| Humidity | 10% ~ 90% RH | |
| Cutouts | ||
| Ethernet Bulkhead Hole | 4 | |
| Compatible Items | ||
| CN-C5E-FFS-IP68 | Cat5e RJ45 Female to RJ45 Female Shielded Bulkhead Coupler – Waterproof IP68 Rated – Black | |
| CN-C6-FFS-IP68 | Cat6 RJ45 Female to RJ45 Female Shielded Bulkhead Coupler – Waterproof IP68 Rated – Black | |
| CN-C6A-FFS-IP68 | Cat6A RJ45 Female to RJ45 Female Shielded Bulkhead Coupler – Waterproof IP68 Rated – Black | |
| JK-C5P-SBK-IP68 | Cat5e RJ45 Female to 110 Punch Down Shielded Bulkhead Coupler – Waterproof IP68 Rated – Black | |
| JK-C6P-SBK-IP68 | Cat6 RJ45 Female to 1 10 Punch Down Shielded Bulkhead Coupler – Waterproof IP68 Rated – Black | |
| Environmental | ||
| IP Rating | IP44 Rated when used in conjunction with waterproof coupler | |
| RoHS | Yes | |
| Packaging Information | ||
| Product Weight | 0.20 lbs [0.09 kg] | |
| Included in Package | 1 – Wall Plate 2 – Pair of Screws 2 – Pair of washers | |
