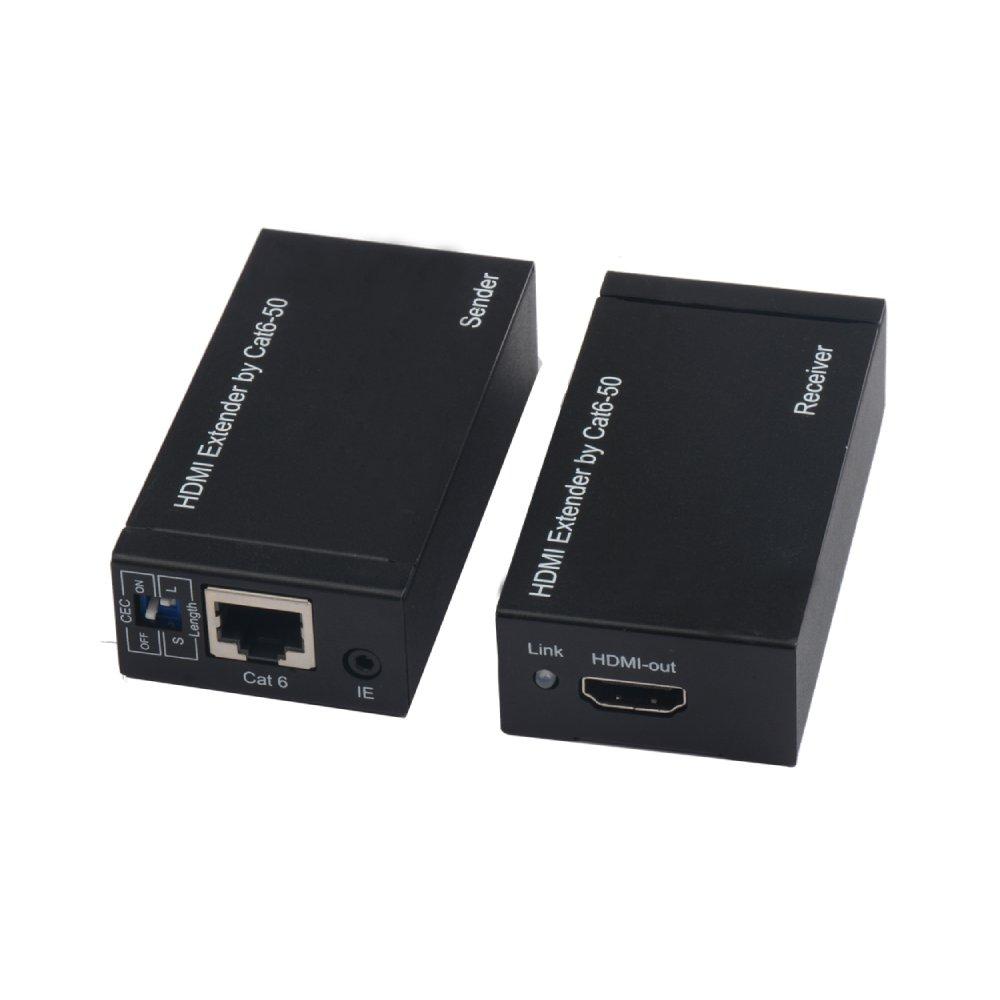

HDMI Extender 50M over single cat5e/6
This HDMI Extender by CAT5 x1 uses one piece of UTP cable with cross stand inside to extend the HDTV display up to 50 meters for 1080p. It not only breaks the limitation of the HDMI cable transmission length，but also has more flexibility and convenience in cable construction.
Description
This HDMI Extender by CAT5 x1 uses one piece of UTP cable with cross stand inside to extend the HDTV display up to 50 meters for 1080p. It not only breaks the limitation of the HDMI cable transmission length，but also has more flexibility and convenience in cable construction. It is equipped with HDMI (high definition multimedia interface) connector and is capable of supporting DVI (digital visual interface) equipment when used with an HDMI to DVI Adapter, providing greater flexibility and options when integrating several home theater components.This product offers solutions for residential consumers: HDTV retail and show site, HDTV, STUB, DVD and Projector factories, noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
FEATURES
- Each set includes one transmitter and one receiver
- Easy installation, no need setting
- Transmit over 50m single Cat5e/6 without signal loss
- The CAT5e/6 follows standard of IEEE-568B
- Support high definition resolution up to Full HD 1080p
- Support Dolby True-HD, DTS-HD Master audio
- EDID reading and saving from display
- Support bandwidth up to 6.75 Gbps
- Support deep color up to 36 bit
- Support 3D
- DC 5V 1A power supply
- Size: L83xW48xH25mm
- Transmit Over 50m single CAT5e/6 without signal loss
| Input Video Signal | 0.5 -1.0 volts p-p |
| Output Video | HDMI |
| DTV/HDTV format supported | 480i/576i/480p/576p/720p/1080i/1080p |
| UTP cable with cross stand inside | 50M for1080p |
| Video Amplifier Bandwidth | 1.65Gpbs/165MHz |
| Vertical FrequencyRange | 50/60Hz |
| Interlaced Resolutions(50&60Hz) | 480i,576i,1080i |
| Progressive Resolutions(50&60Hz) | 480p,576p,720p,1080p |
| Size (L-W-H) | 100×65×25.5MM |
| Weight (Net) | 385g |
| Limited Warranty | 1 Year Parts and Labor |
| Operating Temperature | 0℃ to +70℃ |
| Operating Humidity | 10% to 85 % RH (no condensation) |
| Storage Temperature | -10℃ to +80℃ |
| Storage Humidity | 5% to 90 % RH (no condensation) |
| Power Supply | 5V DC@2A |
| Power consumption (Max) | 5W |
| Regulatory Approvals | FCC,CE,UL |
| AC Power Adapter | US standard,UK standard and so on |
| User Manual | English Version |
