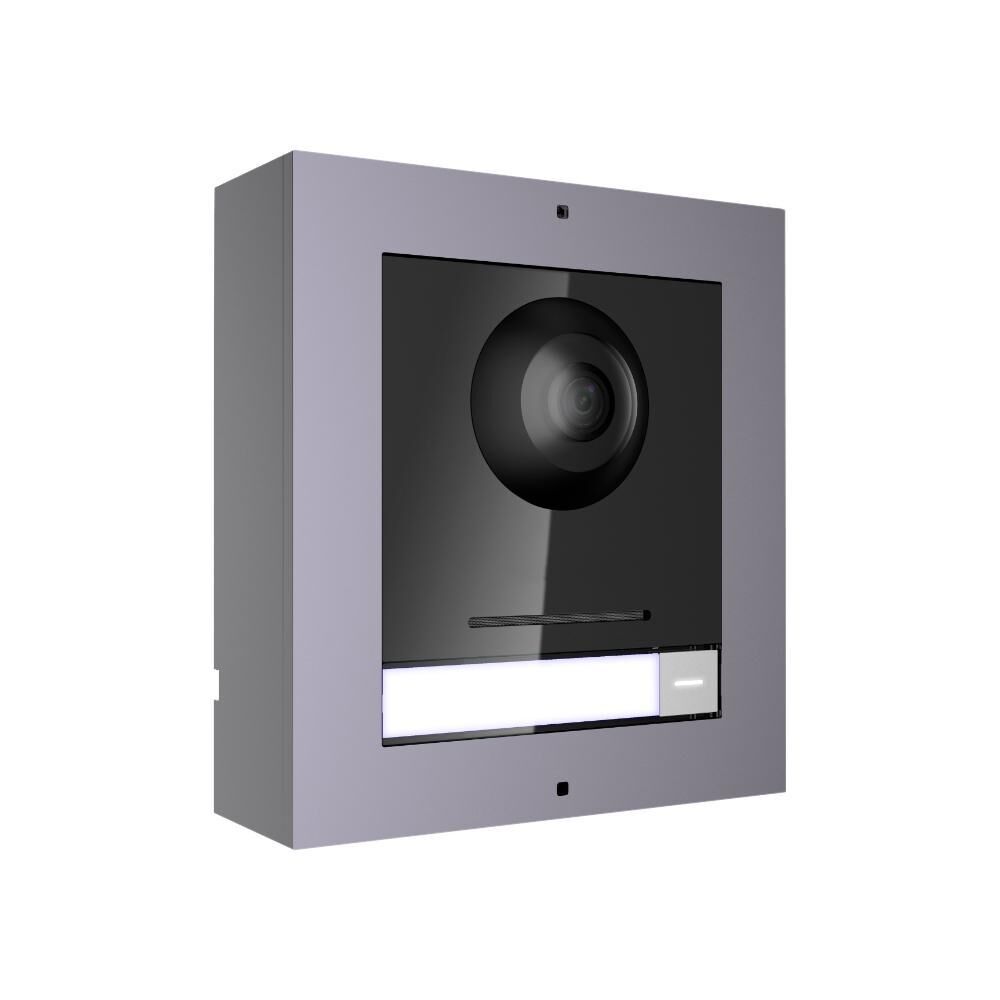

IP Video Doorbell – Modular Door Station – 2MP – Wired PoE – Two-Way Communication – IR – IP65
This 2MP IP video door station provides video intercom and access control functionality. It has 2MP fisheye camera IR supplement for low light illumination and includes two way voice communication. It has a 96° vertical and 180° horizontal field of view.
Description
- Provides video intercom and access control functionality
- Embedded MCU processor and Linux OS
- Simple operation via physical button
- Integrated 2MP fisheye camera IR supplement for low-light illumination
- Image enhancements include backlight compensation, digital noise reduction, and wide dynamic range
- Noise suppression and echo cancellation for clear sound
- H.264 video compression
- 100M self-adaptive
- Ethernet Tampering alarm
- Name tag customization
- Supports sub-module access (eight maximum)
- IP65 rated
- ONVIF compliant FCC, CE, and cUL certified
Specifications
| System Parameters | |
|---|---|
| Operating System | Embedded Linux operation system |
| ROM | 16 MB |
| RAM | 256 MB |
| CPU | Embedded MCU Processor |
| Display Parameters | |
| Screen Size | / |
| Operation Method | Not supported |
| Type | / |
| Resolution | / |
| Video Parameters | |
| Lens | 1 |
| Resolution | Main stream: 1920 x 1080 |
| FOV | Horizontal: 180° Vertical: 96° |
| WDR | Supported |
| Supplement Light | IR supplement |
| Video Compression | H.264 |
| Audio Parameters | |
| Audio Compression Standard | G.711 U |
| Audio Input | Built-in omnidirectional microphone |
| Audio Output | Built-in loudspeaker (More than 85 dB within 20 cm) |
| Audio Compression Bitrate | 64 Kbps |
| Audio Quality | Noise suppression and echo cancellation |
| Volume Adjustment | Adjustable |
| Capacity | |
| Fingerprint Capacity | 0 |
| User Capacity | 2000 |
| Face Capacity | 0 |
| Linked Indoor Station | 500 |
| Event Capacity | / |
| Holiday Group | 16 |
| Network Parameters | |
| Communication Protocol | TCP/IP, RTSP |
| Wired Network | 10/100 Mbps self-adaptive Ethernet |
| Wi-Fi Standard | / |
| Bluetooth Version | / |
| 3G/4G Standard | / |

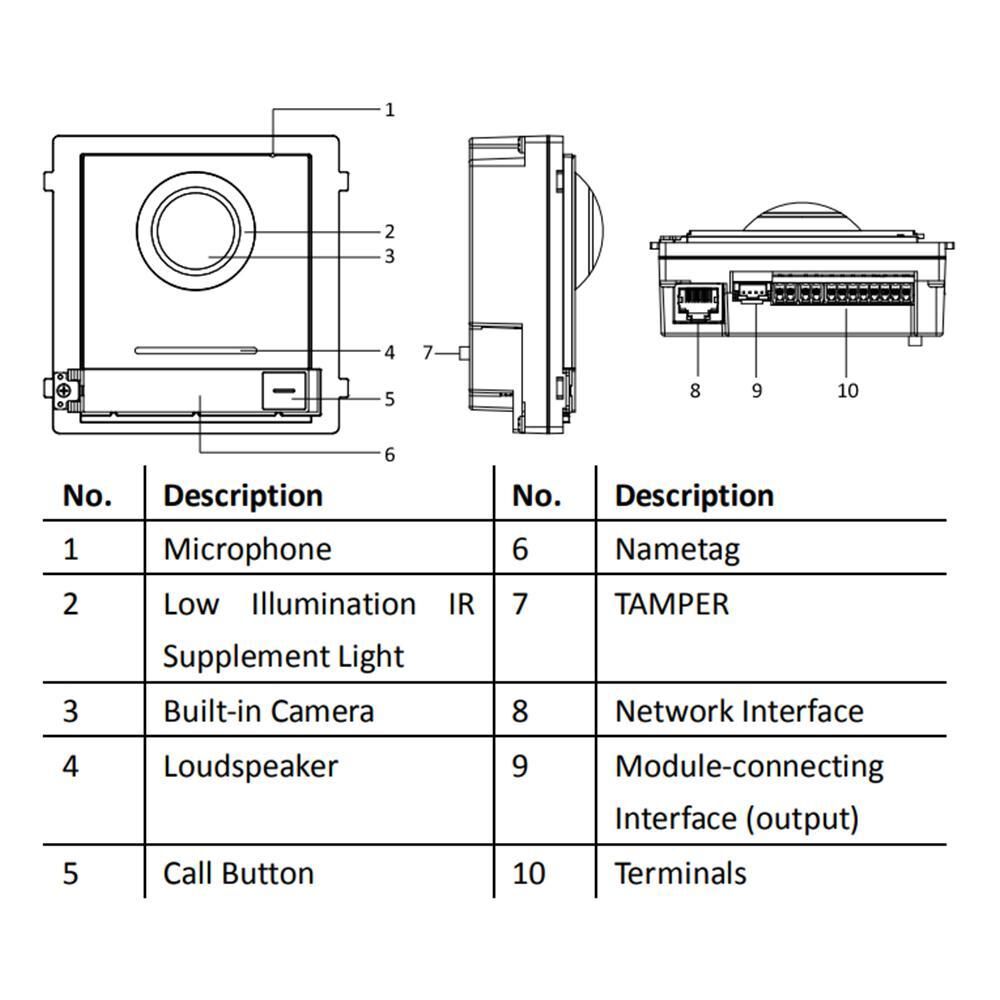

| Device Interfaces | |
| Alarm Input | 4 |
| Network Interface | 1 |
| TAMPER | 1 |
| Exit Button | 2 |
| RS-485 | 1 |
| USB | 0 |
| Wiegand | 0 |
| TF Card | 0 |
| Alarm Output | 0 |
| Lock Control | 2 |
| Door Contact Input | 2 |
| Power Interface | 1 |
| Performances | |
| Multi-Factor Authentication | 200 |
| General | |
| Button | 1 |
| Working Temperature | -40°C to 55°C (-40°F to 131°F); humidity: 10% to 95% |
| Installation | Surface Mounting |
| Indicator | / |
| Protective Level | IP65 |

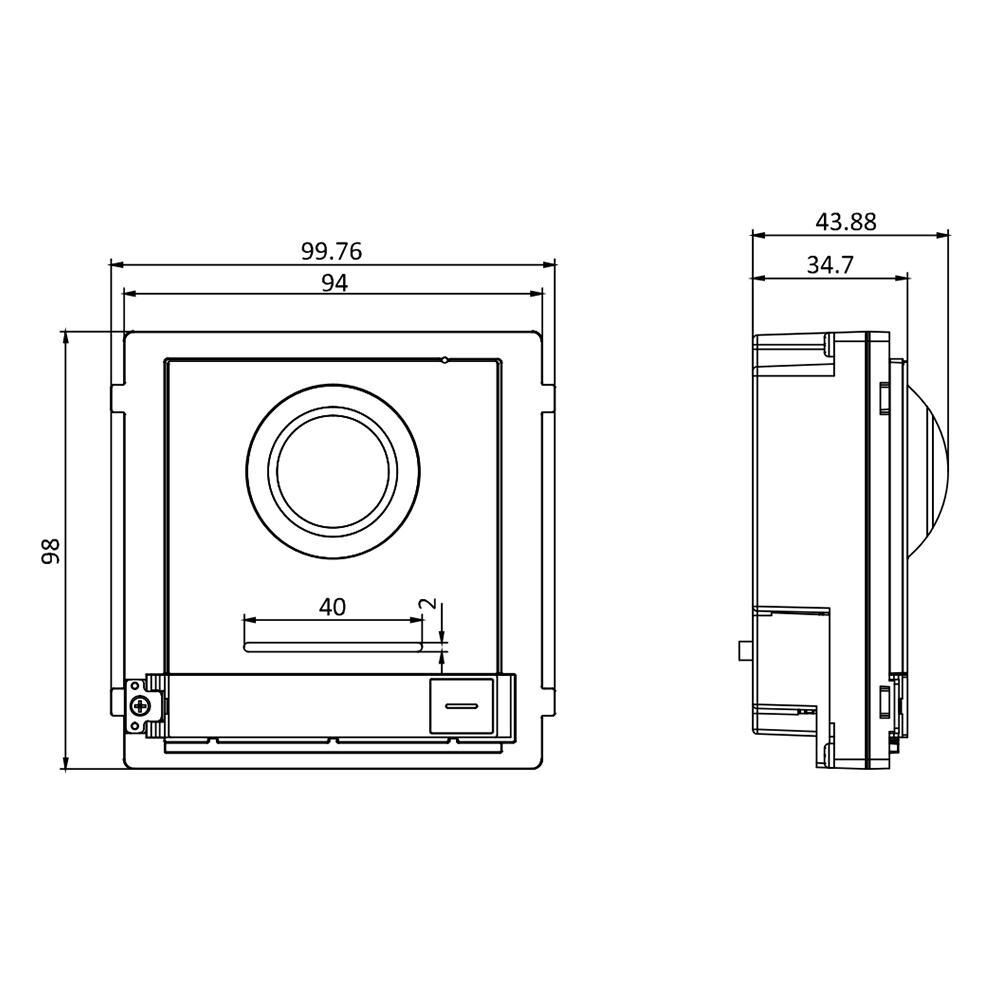

| Dimensions | ⌀ 3.86″ x 3.93″ x 1.73″ (⌀ 98 x 99.8 x 43.9mm) |
| Battery | / |
| Application Environment | Outdoor |
| Power Consumption | 4W |
| Languages | English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian |
| Weight | 1.22 lbs (554 g) |
Downloads
Web Portal Remote Access
Register/login with your Guarding Vision account for access to all devices in your account remotely from the browser. Supports Internet Explorer 8+, Chrome 41.0 to 44, Firefox 30.0 to 51 and Safari 8.0 to 11
Web Portal Remote Access
Register/login with your Guarding Vision account for access to all devices in your account remotely from the browser. Supports Internet Explorer 8+, Chrome 41.0 to 44, Firefox 30.0 to 51 and Safari 8.0 to 11
Guarding vision Android app
Supports Android 4.1 and up
