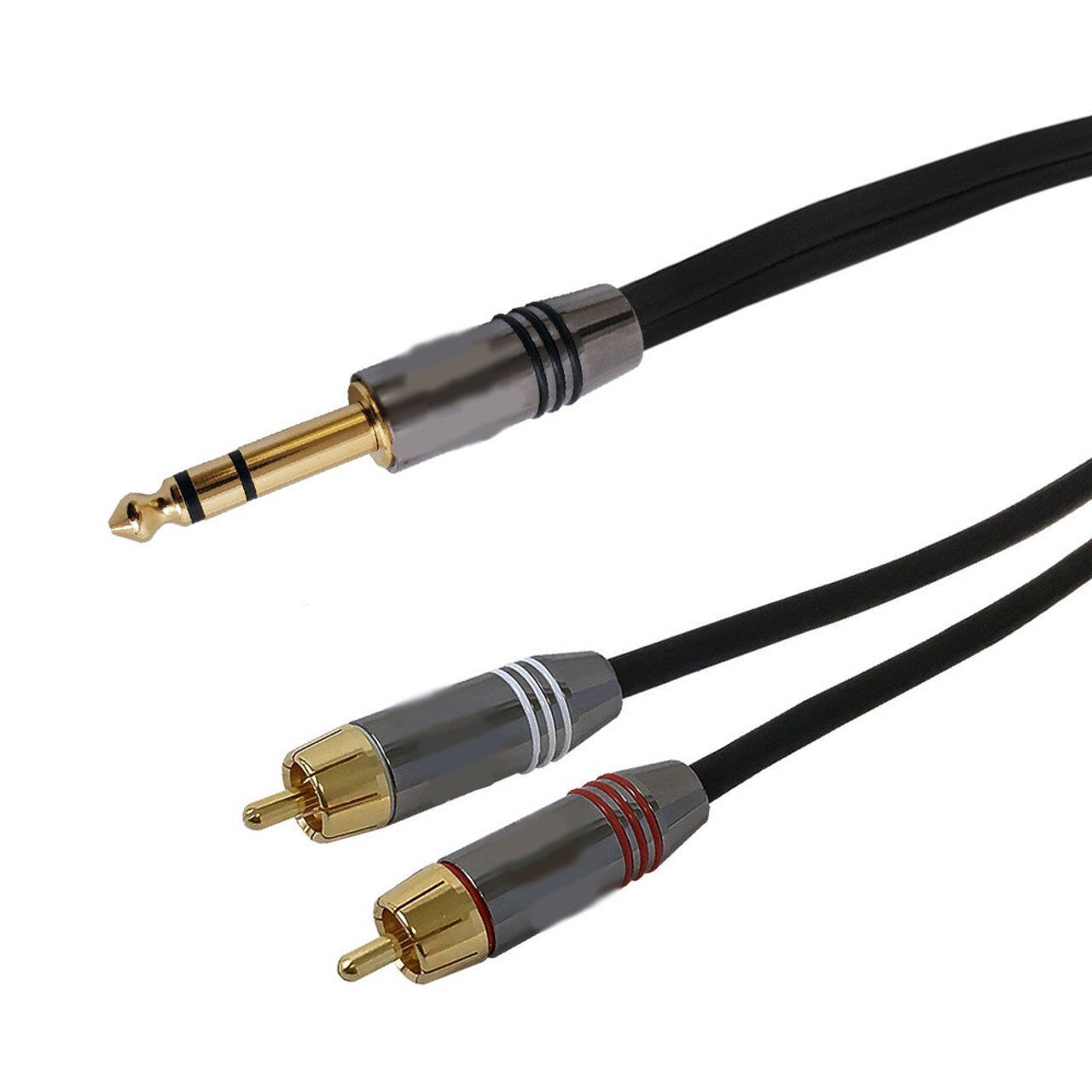

Premium 1/4 inch TRS Male to 2x RCA Male Audio Cable FT4
Description
ale on one end and two RCA males on the other. It is typically used to connect a mixing console to an effects processor.
- Hi-flex cable is used to capture all highs & lows for optimumaudio performance
- Braided shield surrounds center conductors for maximum EMI/RFI noise rejection therefore maintaining the cleanest signal possible
- Multi-stranded copper center conductors and a durable cable jacketis ultra flexible to maximize mobility
- High quality, gold plated shielded connectors allows for optimum connectivity and maintains a clean signal integrity
- FT4 riser fire rated jacket for in-wall use
- Lead Free, “silver laced” solder is used in order to reduce loss and maximize conductivity
|
Physical Characteristics
|
|
|---|---|
| Color | Black |
| Connector Plating | Gold |
| Cable Diameter | 5.0mm x 10.0mm |
| Wire Gauge | 22AWG |
| Jacket Material | PVC – Polyvinyl Chloride |
| Fire Rating | FT4 (Riser CMR) |
| Cable Shielding | 95% Bare Copper Braid |
| Strain Relief | Metal Shell |
|
Connectors
|
|
| Connector A | 1 – 1/4 inch TRS Male |
| Connector B | 2 – RCA Male – Red |
| Connector C | 2 – RCA Male – White |
|
Approvals
|
|
| cUL | Yes – Cable |
|
Packaging Information
|
|
| Packaging Quantity | 1 Cable |
|
Warranty Information
|
|
| Warranty | Lifetime Limited |
Cable Weights
| 1.5ft | 3ft | 6ft | 10ft | 15ft | 25ft | 35ft | 50ft |
|---|---|---|---|---|---|---|---|
| 0.20 lbs | 0.40 lbs | 0.55 lbs | 0.75 lbs | 1.00 lbs | 1.50 lbs | 2.00 lbs | 2.75 lbs |
