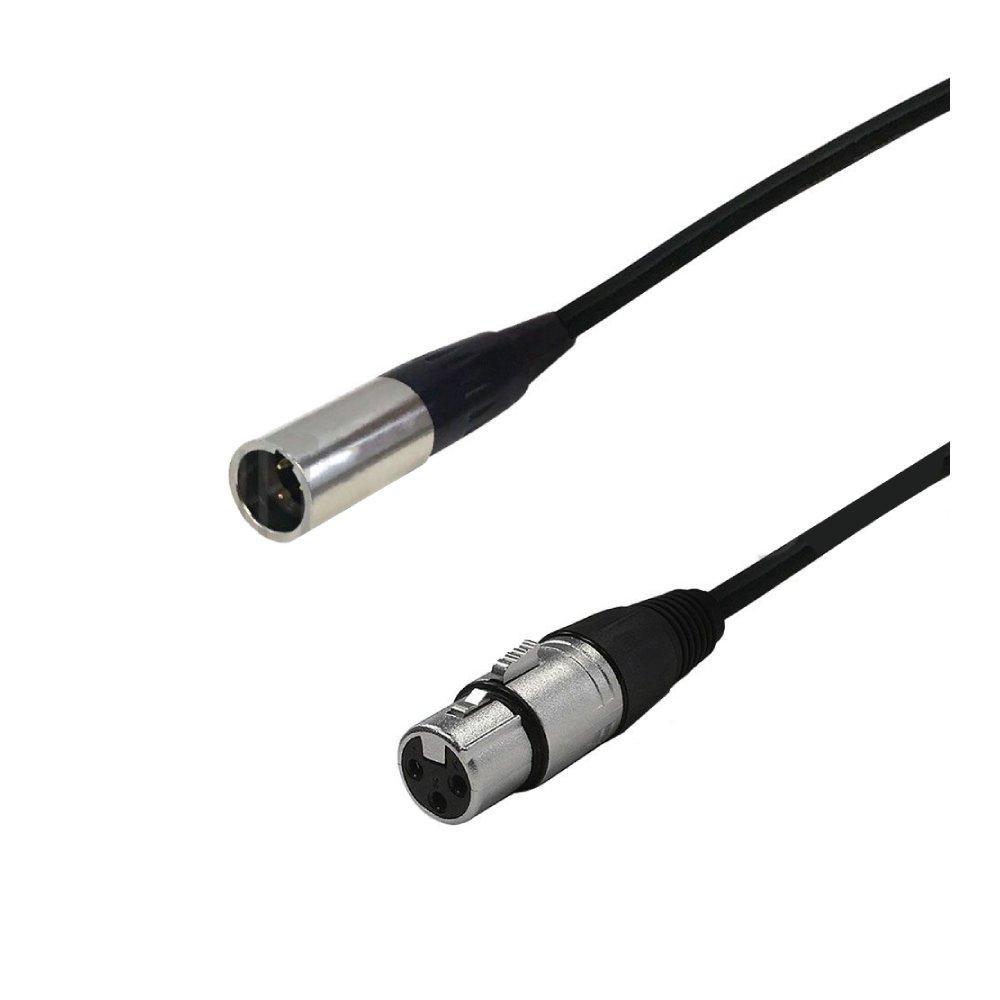

Premium Balanced mini-XLR Male to mini-XLR Female Cable
Description
This premium stereo audio cable has a Mini-XLR male connection on one end and a Mini-XLR female connection on the other end. It is typically used to connect microphones to wireless audio devices or as a condenser microphone cable.
- Hi-flex balanced cable is used to capture all highs & lows for optimum audio performance
- Spiral shield surrounds center conductors for maximum EMI/RFI noise rejection therefore maintaining the cleanest signal possible
- Multi-stranded copper center conductors and a durable cable jacket is ultra Flexible to maximize mobility
- High quality, gold plated, heavy duty shielded connectors optimizes connectivity and maintains a clear signal integrity
- Lead Free, “silver laced” solder is used in order to reduce loss and maximize conductivity
|
Physical Characteristics
|
|
|---|---|
| Color | Black |
| Connector Plating | Black |
| Contact Plating | Gold |
| Cable Diameter | 2.8mm |
| Wire Gauge | 28AWG |
| Jacket Material | PVC – Polyvinyl Chloride |
| Fire Rating | FT4 (Riser CMR) |
| Cable Shielding | 85% Spiral Shield, 100% Aluminum Mylar Foil |
| Strain Relief | Metal Shell |
|
Connectors
|
|
| Connector A | 1 – Mini-XLR Male |
| Connector B | 1 – Mini-XLR Female |
|
Approvals
|
|
| c(UL)us | Yes – Cable |
|
Environmental
|
|
| RoHS | Yes |
|
Package Information
|
|
| Package Quantity | 1 |
|
Warranty Information
|
|
| Warranty | Limited Lifetime |
Cable Weights
| 3ft | 6ft | 10ft | 15ft | 25ft | 35ft | 50ft | 75ft | 100ft |
|---|---|---|---|---|---|---|---|---|
| 0.35 lbs | 0.45 lbs | 0.55 lbs | 0.70 lbs | 1.00 lbs | 1.30 lbs | 1.75 lbs | 2.50 lbs | 3.25 lbs |
