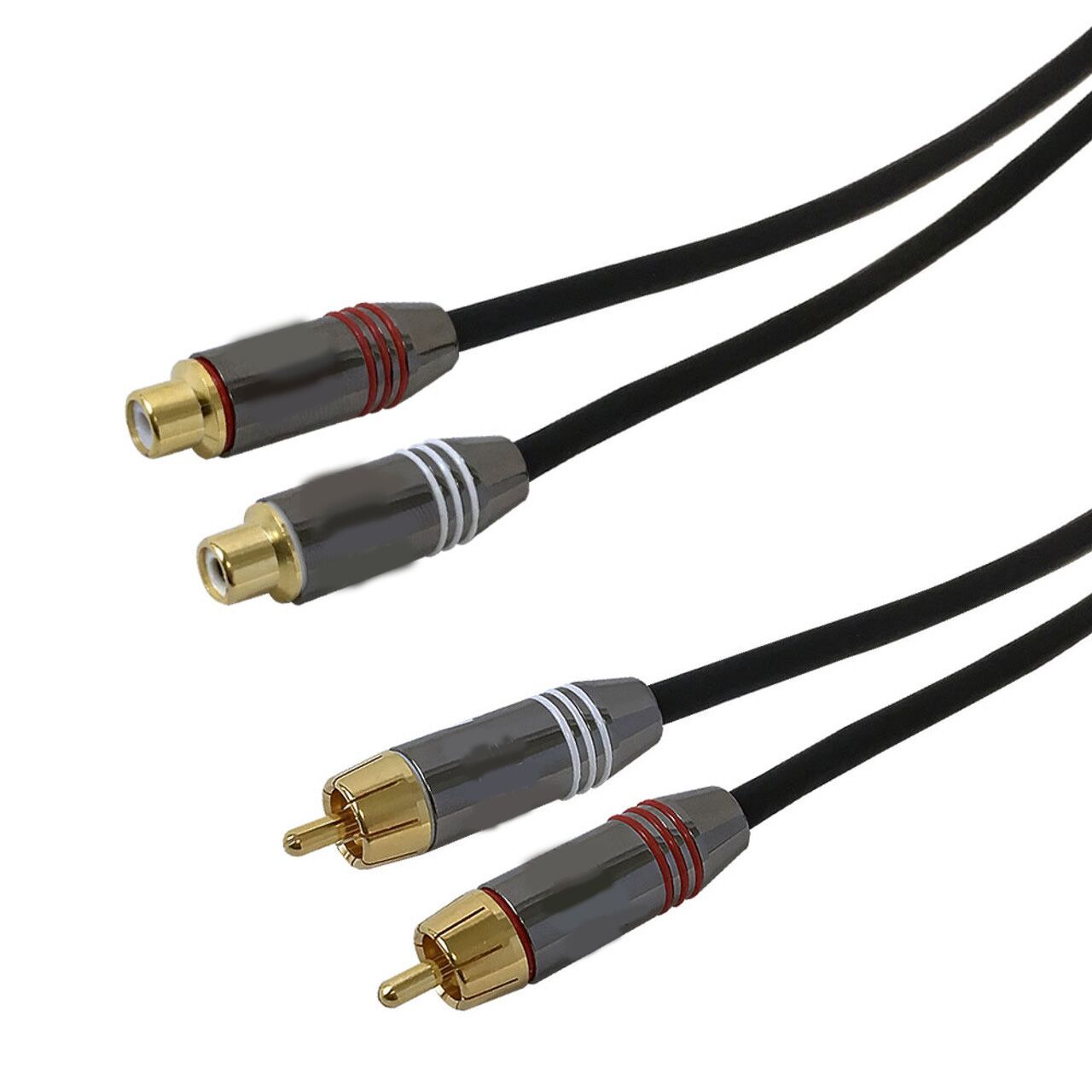

Premium Dual Channel RCA Male to Female Audio Cable
Description
This cable has RCA red and white male connectors on one end and RCA red and white female connectors on the other. It is typically used to extend a left/right analog audio cable.
- 22 gauge, heavy duty cable is used to capture all highs & lows for optimum audio performance
- Constructed of “siamese” cable for easy installation of left and right audio
- Constructed of low-loss, stranded 22 gauge OFHC (Oxygen Free Copper) with a foam polyethelene insulation around center conductors
- 95% braided copper shield surrounds dielectric for maximum EMI/RFI noise rejection therefore maintaining the cleanest signal possible
- Multi-stranded copper center conductors allows for extra flexible cables
- High quality, 24K gold plated shielded connectors allows for optimum connectivity and maintains a clean signal integrity
- FT4 riser fire rated jacket for in-wall use
- Lead Free, “silver laced” solder is used in order to reduce loss and maximize conductivity
| Physical Characteristics | |
|---|---|
| Length | 1.5 foot |
| Color | Red/White |
| Connector Plating | Gold |
| Cable Diameter | 5.00mm x 10.0mm |
| Wire Gauge | 22AWG |
| Jacket Material | PVC – Polyvinyl Chloride |
| Fire Rating | FT4 (Riser CMR) |
| Cable Shielding | 95% Bare Copper Braid |
| Strain Relief | Metal Shell |
| Connectors | |
| Connector A | RCA Red/White Male |
| Connector B | RCA Red/White Female |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Materials | Yes |
| Package Information | |
| Package Quantity | 1 |
| Product Weight | 0.45 lbs [0.20 kg] |
| Warranty Information | |
| Warranty | Limited Lifetime |
Only logged in customers who have purchased this product may leave a review.
There are no reviews yet.
