RT-XLR-FMM-01.5

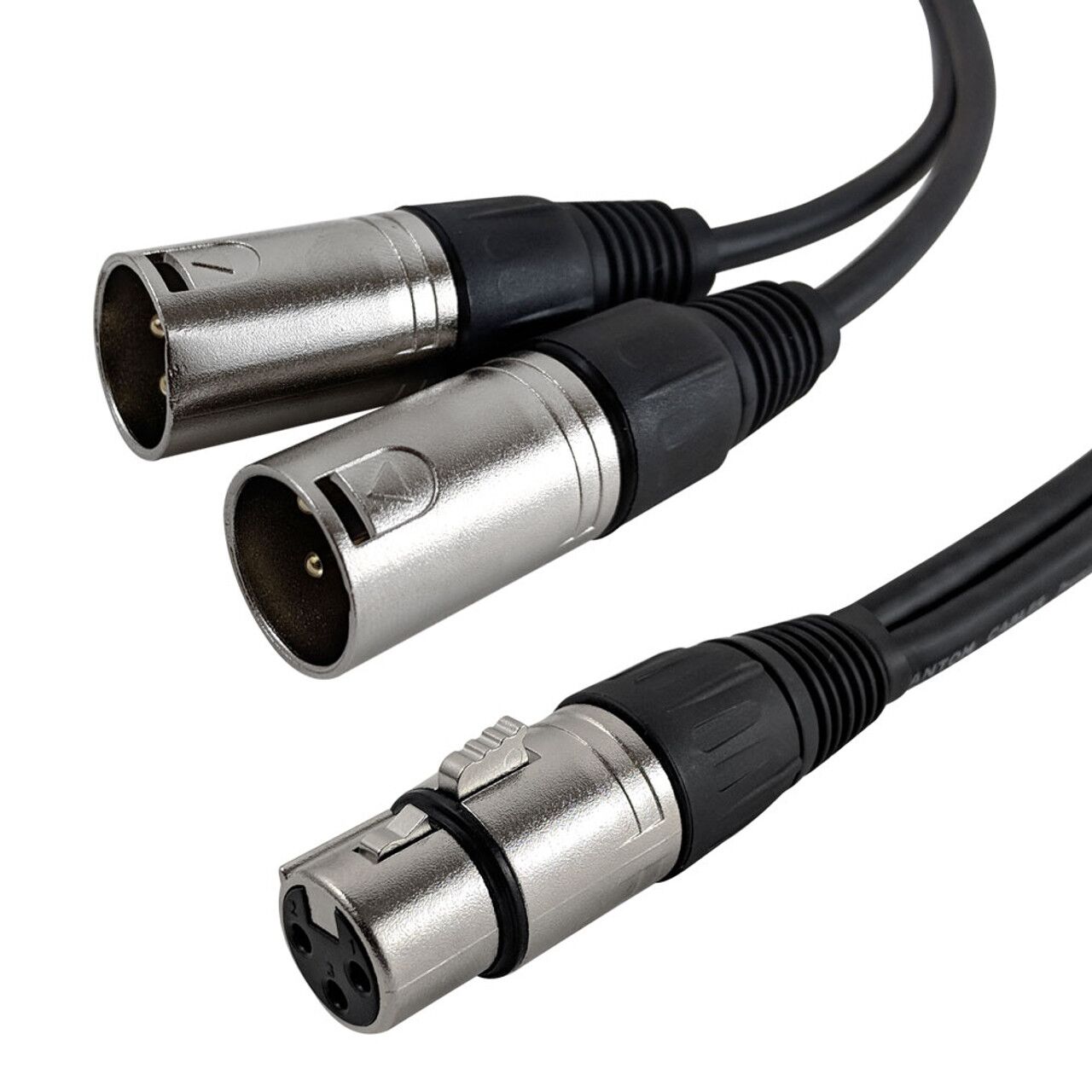

This splitter cable features an XLR female connector on one end and two XLR male connectors on the other, allowing for the duplication of a microphone or XLR output into two balanced channels. It uses high-flex balanced 24AWG cables that ensure optimal audio performance by capturing all highs and lows. The cable’s braided shield provides maximum EMI/RFI noise rejection, maintaining a clean signal. Its multi-stranded copper conductors and ultra-flexible, durable jacket enhance mobility. The FT4 riser fire-rated jacket allows for in-wall use, and the lead-free, silver-laced solder ensures reduced loss and maximum conductivity.
Description
This splitter cable has an XLR female on one end and two XLR males on the other. It is typically used to split a microphone or XLR output into two duplicate balanced channels.
- Two separate 24AWG cables breakout directly from the source connector
- Breakout begins directly from the source connector
- Hi-flex balanced cable is used to capture all highs & lows for optimum audio performance
- Braided shield surrounds center conductors for maximum EMI/RFI noise rejection therefore maintaining the cleanest signal possible
- Multi-stranded copper center conductors and a durable cable jacket is ultra-flexible to maximize mobility
- FT4 riser fire rated jacket for in-wall use
- Lead Free, “silver laced” solder is used in order to reduce loss and maximize conductivity
| Physical Characteristics | |
|---|---|
| Color | Black |
| Connector Plating | Nickel |
| Contact Plating | Gold |
| Cable Diameter | 5.0mm |
| Wire Gauge | 24AWG |
| Jacket Material | PVC – Polyvinyl Chloride |
| Fire Rating | FT4 (Riser CMR) |
| Cable Shielding | 90% Bare Copper Braid, 100% Aluminum Mylar Foil |
| Strain Relief | Metal Shell |
| Connectors | |
| Connector A | XLR Female |
| Connector B | XLR Male |
| Connector C | XLR Male |
| Approvals | |
| cUL | Yes – Cable |
| Environmental | |
| RoHS | Yes |
| Package Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
Cable Weights
| 1.5ft | 3ft | 6ft | 10ft | 15ft | 25ft | 35ft | 50ft |
|---|---|---|---|---|---|---|---|
| 0.30 lbs | 0.35 lbs | 0.45 lbs | 0.55 lbs | 0.70 lbs | 1.00 lbs | 1.30 lbs | 1.75 lbs |
