Description

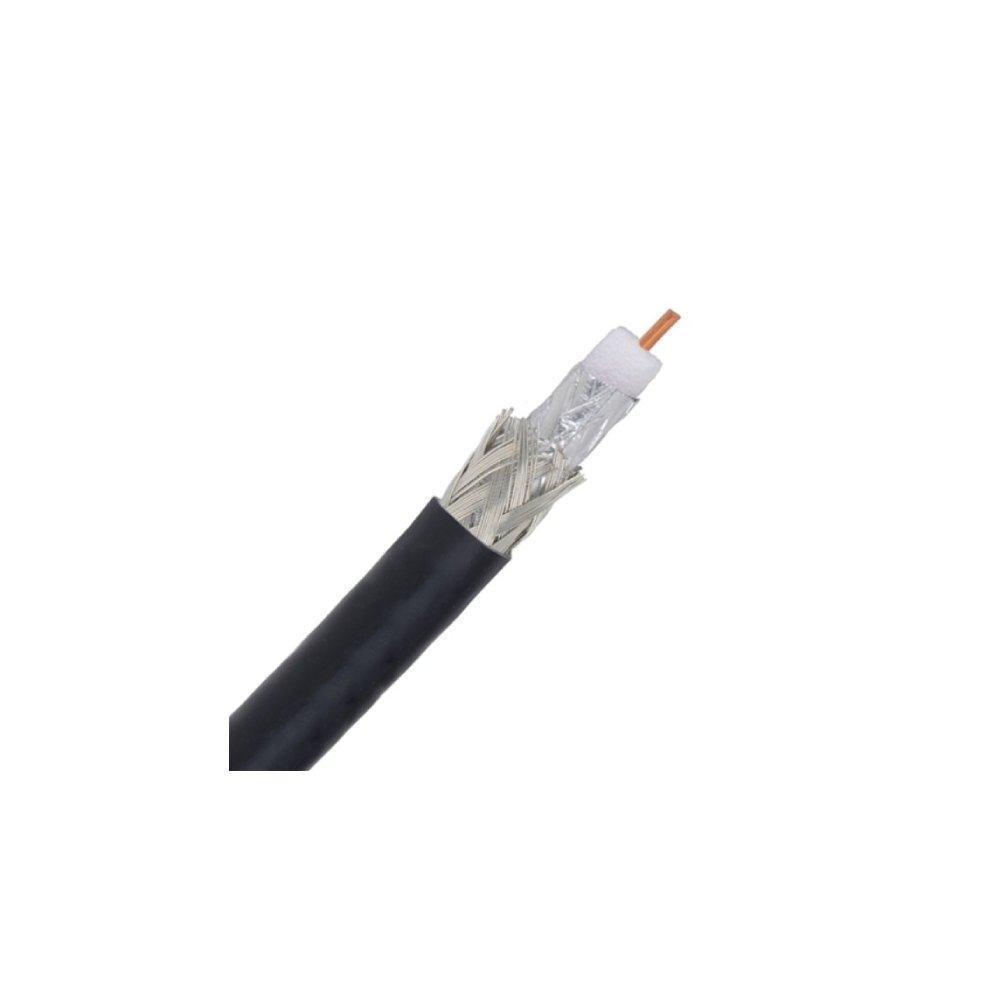

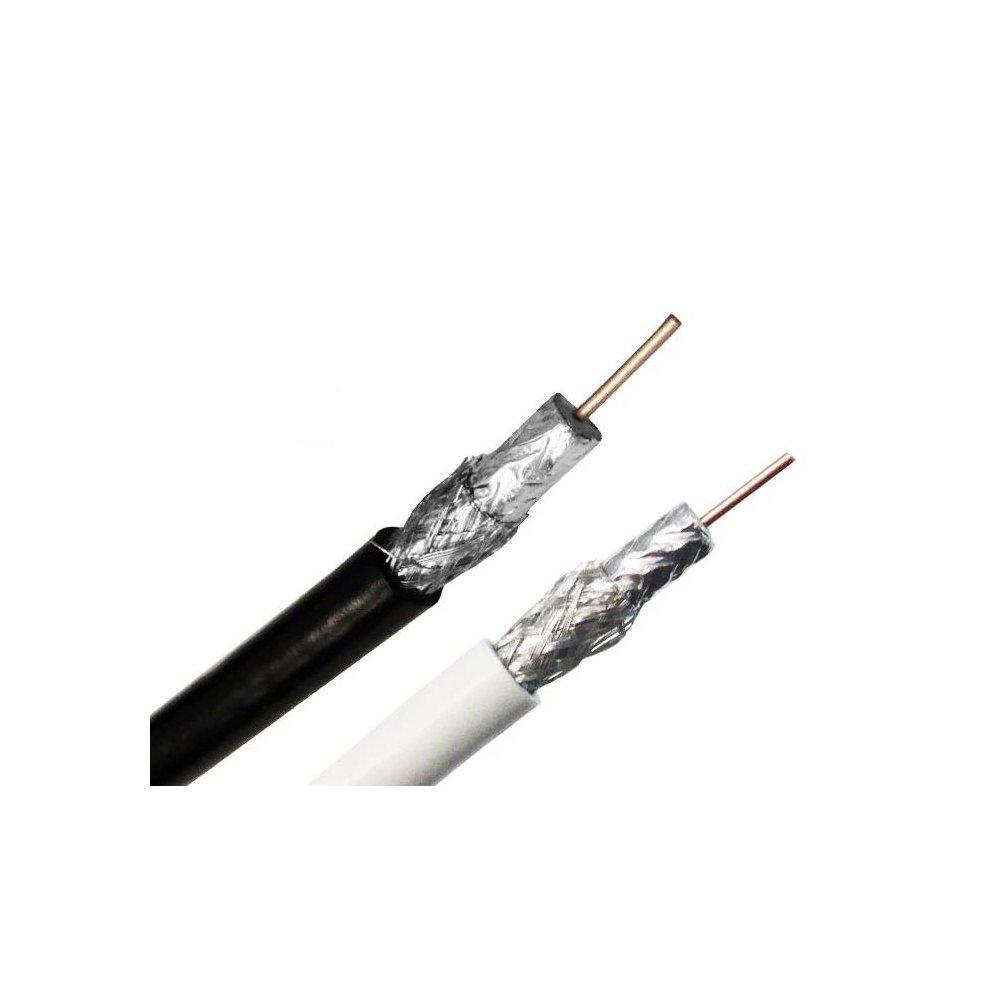

This bulk RG6 cable consists of a 18AWG solid center conductor. It is ideal for CATV video applications.
No products in the cart.
This bulk RG6 cable consists of a 18AWG solid center conductor. It is ideal for CATV video applications.
Physical Characteristics | ||||
---|---|---|---|---|
Cable Lengths Available | 250 foot 1000 foot Pull Box | |||
Color | Black | |||
Cable Diameter | 6.90mm | |||
Wire Gauge | 18AWG | |||
Inner Conductor | 1/1.02mm Solid Bare Copper | |||
Insulation | 4.57mm Foamed Polyethylene | |||
Shield 1 | Bonded Aluminum Foil | |||
Shield 2 | 5*16*0.12mm 60% AL | |||
Jacket Material | PVC – Polyvinyl Chloride | |||
Jacket Rating | CMR/FT4 [Riser Rated] | |||
Impedance | 75±3Ω | |||
Capacitance | 54±3pF/m | |||
Return Loss | 20dB Min | |||
Operating Temperature | -20ºC ~ 75ºC |
