Description

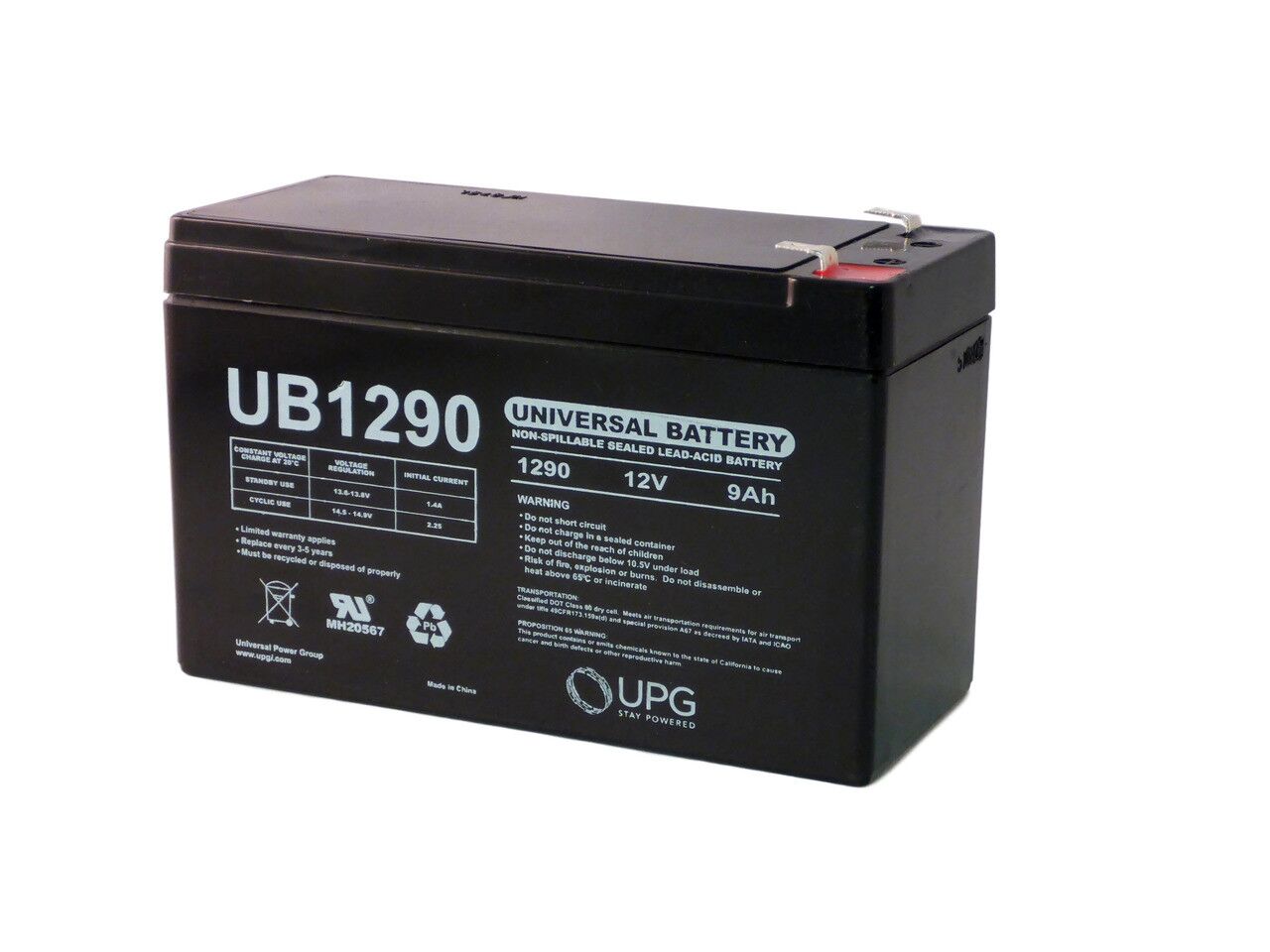

The BT-12V-9AF2 is a 12 volt, 9 amp sealed lead acid, non-spill able, rechargeable battery. This battery is typically used as a replacement battery in UPS systems, security alarm systems or security lighting applications.
No products in the cart.
The BT-12V-9AF2 is a 12 volt, 9 amp sealed lead acid, non-spill able, rechargeable battery. This battery is typically used as a replacement battery in UPS systems, security alarm systems or security lighting applications.
$29.99 Original price was: $29.99.$26.99Current price is: $26.99.
The BT-12V-9AF2 is a 12 volt, 9 amp sealed lead acid, non-spill able, rechargeable battery. This battery is typically used as a replacement battery in UPS systems, security alarm systems or security lighting applications.
Physical Characteristics | |
---|---|
Type | UPS Replacement |
Voltage | 12V |
Amps | 9A |
Terminal Type | F2 |
Tab Size | 0.25 inch |
Container Material | ABS(UL-94HB) |
Length | 2.6 inches [65mm] |
Width | 6 inches [151mm] |
Height | 3.7 inches [94mm] |
Operating Temperature | 25±3℃ (77±5℉ ) |
Compatible Terminal Adapter | |
BT-ADT2T1 | Battery terminal adapter F2 female (0.25”) to F1 male (0.1875”) |
Performance | |
Internal Resistance | Approx.24mΩ |
Max. Discharge Current | Current 127.5A(5S) |
Rated Capacity | 9.0AH (20hr, 1.75V/cell,25℃/77℉) 8.2AH (10hr, 1.75V/cell,25℃/77℉) 8.0AH (5hr, 1.75V/cell,25℃/77℉) 7.3AH (3hr, 1.75V/cell,25℃/77℉) 5.5AH (1hr, 1.75V/cell,25℃/77℉) |
Cycle Use | Charge Current Less Than 0.25CA 14.1V~14.7V@25℃(77℉)Temp. Coefficient -30mV/℃ |
Floating Use | No limit on Initial Charging Current Voltage 13.5V~13.8V@25℃(77℉)Temp. Coefficient -20mV/℃ |
Capacity affected by Temperature | 40°C 103% 25°C 100% 0°C 86% -15°C 65% |
Self-discharge | 3 month Remaining capacity: 91% 6 month Remaining capacity:82% 12 month Remaining capacity:65% |
Packaging Information | |
Product Weight | 6.15 lbs [2.8kg] |
Warranty Information | |
Warranty | 6 Months |
Compatibility Information | |
Model Number | Powerware UPS 3110-600 Powerware UPS 5115-500 |
