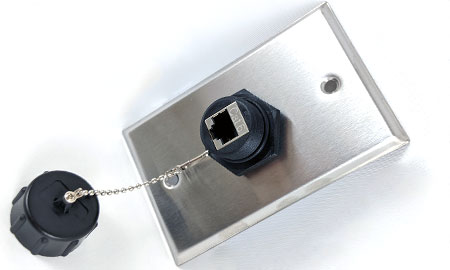

Single Gang Wall Plate – 1x Ethernet Bulkhead Hole – IP44 Rated – Stainless Steel

Stainless Steel Wall Plates SKU: RT-WP-EBH1-SS

This single gang wall plate has one Ethernet bulkhead cutout. It is a standard North American wall plate which accepts bulkhead jacks and couplers. It is IP44 rated to protect network parts from material greater than 1mm in diameter and water damage.

Description

Overview

IP44 Compliant

This wall plate is IP44 rated and resists water and large debris. Comes with gaskets for the screw holes and plate.

Use as Part of a Complete Kit

This wall plate can be used as part of a complete kit to create an end-to-end IP rated channel.

Physical Characteristics
Color	Stainless Steel
Plate Size	Single Gang
Material	Stainless Steel
Back Gasket	Rubber
Dimensions	115×70.6×6.65 mm (4.52×2.77×0.26 inch)
Operating Temperature	-10°C to 60°C
Storage Temperature	-40°C to 68°C
Humidity	10% ~ 90% RH
Cutouts
Ethernet Bulkhead Hole	1
Compatible Items
CN-C5E-FFS-IP68	Cat5e RJ45 Female to RJ45 Female Shielded Bulkhead Coupler – Waterproof IP68 Rated – Black
CN-C6-FFS-IP68	Cat6 RJ45 Female to RJ45 Female Shielded Bulkhead Coupler – Waterproof IP68 Rated – Black
CN-C6A-FFS-IP68	Cat6A RJ45 Female to RJ45 Female Shielded Bulkhead Coupler -Waterproof IP68 Rated – Black
JK-C5P-SBK-IP68	Cat5e RJ45 Female to 110 Punch Down Shielded Bulkhead Coupler – Waterproof IP68 Rated – Black
JK-C6P-SBK-IP68	Cat6 RJ45 Female to 110 Punch Down Shielded Bulkhead Coupler – Waterproof IP68 Rated – Black
Environmental
IP Rating	IP44 Rated when used in conjunction with waterproof coupler
RoHS	Yes
Packaging Information
Product Weight	0.15 lbs [0.07 kg]

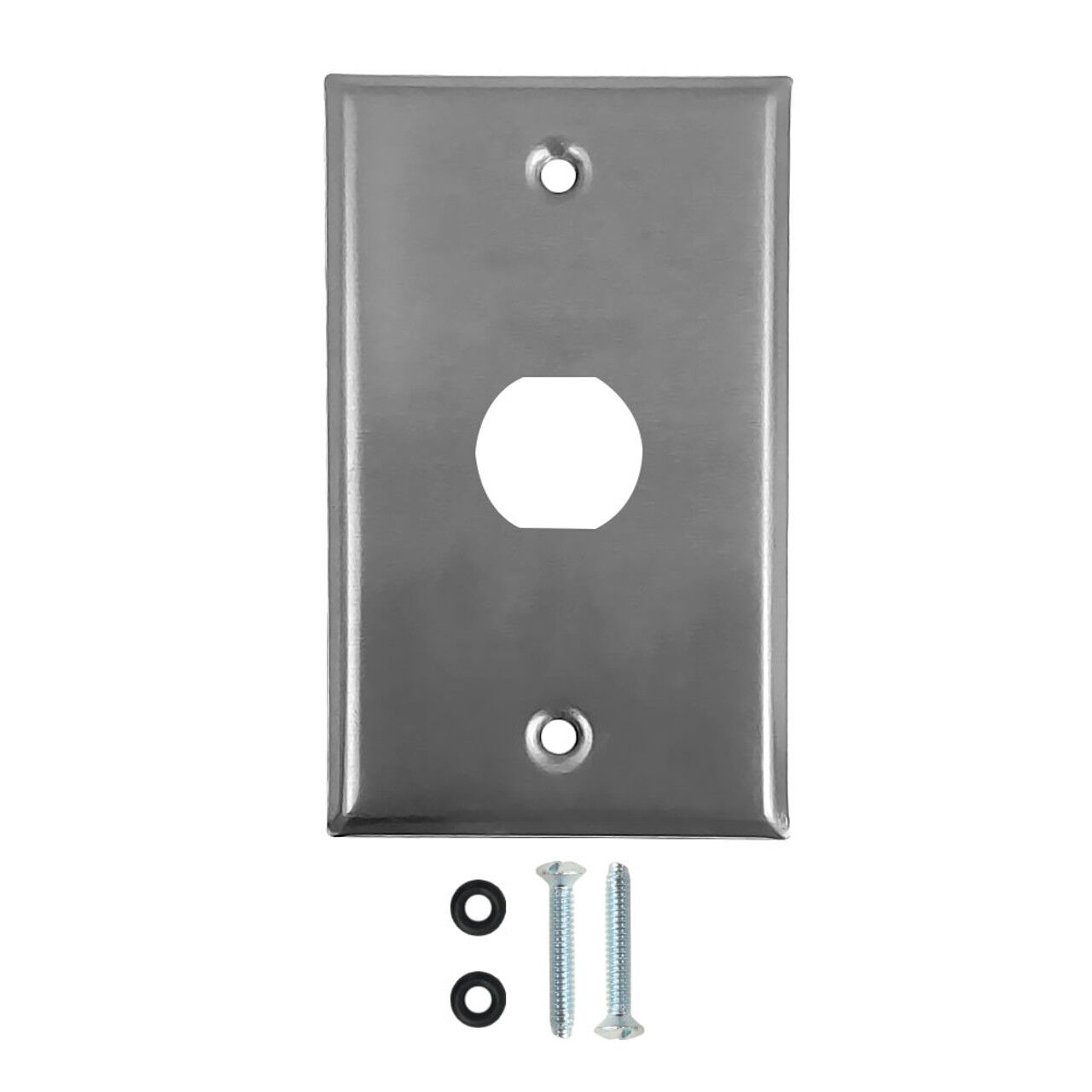

Included in Package	1 – Wall Plate 1 – Pair of Screws 1 – Pair of washers
