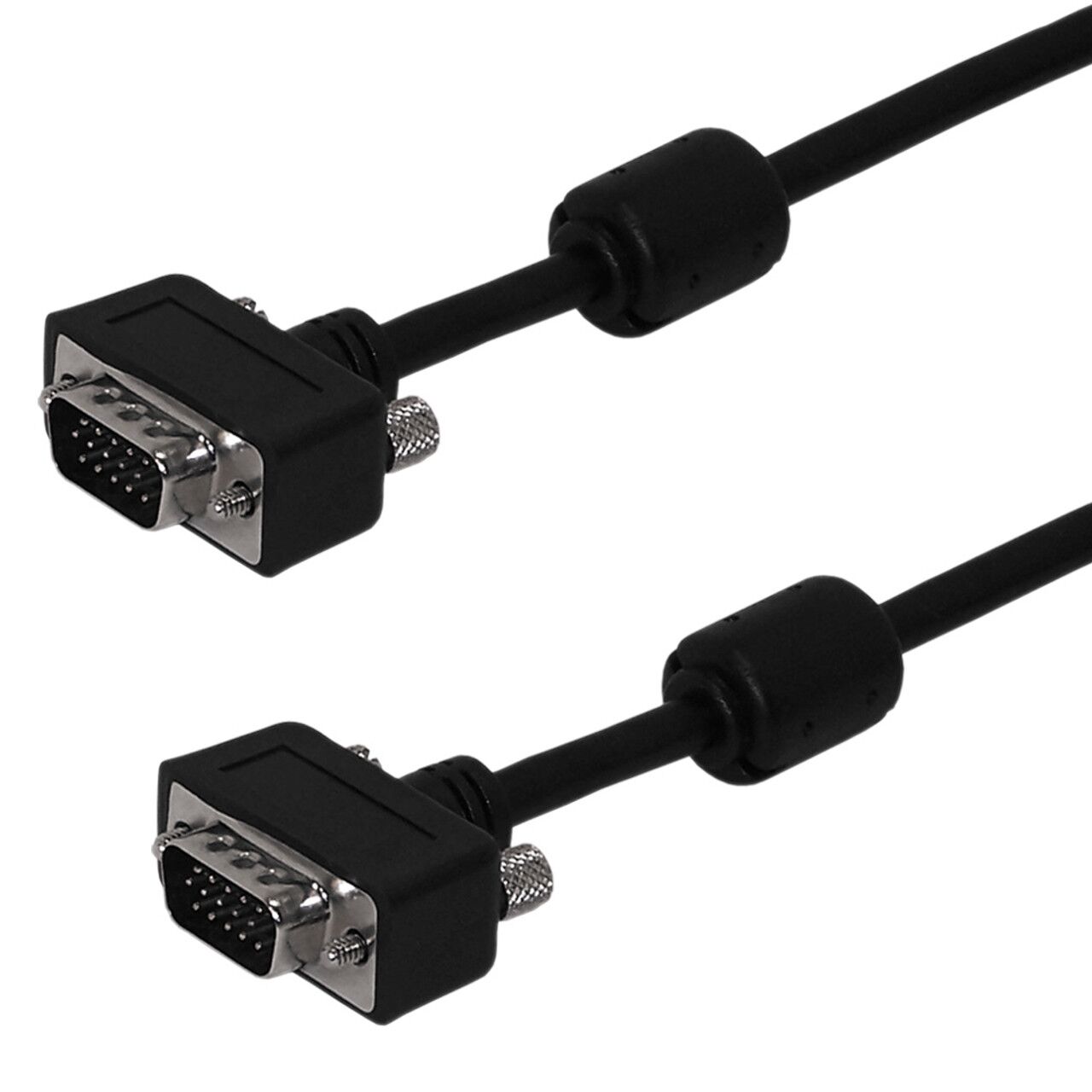

Ultra-thin LCD SVGA cable HD15 M/M CL2/FT4
This ultra-thin SVGA cable consists of a HD15 VGA male connector on both ends. It is typically used to connect a VGA source such as a computer or laptop to a VGA input on a LCD/LED/Plasma screen.
Description
This ultra-thin SVGA cable consists of a HD15 VGA male connector on both ends. It is typically used to connect a VGA source such as a computer or laptop to a VGA input on a LCD/LED/Plasma screen.
- Constructed of ultra thin SVGA cable designed specifically for LCD/Plasma screens
- Slim low-profile HD15 molded connectors fit well in tight spaces
- This premium double shielded construction is designed to minimize any signal loss or ghosting that may appear with lesser quality cables
- Ferrite cores placed at either end of the cable further enhance the video quality
| Physical Characteristics | |
|---|---|
| Color | Black |
| Connector Plating | Nickel |
| Contact Plating | Gold |
| Wire Gauge – Coax | 3 – 32AWG Mini-Coax |
| Wire Gauge – Conducters | 9 – 30AWG Conductors |
| Cable Diameter | 5.7mm |
| Shielding | AEB Braid, 100% Mylar Foil, Ferrite Cores |
| Jacket Fire Rating | CL2/FT4 |
| Jacket Material | PVC |
| Strain Relief | Molded PVC |
| Connector(s) | |
| Connector A | Ultra-thin SVGA HD15 Male |
| Connector B | Ultra-thin SVGA HD15 Male |
| Performance | |
| Impedance | 75 ohm |
| Approvals | |
| c(UL)us | Approved Cable |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 1ft | 3ft | 6ft | 10ft | 15ft | 25ft | 35ft | 50ft | 75ft | 100ft |
|---|---|---|---|---|---|---|---|---|---|
| 0.10 lbs | 0.25 lbs | 0.31 lbs | 0.42 lbs | 0.53 lbs | 0.81 lbs | 1.00 lbs | 1.50 lbs | 2.15 lbs | 2.90 lbs |
