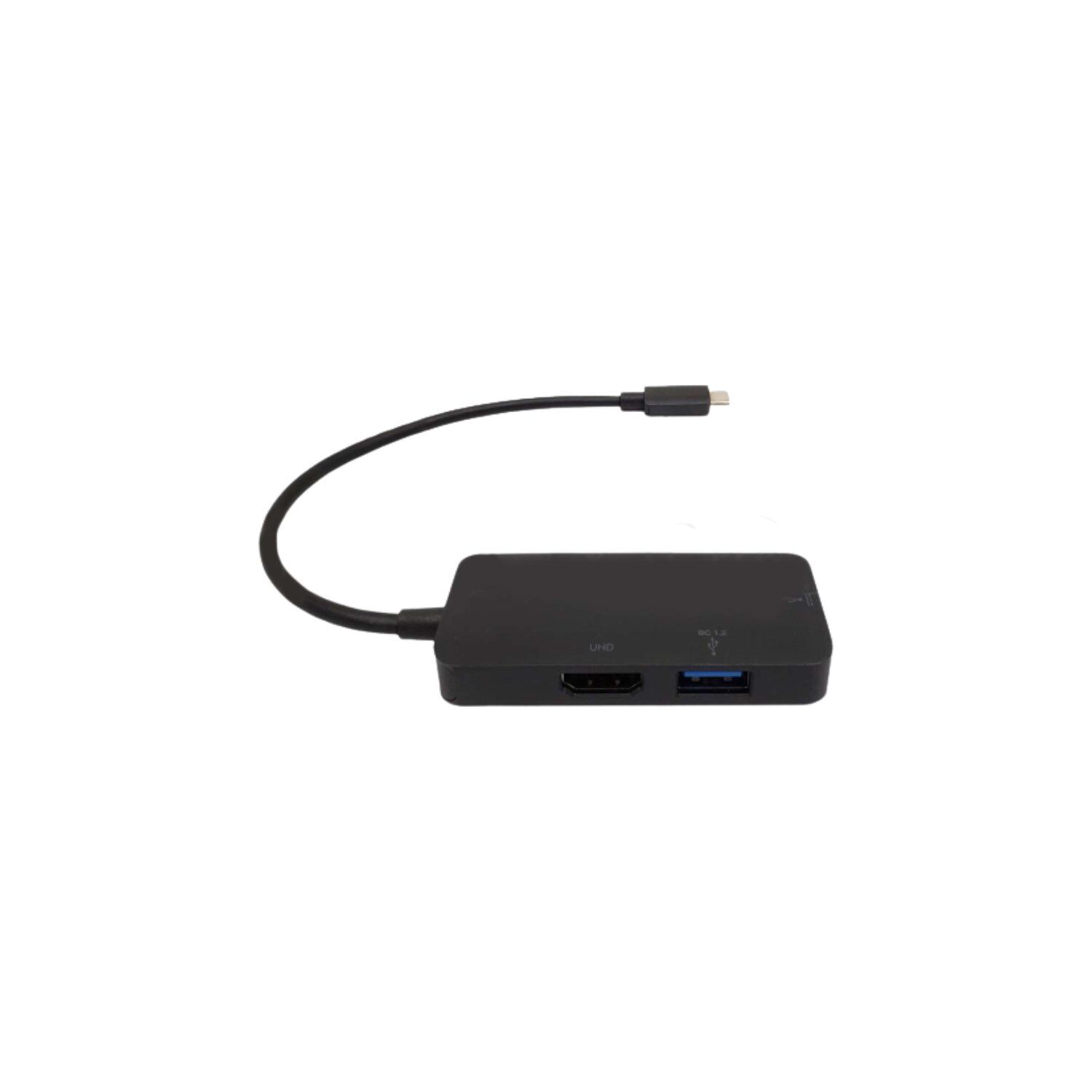

USB 3.1 Type-C to HDMI, USB-A 3.0, USB Type-C – DP 1.4 Alt Mode – Black

USB Converters SKU: AD-UC-003

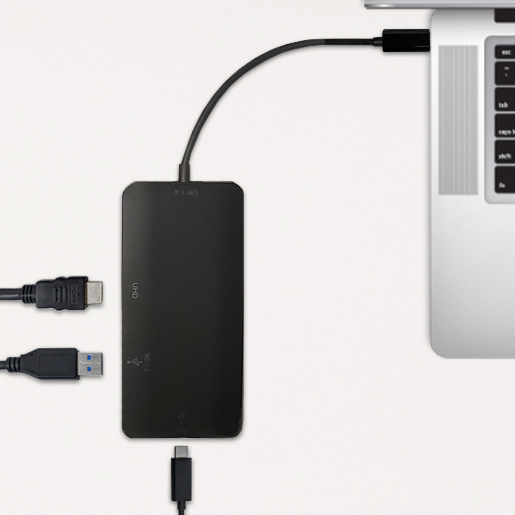

This USB 3.1 Type-C adapter consists of a USB 3.1 Type-C male connector on one end and a HDMI female, USB 3.1 Type-C female and a USB 3.0 A female port on the other end. It allows you to connect additional devices through your USB Type-C port and create a permanent or temporary workstation. The USB Type-C port on the input side can be used to simultaneously charge your device.

Description

Note: When connecting a DP1.4 Alt mode supported host, the max resolution of HDMI is 4K@60Hz. When connecting a DP1.2 Alt mode supported host, the max resolution of HDMI is 4K@30Hz due to bandwidth limitation.

Expand your Type-C Devices Connectivity

This 3×1 USB Type-C docking station has an HDMI port for connecting external displays, a USB 3.0 A Super Speed port and a USB Type-C port with Power Delivery charging.

High Performance and Quality Video Output

The HDMI output provides a simple plug&play connection to almost any HDMI display with an Ultra HD 4K resolution.

Fast Data Transfer

The Super Speed USB 3.0 Port supports faster data transfer up to 5Gbps.

DisplayPort Alt Mode

This adapter works on all Type-C hosts that support DP Alt mode (including DP1.2 and DP1.4 Alt mode).

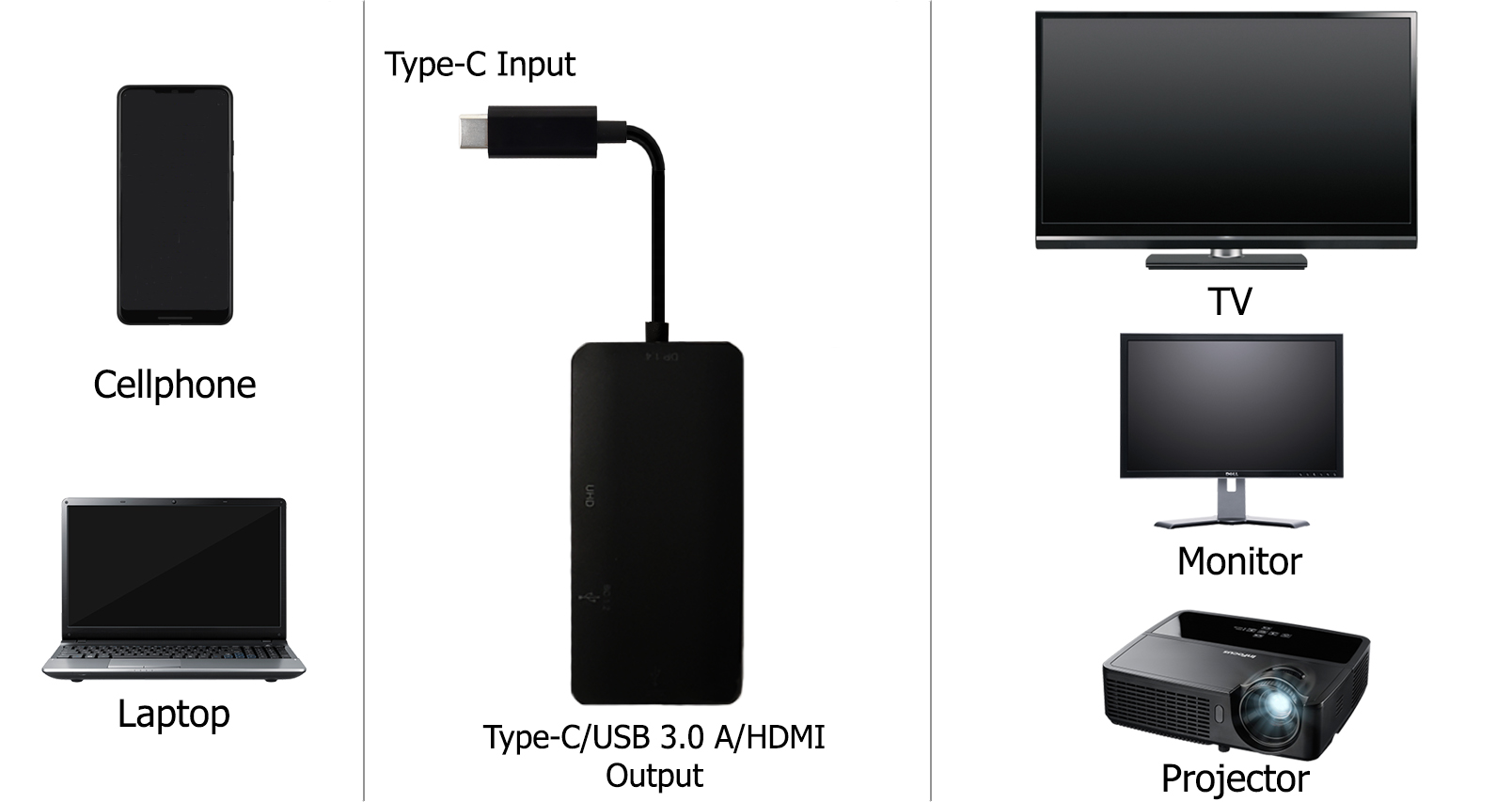

Application

Physical Characteristics
Cable Length	6 inches
Color	Black
Connector Plating	Nickel
Connector(s)
Connector A	USB 3.1 Type-C Male
Connector B	HDMI Female
	USB 3.1 Type-C Female
	USB 3.0 A Female
Performance
USB Type-C Port	Supports data transmission (Max 5Gbps), Max 7.5W(5V/1.5A) Downstream charging, share max 7.5W downstream charging with USB-A port Supports Power Delivery charging 100W (20V/5A) Supports Fast Role Swap of PD 3.0, the connected device will not get disconnected while plugging the PD adapter in and out 7.5W dedicated to adapter, the remaining 92.5W power will be passed to charge for the host
HDMI Resolution	Supports 4Kx2K@60Hz, 4:4:4, 8bit with 18Gbps bandwidth Supports 6/8/10/12 bit color depth output Supports output pixel format RGB4:4:4/YCbCr4:4:4/YCbCr4:2:2 Supports HDCP 2.2/1.4 Supports HDR
USB Type A Port	Supports BC 1.2 with max 7.5W (5V/1.5A) downstream charging Max 5Gbps bandwidth
Supports	DP1.4 Alt mode, with bandwidth max 2 lanes 16.2Gbps (8.1Gbps per lane), Downward compatible with DP1.2 Alt mode
Compatibility	Compliant with USB 3.1, Backward Compatible with USB 3.0 and USB 2.0
System Requirements
Windows Compliant	Yes
Mac Compliant	Yes
Certifications
FCC	Yes
CE	Yes
Environmental
RoHS	Yes
Reach	Yes
Conflict Minerals	Yes
Packaging Information
Package Quantity	1
Product Weight	0.44 lbs [0.19kg]
