USB 3.1 Type C to Mini DisplayPort (1.2) 4K@60Hz Adapter – DP 1.2 Alt Mode – Black

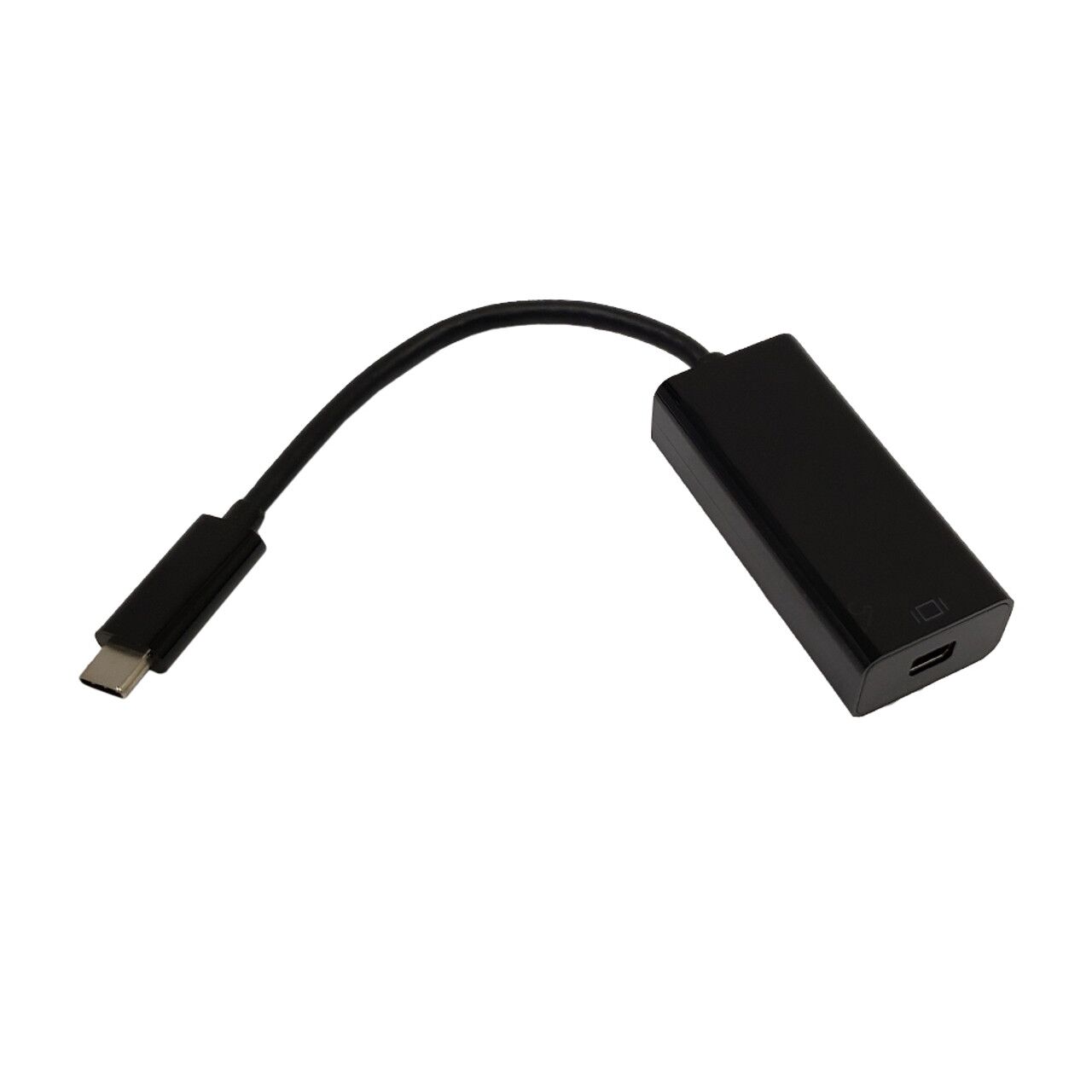

The USB Type-C to Mini DisplayPort adapter consists of a USB 3.1 Type-C male on one end and a Mini DisplayPort v1.2 female on the other end. It allows you to connect an extra display from your laptop’s USB Type-C port. This adapter provides high throughput using the USB 3.1 bus and supports high definition monitors.
Description
The USB Type-C to Mini DisplayPort adapter consists of a USB 3.1 Type-C male on one end and a Mini DisplayPort v1.2 female on the other end. It allows you to connect an extra display from your laptop’s USB Type-C port. This adapter provides high throughput using the USB 3.1 bus and supports high definition monitors.
  | High Performance and Quality Video OutputThe Mini DisplayPort output provides a simple plug&play connection to displays with an Ultra HD 4K (3840×2160)@60Hz resolution. DisplayPort Alt ModeThis adapter works on all Type-C and Mini DisplayPort hosts that support DP 1.2 Alt mode. |
| Physical Characteristics | |
|---|---|
| Cable Length | 6 inches |
| Color | Black |
| Connector Plating | Nickel |
| Size(W x L x H) | 41 x 37 x 14.5mm |
| Operating Temperature | 0 ℃ to +45℃ |
| Operating Humidity | 10% to 85% RH (No Condensation) |
| Storage Temperature | -10℃ to +70℃ |
| Storage Humidity | 5% to 90% RH (No Condensation) |
| Connector(s) | |
| Connector A | USB 3.1 Type-C Male |
| Connector B | Mini Displayport v1.2 Female |
| Performance | |
| Resolution | Up to 4K (3840×2160) @ 60Hz |
| Speed | Per lane data rates of 5.4 Gbps (HBR2), 2.7 Gbps (HBR) and 1.62 Gbps (RBR) |
| Version | Mini Displayport 1.2 and former versions |
| Power Source | USB Bus Power or VCONN |
| Compatibility | Compliant with USB 3.1 Backward Compatible with USB 3.0 and USB 2.0 |
| Supports | HDCP Content Protection |
| System Requirements | |
| Operating System | Windows Compliant |
| Mac Compliant | |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.06 lbs [0.02kg] |
