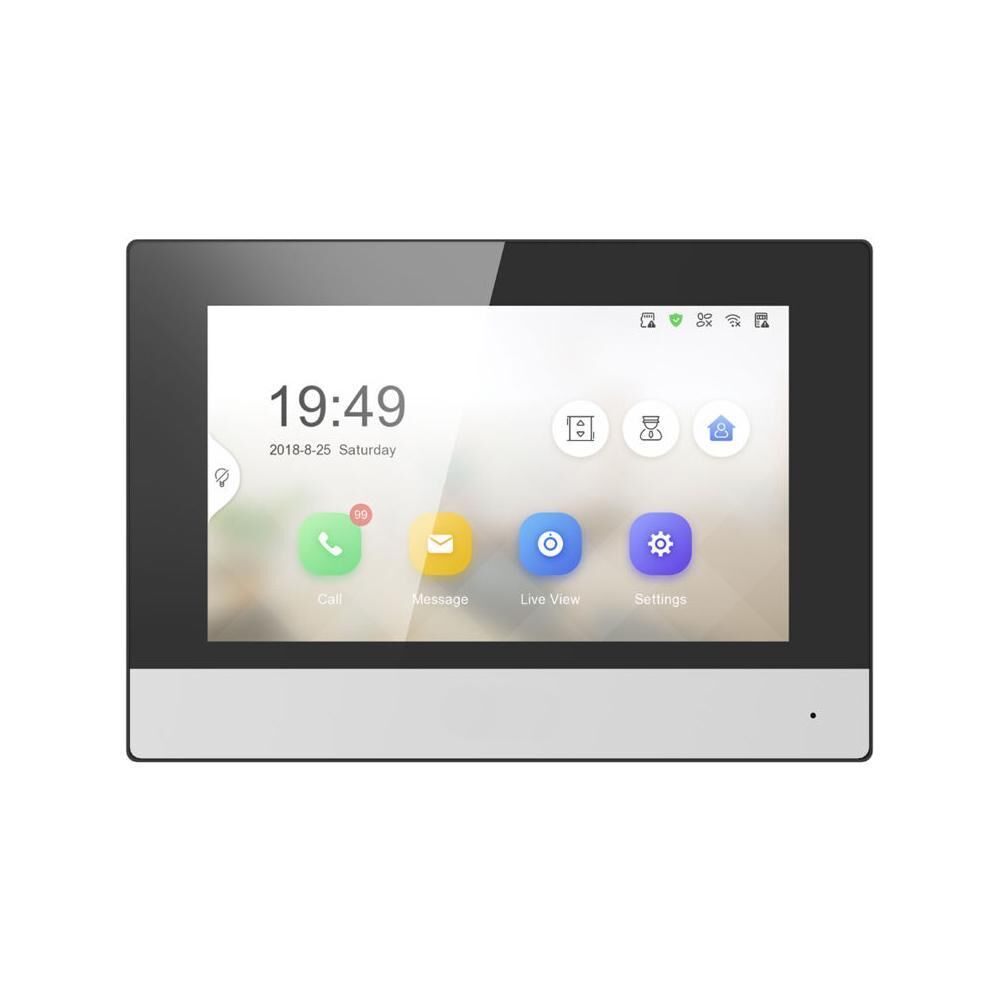

Video Intercom Indoor Station – 7 inch Touch Screen – Wired PoE
This video intercom indoor station has 7-inch colorful touch screen with resolution 1024 x 600 with built-in speaker and omnidirectional microphone with noise suppression and echo cancellation. It has 8 alarms inputs and 2 relay outputs.
Description
- New UI V2.0: User friendly design
- 7-inch colorful touch screen with resolution 1024 × 600
- Standard PoE
- Stores messages and capture pictures in the TF card
- Remote unlocking via the client software or the mobile client
- Views live videos of door stations and linked cameras
- Supports wireless network
- Embedded Linux OS
- Enables remote access control and video intercom functionality
- Remote unlocking via client software or mobile client
- Built-in omnidirectional microphone and speaker for two-way talk
- Noise suppression and echo cancellation
- 100M self-adaptive RJ45 port
- 8 alarm inputs and 2 relay outputs
- RS-485 port
- ETL, CE, and FCC certified
Specifications
| System Parameters | |
|---|---|
| Operating System | Embedded Linux operation system |
| ROM | 32 MB |
| RAM | 128 MB |
| CPU | Embedded Processor |
| Display Parameters | |
| Screen Size | 7-inch colorful TFT screen |
| Operation Method | Capacitive touch screen |
| Type | Colorful TFT screen |
| Resolution | 1024 x 600 |
| Video Parameters | |
| Lens | / |
| Resolution | / |
| FOV | / |
| WDR | / |
| Video Compression Standard | CA-KH6320-WTE1 |
| Focal Length | / |
| Audio Parameters | |
| Audio Compression Standard | G.711 U |
| Audio Input | Built-in omnidirectional microphone |
| Audio Output | Built-in loudspeaker |
| Audio Compression Bitrate | 64 Kbps |
| Audio Quality | Noise suppression and echo cancellation |
| Volume Adjustment | Adjustable |
| Capacity | |
| Event Capacity | 200 |
| Notice Capacity | 16 |
| Linked Indoor Extensions Capacity | 5 |
| Linked Doorphone Capacity | 8 |
| Network Parameters | |
| Communication Protocol | TCP/IP, SIP, RTSP |
| Wired Network | 10/100 Mbps self-adaptive |
| Wi-Fi Standard | Wi-Fi 802.11 b/g/n |
| Bluetooth Version | / |
| 3G/4G Standard | / |
| Zigbee | / |
| Device Interfaces | |
| Alarm Input | 8-ch alarm inputs |
| Network Interface | 1 RJ-45 10/100 Mbps self-adaptive |
| TAMPER | / |
| RS-485 | 1 |
| USB | / |
| TF Card | Max to 32 G, SD 2.0 or lower version |
| Alarm Output | 2 |
| Power Interface | 1 |
| General | |
| Button | 0 |
| Working Temperature | -10°C to 55°C (14°F to 131°F); humidity: 10% to 90% |
| Installation | Surface Mounting |
| Indicator | 0 |
| Protective Level | / |

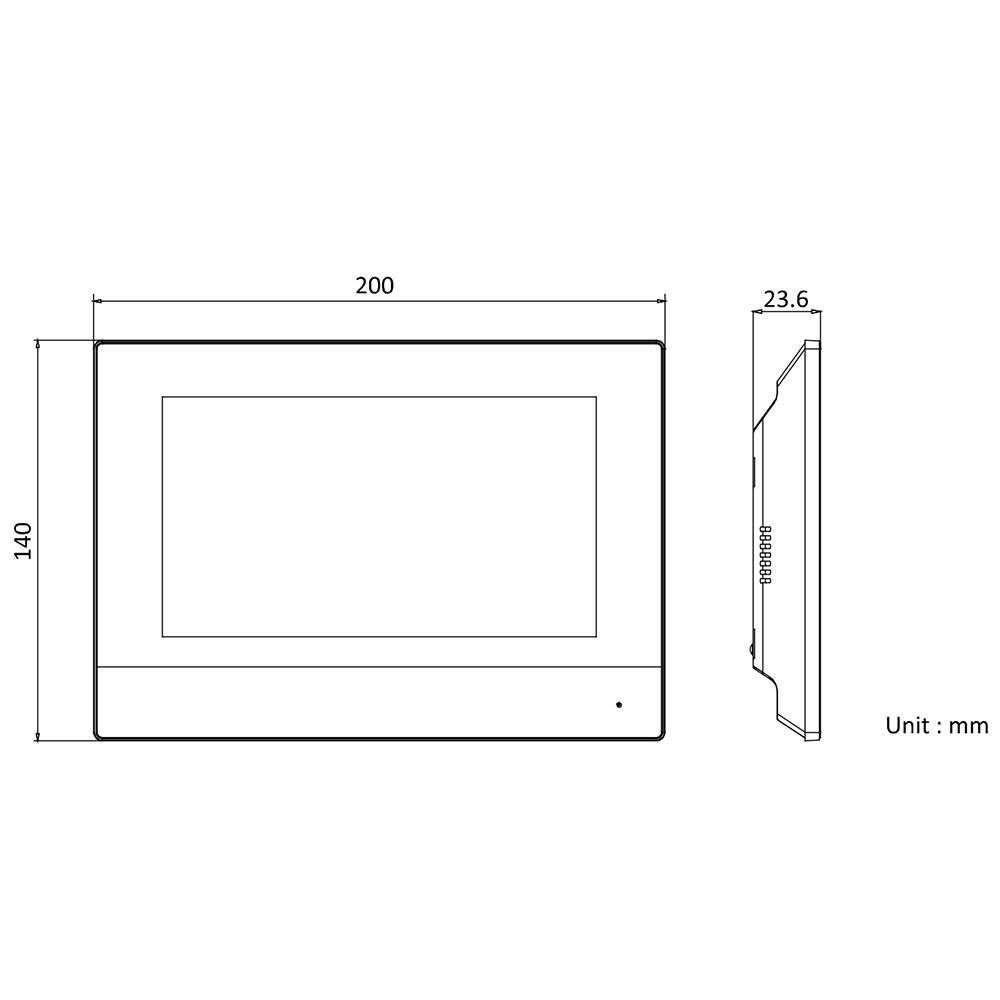

| Dimensions | ⌀ 7.9″ x 5.5″ x 0.6″ (⌀ 200 x 140 x 15.1mm) |
| Battery | / |
| Application Environment | Indoor |
| Power Consumption | ≤ 6 W |
| Languages | English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Greek |
| Weight | 1.5 lbs (683 g) |
Downloads
Web Portal Remote Access
Register/login with your Guarding Vision account for access to all devices in your account remotely from the browser. Supports Internet Explorer 8+, Chrome 41.0 to 44, Firefox 30.0 to 51 and Safari 8.0 to 11
Web Portal Remote Access
Register/login with your Guarding Vision account for access to all devices in your account remotely from the browser. Supports Internet Explorer 8+, Chrome 41.0 to 44, Firefox 30.0 to 51 and Safari 8.0 to 11
Guarding vision Android app
Supports Android 4.1 and up
Warranty
All cameras and hard drives sold by RTC Electronics come with a 3-year warranty ensuring them free from manufacturing and material flaws. The original buyer who provides evidence of purchase is eligible for this warranty. This warranty does not cover any product failure or damage resulting from events outside RTC Electronics’ control, such as misuse, negligence, or accidental damage, inaccurate application or installation, alterations, Act of God, or ordinary wear and tear. Any removal or installation expenses are not the responsibility of RTC Electronics. Cables’ full and exclusive obligation under this warranty is to, in our exclusive discretion, either repair or replace the defective item. RTC Electronics disclaims any additional warranties, express or implied, including the implied warranty of merchantability. RTC Electronics won’t be held responsible for any losses, including lost or anticipated profits, delays, consequential damages, or other, unique damages.
