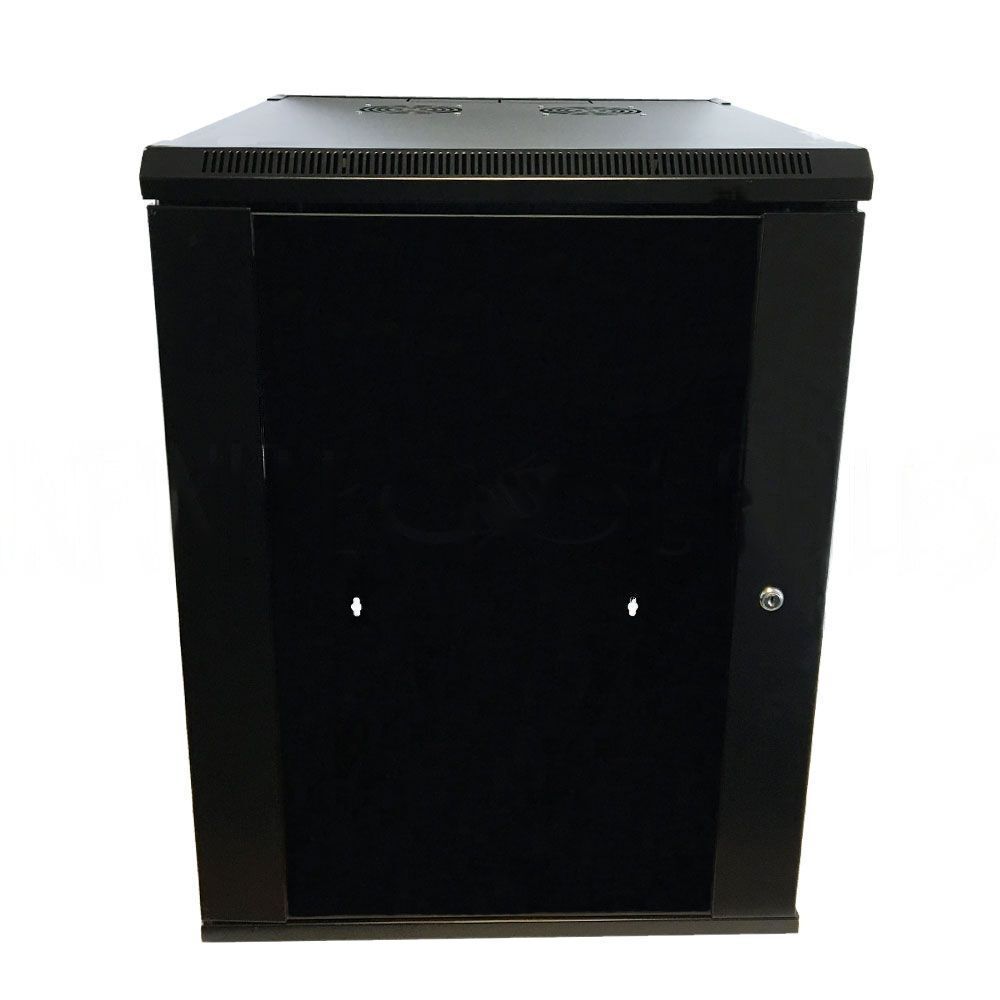

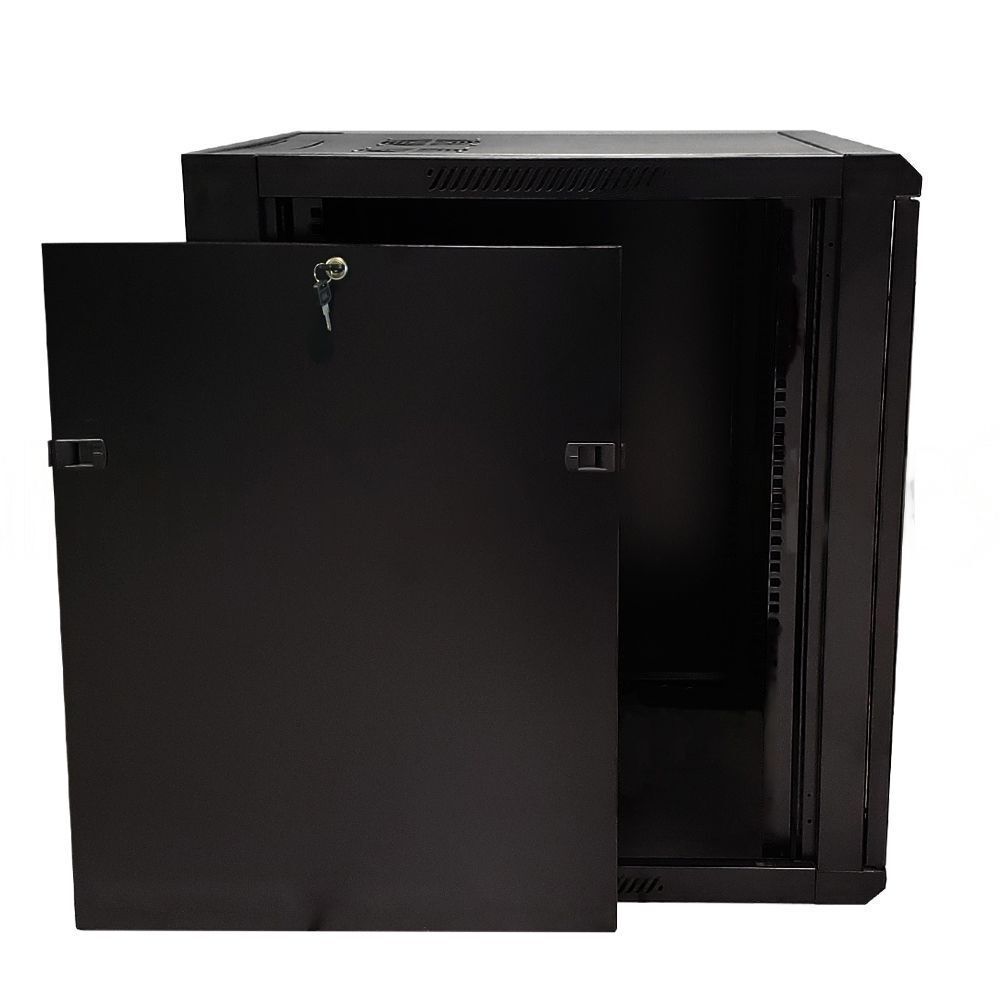

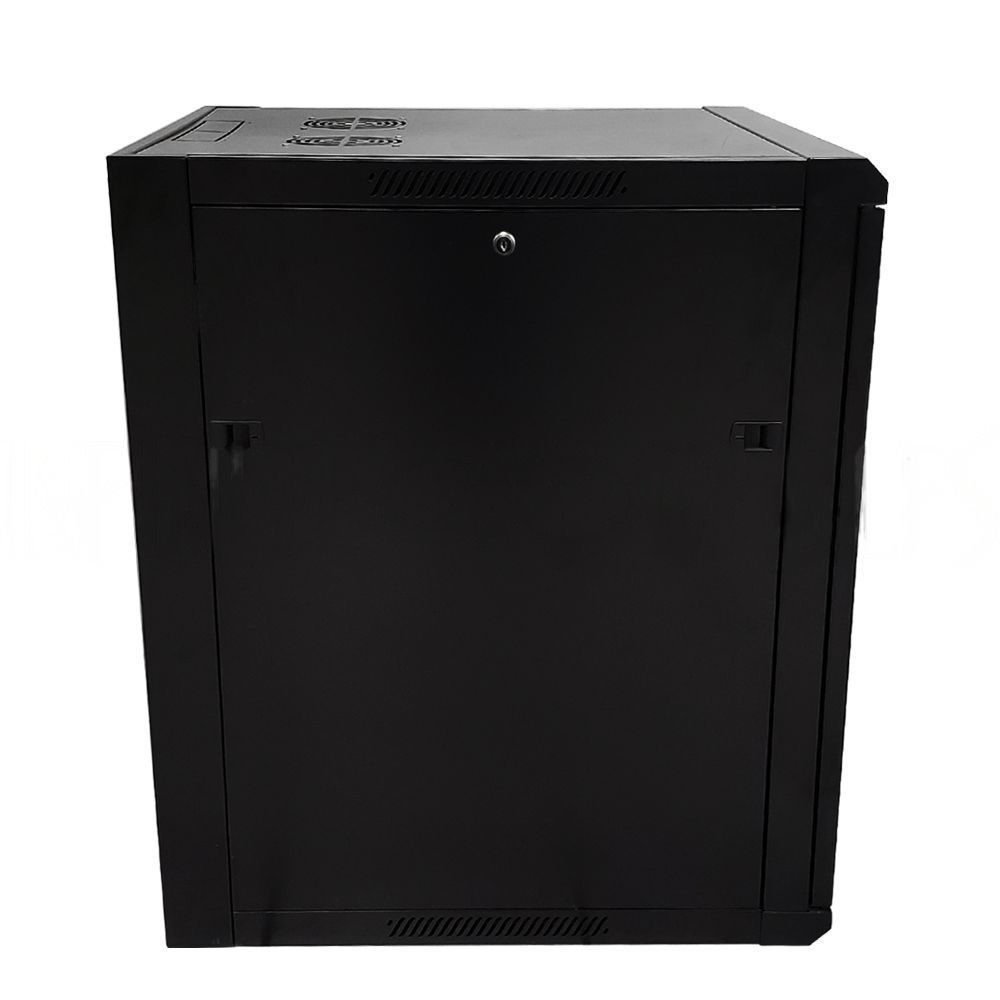

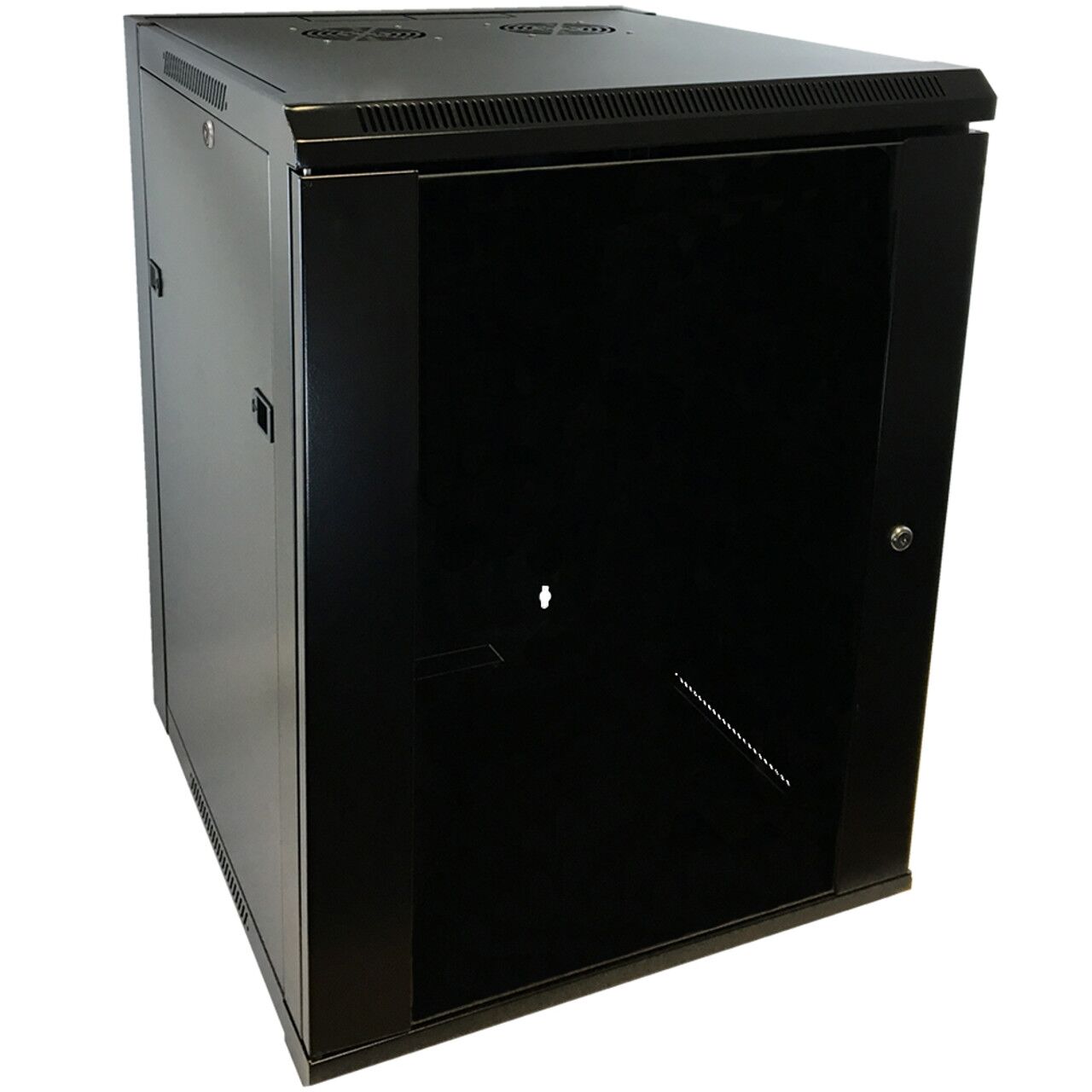

"15U Wall Mount Cabinet with Lockable Door & Removable Side Panels | Ideal for Network & DVR Equipment in Small Offices & Homes (Fans Sold Separately)"
This 15U wall mount cabinet comes with a lockable front door and removable side panels. It is typically used for housing network and DVR equipment used in small offices and homes. (Fans sold separately).
$179.99Original price was: $179.99.$152.99Current price is: $152.99.
This 15U wall mount cabinet comes with a lockable front door and removable side panels. It is typically used for housing network and DVR equipment used in small offices and homes. (Fans sold separately).
Physical Characteristics
Color
Black – Powder Coated
Material
SPCC Cold Rolled Steel
Material Thickness
Rails:1.35mm, Others:1.0 mm
Doors
Glass front door can be assembled to open in either direction Opening angle of front door is over 180 degrees
Locks
Locking front door and side panels
Removable Side Panels
Yes
Adjustable Mounting Profile Installation
Yes
Assembly Required
Yes (Flat Packed)
Loading Capacity
Maximum 132 lbs [60 kg]
Cable Entries
Cable entry on both of top cover and bottom panel
Width
19 inches
Capacity
15U
Product Dimensions
30 H, 22.5 W, 17.5 D inches
Mounting Rails
2 pairs of square hole rails Adjustable depth 75mm, 85mm, 95mm 105mm, 115mm (Measured from the Glass to the Rail)
Usable Mounting Dimensions
15U Height x 19″ Wide x 13.5″ Deep
Cooling Fans
Not Included, Sold Separately (RM-615)
Grounding Stud
Yes
Compatible Products
RM-500-BRUSH
Brush Opening Cover for Cable Knockout with Screws for RM-5XX Cabinets
RM-615
Fan Kit for RM-500 Series Wall Mount Cabinets – Low Decibel 28dBa – 55 CFM – Pair
Approvals
ANSI/EIA
Yes
RS-310-D
Yes
IEC60297-2
Yes
DIN41494
Yes
PART1
Yes
PART7
Yes
Environmental
RoHS
Yes
Reach
Yes
Packaging Information
Package Quantity
1 – Wall Mount Cabinet 15U
Product Weight
68.2 lbs
