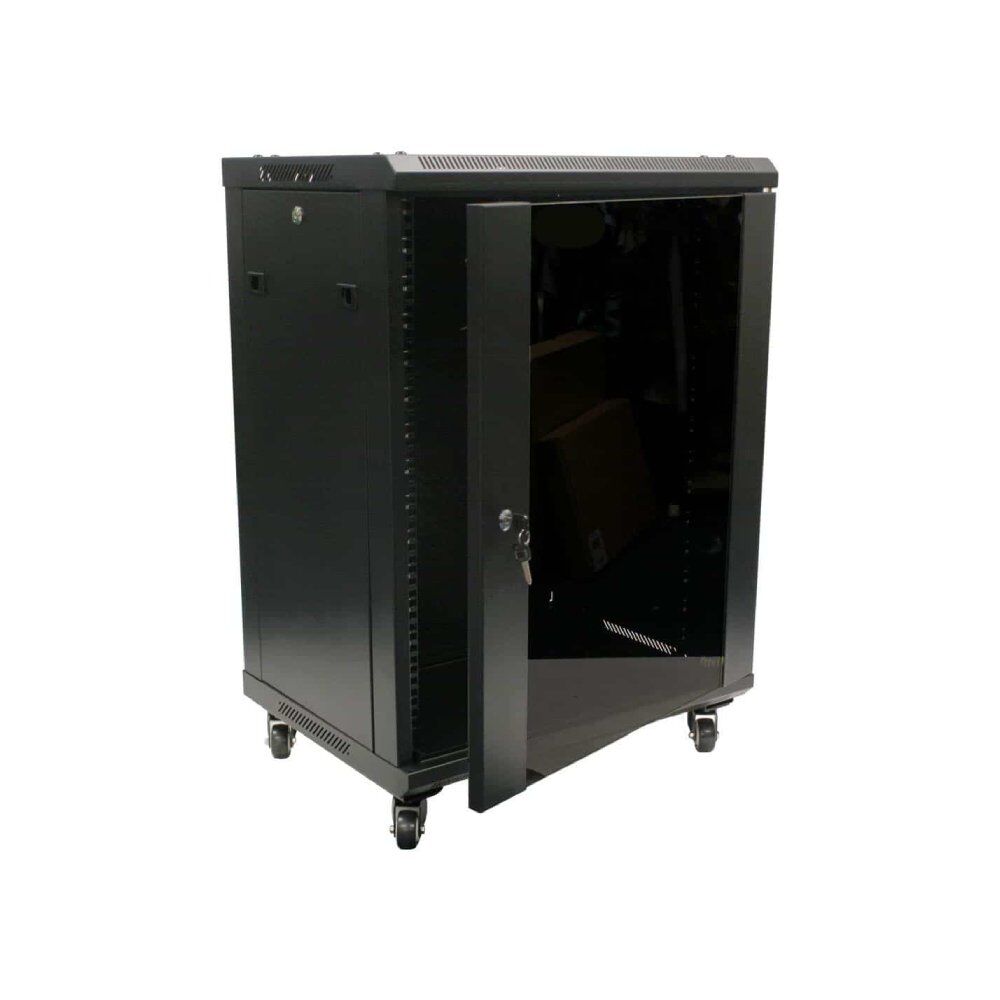

Wall Mount Cabinet 21U x 24b3 Depth, Glass Door b With Wheels
This 21U wall mount cabinet comes with a lockable front door and removable side panels and wheels. It is typically used for housing network and DVR equipment used in small offices and homes. (Fans sold separately).
Description
This 21U wall mount cabinet comes with a lockable front door and removable side panels and wheels. It is typically used for housing network and DVR equipment used in small offices and homes. (Fans sold separately).
| Physical Characteristics | |
|---|---|
| Color | Black – Powder Coated |
| Material | SPCC Cold Rolled Steel |
| Material Thickness | Rails:1.35mm, Others:1.0 mm |
| Doors | Glass front door can be assembled to open in either direction Opening angle of front door is over 180 degrees |
| Locks | Locking front door and side panels |
| Removable Side Panels | Yes |
| Adjustable Mounting Profile Installation | Yes |
| Assembly Required | Yes (Flat Packed) |
| Loading Capacity | Maximum 200 lbs [90 kg] |
| Cable Entries | Cable entry on both of top cover and bottom panel |
| Width | 19 inches |
| Capacity | 21U |
| Product Dimensions | 30 H, 22.5 W, 24 D inches [76 H, 57 W, 60 D cm] |
| Mounting Rails | 2 pairs of square hole rails Adjustable depth 75mm, 85mm, 95mm 105mm, 115mm (Measured from the Glass to the Rail) |
| Usable Mounting Dimensions | 40 In Height x 24in Wide x 24 In” Deep |
| Cooling Fans | Not Included, Sold Separately (RM-615) |
| Grounding Stud | Yes |
| Compatible Products | |
| RM-500-BRUSH | Brush Opening Cover for Cable Knockout with Screws for RM-5XX Cabinets |
| RM-615 | Fan Kit for RM-500 Series Wall Mount Cabinets – Low Decibel 28dBa – 55 CFM – Pair |
| Approvals | |
| ANSI/EIA | Yes |
| RS-310-D | Yes |
| IEC60297-2 | Yes |
| DIN41494 | Yes |
| PART1 | Yes |
| PART7 | Yes |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Packaging Information | |
| Package Quantity | 1 – Wall Mount Cabinet 15U |
| Product Weight | 51.2 lbs |
