Wall Plate Amplifier with Bluetooth v4.2 – Decora Style – 50W Max – White

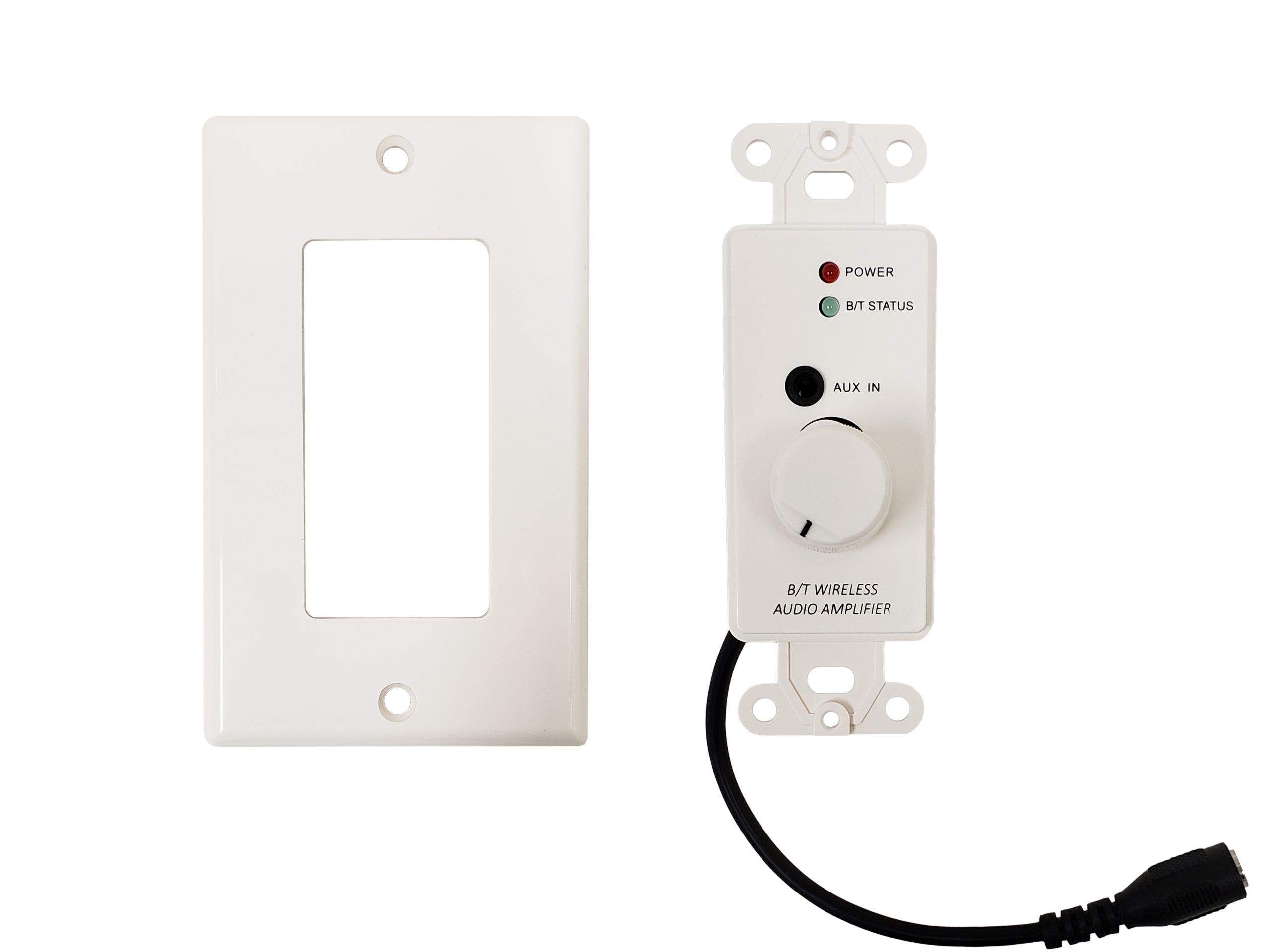

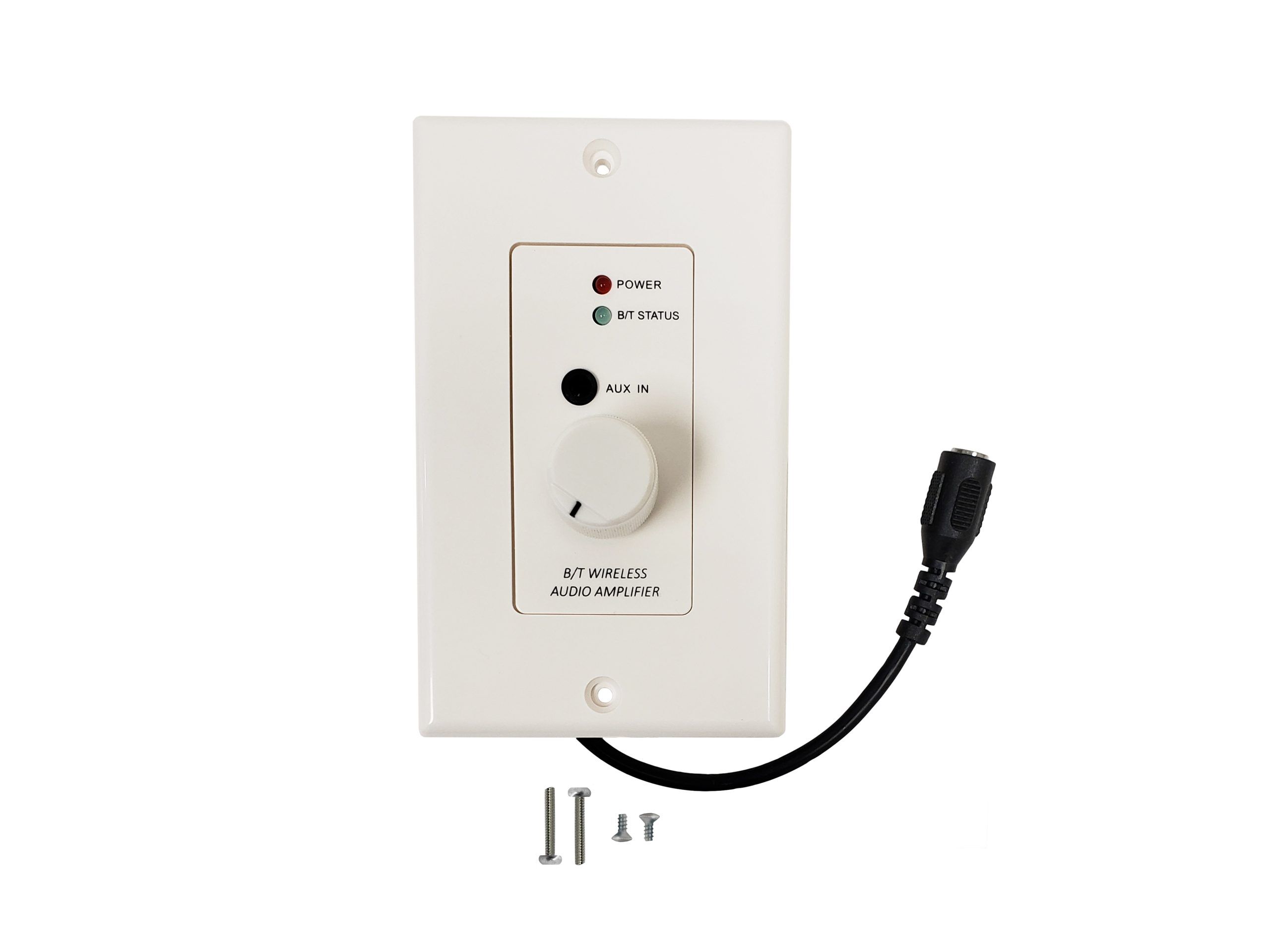

This wall plate kit consists of a Decora wall plate, amplifier and power supply. It is typically used to connect to a pair of in-wall/in-ceiling/wall-mounted speakers and control them via Bluetooth or plugging directly into them using a 3.5mm cable. They are typically used in small spaces such as bedrooms, bathrooms, garages or backyards.
Description
This wall plate kit consists of a Decora wall plate, amplifier and power supply. It is typically used to connect to a pair of in-wall/in-ceiling/wall-mounted speakers and control them via Bluetooth or plugging directly into them using a 3.5mm cable. They are typically used in small spaces such as bedrooms, bathrooms, garages or backyards.
| Physical Characteristics | |
|---|---|
| Color | White |
| Material | ABS |
| Plate Size | Single Gang |
| 3.5mm Cable Length | 6.5 Inches |
| Connector(s) | |
| Audio Inputs | Bluetooth Receiver or Stereo Audio Line Level |
| Performance | |

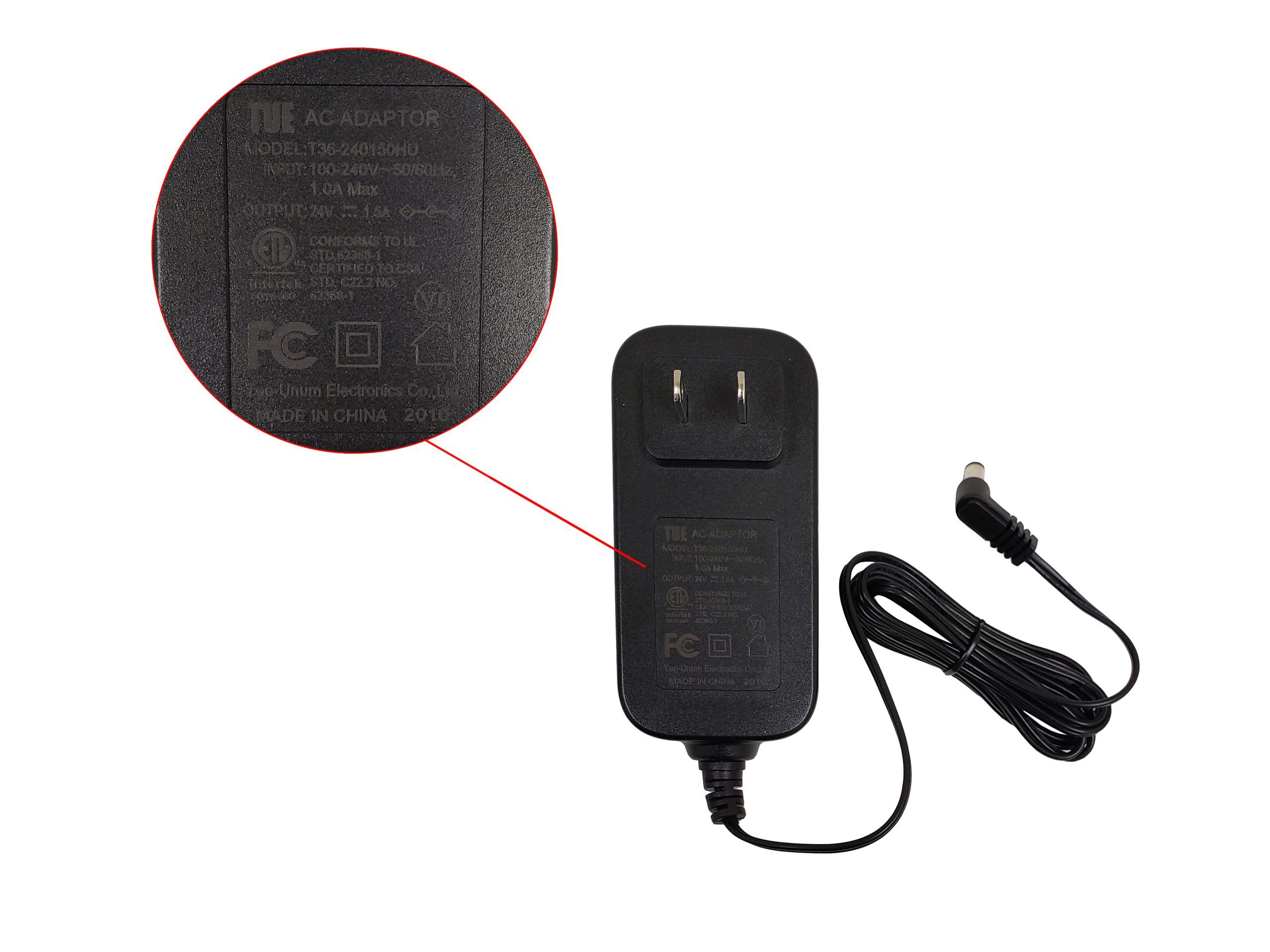

| Power Source | 24 VDC |
| Power Amplifier Type | Stereo Class-D |
| Output Power | 24W (rms) per channel (@ RL=4 ohm) |
| Total Harmonic Distortion + Noise | THD+N: 0.1% (@ RL=4 ohm, f = 1 kHz) |
| Minimum Load Resistance | 4 ohm |
| Audio Priority | B/T > Aux In |
| Bluetooth Version | B/T v4.2 compliant with apt-X |
| Bluetooth Receive Distance | 50 meters (open space) |
| Supports | 3 min link-lost time function B/T automatically switches to pairing state if reconnecting failsSpeaker protection circuit |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.50 lbs [0.22 kg] |
| Product Dimensions | 4.5 L, 2.75 W, 1.85 D inches [11.5 L, 7 W, 4.7 D cm] |
| Contents | |
| Included in Package | 1 – Wall Plate Kit |
| 1 – Pair of Screws | |
