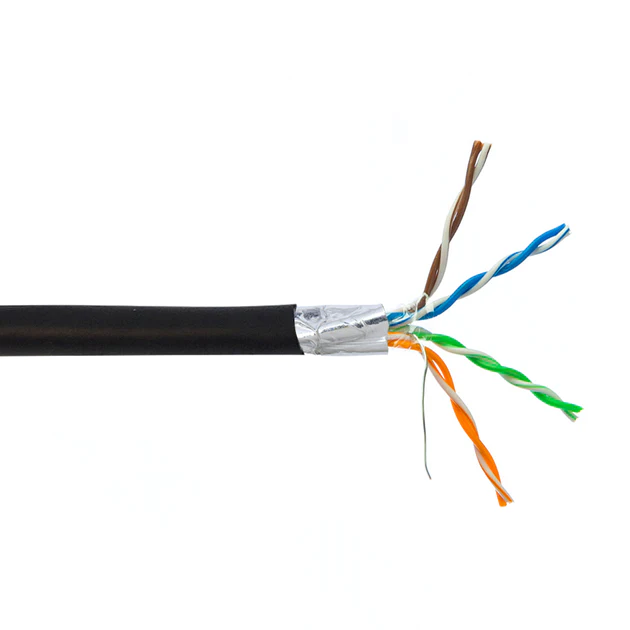

1000ft 4 Pair Cat5e 350MHz FTP Solid UV / Direct Burial Bulk Cable – Black
This bulk outdoor rated Cat5e cable is 1000 feet in length and consists of 4 pairs of 24AWG solid wires with an overall foil shield. It is typically used outdoors either above or below ground as premise wiring to connect network devices.
Description
This bulk outdoor rated Cat5e cable is 1000 feet in length and consists of 4 pairs of 24AWG solid wires with an overall foil shield. It is typically used outdoors either above or below ground as premise wiring to connect network devices.
|
Physical Characteristics
|
|||
|---|---|---|---|
| Cable Length | 1000 foot [305m] | ||
| Color | Black | ||
| Cable Diameter | 6.20±0.10mm | ||
| Number of Pairs | 4 Pairs | ||
| Wire Gauge | 24AWG Solid | ||
| Conductor Material | 100% Bare Copper | ||
| Conductor Diameter | 0.515±0.005mm | ||
| Cable Shielding | Aluminum Foil Shield | ||
| Temperature Rating | -40°C ~ +75°C | ||
| UV | Yes | ||
| Jacket Material | LLDPE | ||
| Jacket Rating | Direct Burial / UV | ||
| Jacket Average Thickness | 0.65mm | ||
| Jacket Minimum Thickness | 0.60mm | ||
| Insulation | PE | ||
| Insulation Average Thickness | 0.228mm | ||
| Insulation Minimum Thickness | 0.205mm | ||
| Insulation Diameter | 0.97±0.01mm | ||
| Assembly Diameter | 4.95±0.20mm | ||
| Twisted Pair Diameter | 1.94±0.02mm | ||
| Drain Wire (mm) | 0.40 TC | ||
| Rip Cord | Yes – Nylon | ||
| Bend Radius | 80mm | ||
|
Electrical Characteristics
|
|||
| Before Aging | Tensile Strength (Mpa): >=10.6 Elongation (%): >=300 |
||
| Aging Condition (ºC x hrs) |
100×168 | ||
| After Aging | Tensile Strength (Mpa): >=85% of unaged Elongation (%): >=50% of unaged |
||
|
Environmental
|
|||
| RoHS | Yes | ||
|
Packaging Information
|
|||
| Package Quantity | 1 | ||
| Product Weight | 30.9lbs [14kg] | ||
