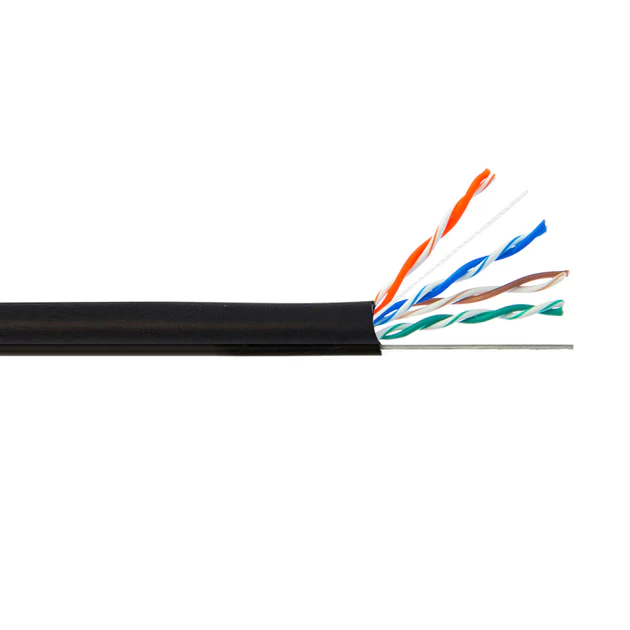

1000ft 4 Pair Cat5e 350MHz UTP Solid UV / Aerial With Messenger Bulk Cable – Black
This bulk outdoor rated Cat5e cable with messenger is 1000 feet in length and consists of 4 pairs of 24AWG solid wires. It is typically used outdoors as an aerial cable as premise wiring to connect network devices.
Description
This bulk outdoor rated Cat5e cable with messenger is 1000 feet in length and consists of 4 pairs of 24AWG solid wires. It is typically used outdoors as an aerial cable as premise wiring to connect network devices.
|
Physical Characteristics
|
|||
|---|---|---|---|
| Cable Length | 1000 foot [305m] | ||
| Color | Black | ||
| Cable Diameter | 5.40 mm | ||
| Number of Pairs | 4 Pairs | ||
| Color of Pairs | White-Brown, White-Orange, White-Green, White-Blue | ||
| Wire Gauge | 24AWG Solid | ||
| Cable Shielding | None | ||
| Temperature Rating | -40°C ~ +75°C | ||
| Conductor Material | 100% Bare Copper | ||
| Conductor Diameter | 0.50±0.005mm | ||
| Jacket Material | LLDPE | ||
| Jacket Rating | Direct Burial / UV | ||
| Jacket Average Thickness | 0.80×0.65mm | ||
| Jacket Minimum Thickness | 0.72×0.60mm | ||
| Insulation | PE | ||
| Insulation Average Thickness | 0.205mm | ||
| Insulation Minimum Thickness | 0.180mm | ||
| Insulation Diameter | 0.91mm | ||
| Assembly Diameter | 3.80±0.10mm | ||
| Twisted Pair Diameter | 1.92mm | ||
| Messenger (Galvanize Steel) Diameter | 1.30mm | ||
| Rip Cord | Yes – Nylon | ||
|
Electrical Characteristics
|
|||
| Before Aging | Tensile Strength (Mpa): >=10.6 Elongation (%): >=300 |
||
| Aging Condition (ºC x hrs) |
100×168 | ||
| After Aging | Tensile Strength (Mpa): >=85% of unaged Elongation (%): >=50% of unaged |
||
|
Environmental
|
|||
| RoHS | Yes | ||
|
Packaging Information
|
|||
| Package Quantity | 1 | ||
| Product Weight | 37.15 lbs | ||
