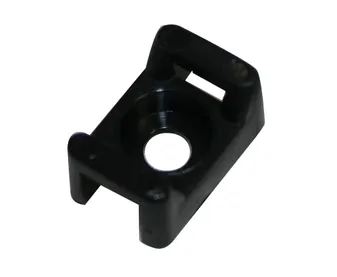

100pk Cable Tie Screw Mount Base
These cable tie screw mount bases are used to fasten cable-tied bundles to flat surfaces. The cradle design at the top of the mount allows for the bundle to fit snug. The mounts can be screwed directly to the desired surface.
Description
These cable tie screw mount bases are used to fasten cable-tied bundles to flat surfaces. The cradle design at the top of the mount allows for the bundle to fit snug. The mounts can be screwed directly to the desired surface.
|
Physical Characteristics
|
|
|---|---|
| Color | Black / Natural |
| Type | Cable Tie Screw Mount |
| Mount Size | 0.60” L x 0.37” W x 0.098” H [15.2×9.4×6.8mm] 0.70” L x 0.5” W x 0.3” H [17.8×12.7×7.5mm] 0.87” L x 0.64” W x 0.38” H [22.0×16.2×9.6mm] 1.00” L x 0.64” W x 0.189” H [25.4×16.2×10.8mm] |
| Hole Diameter | 0.130 Inches [CT-SM01] 0.170 Inches [CT-SM02] 0.205 Inches [CT-SM03, [CT-SM04] |
| Max Cable Tie Width | 0.189 inch (50lb Tensile Tie) [CT-SM01, CT-SM02] 0.300 inch (120lb Tensile Tie) [CT-SM03] 0.354 inch (175lb Tensile Tie) [CT-SM04] |
| Material | UV and Weather Resistant Nylon 66 |
| Flame Retardant | 94V-2 |
| Application Temperature | -40°C to +85°C [-40°F to +185°F] |
| Operating Temperature | -10°C to +85°C [26°F to +185°F] |
| Application | Cable Bundling |
| Mounting | Screw Mount |
|
Packaging Information
|
|
| Product Weight | 0.11 lbs [0.05kg] 0.22 lbs [0.10kg] 0.31 lbs [0.14kg] 0.46 lbs [0.21kg] |
|
Contents
|
|
| Included in Package | 1 pack of 100 |
