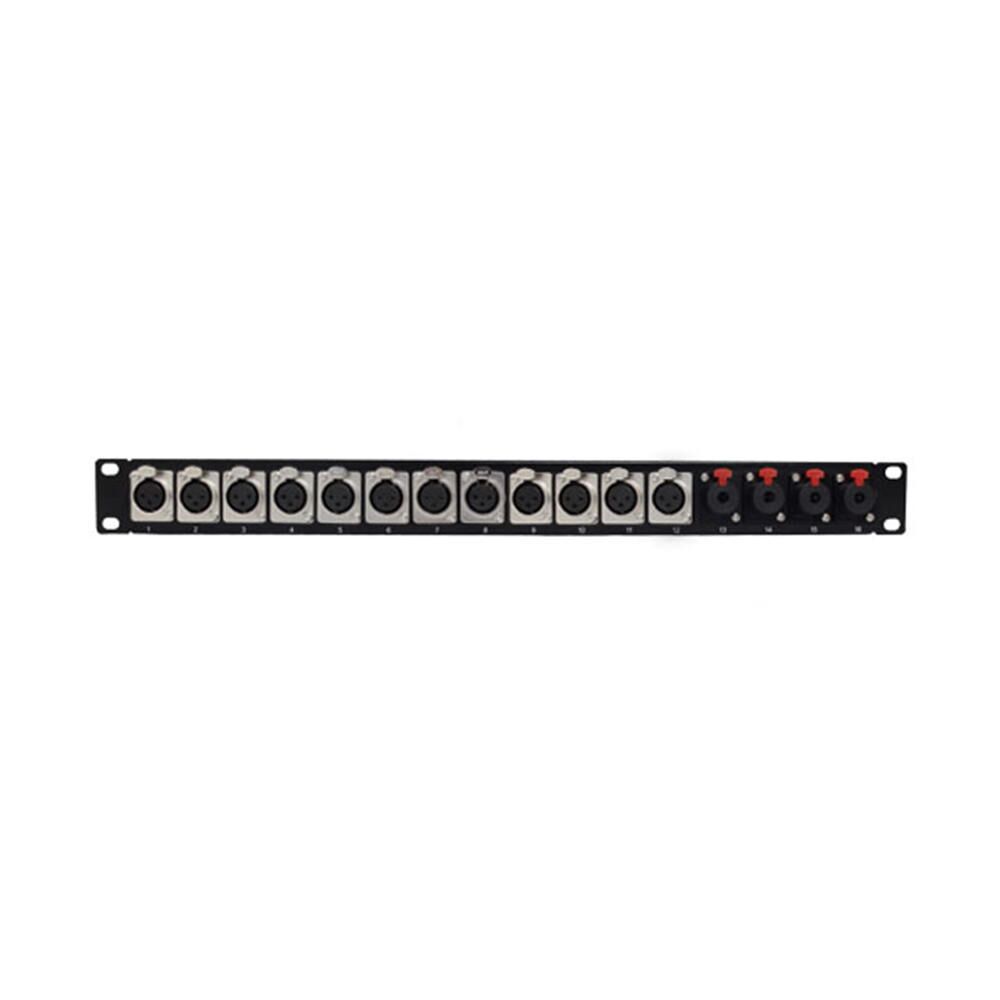

12-Port XLR Female + 4-port TRS Female patch panel, 19 inch rackmount 1U
This 12 port patchbay has four 1/4″ female and twelve locking XLR female connectors on the front and solder connectors on the back. It is meant to be mounted on a 19″ rack or cabinet and used as a return snake patch panel.
Description
This 12 port patchbay has four 1/4″ female and twelve locking XLR female connectors on the front and solder connectors on the back. It is meant to be mounted on a 19″ rack or cabinet and used as a return snake patch panel.
|
Physical Characteristics
|
|
|---|---|
| Color | Black Powder Coated |
| Material | Steel |
| Connector Type | 4 – 1/4″ TRS Female 12 – Locking XLR Female |
| Ports | 16 |
| Product Dimensions | 19″ W x 1.75″ H [48 cm W x 4.45 cm H] |
| Rackmountable | Yes, 19″ Rack or Cabinet |
|
Environmental
|
|
| RoHS | Yes |
|
Packaging Information
|
|
| Package Quantity | 1 – Patch Panel |
| Product Weight | 1.6 lbs [0.73 kg] |
