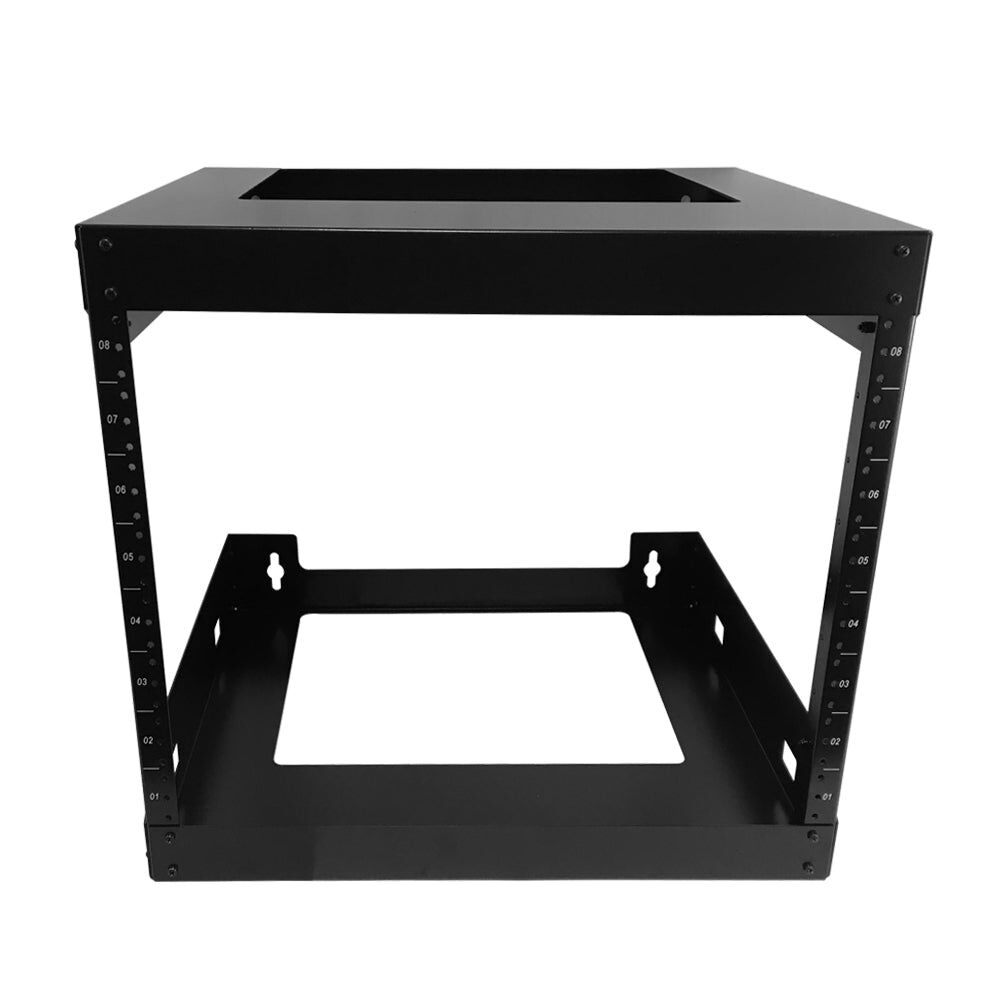

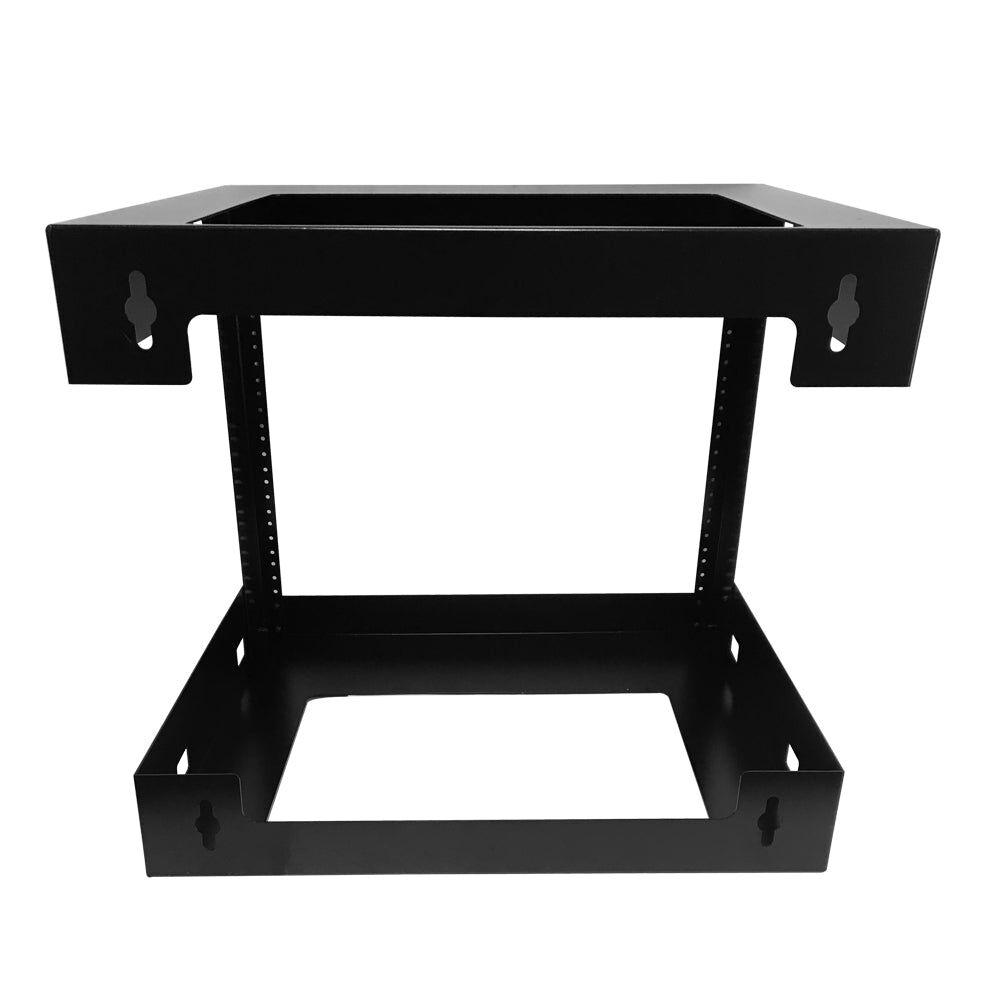

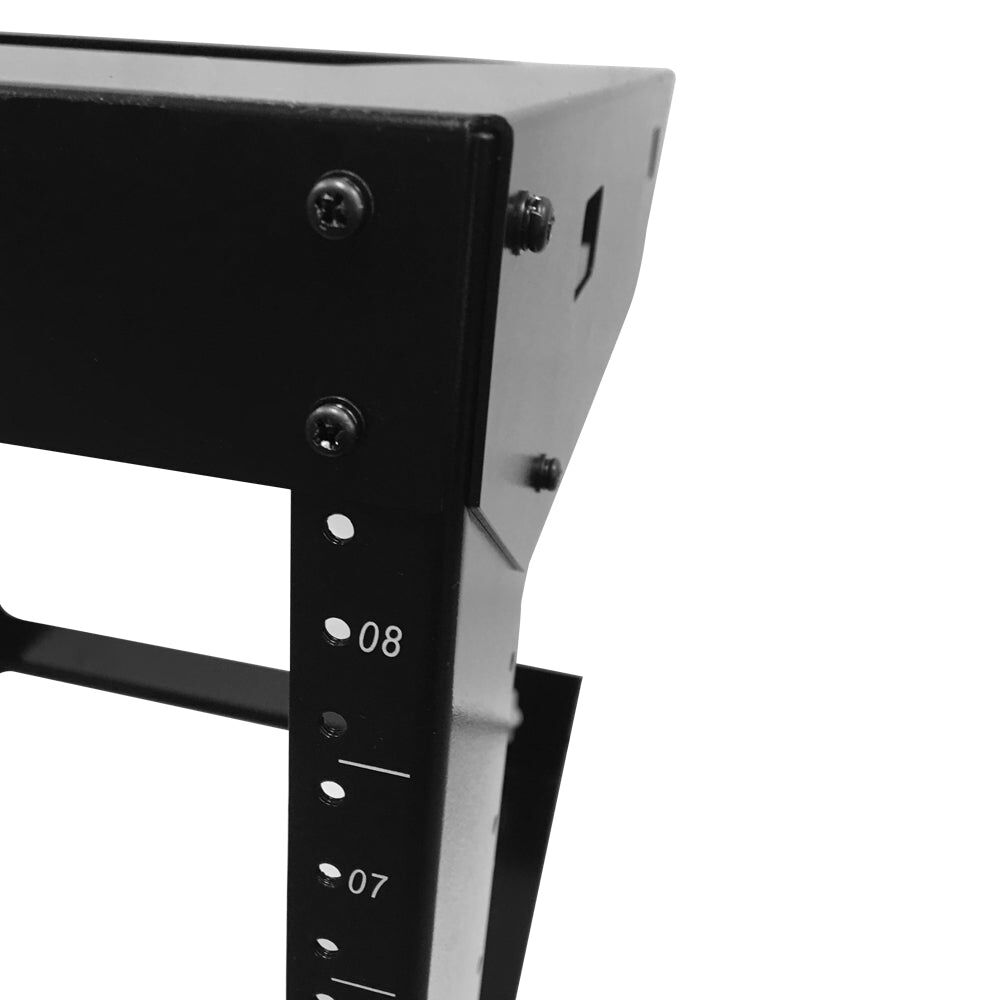

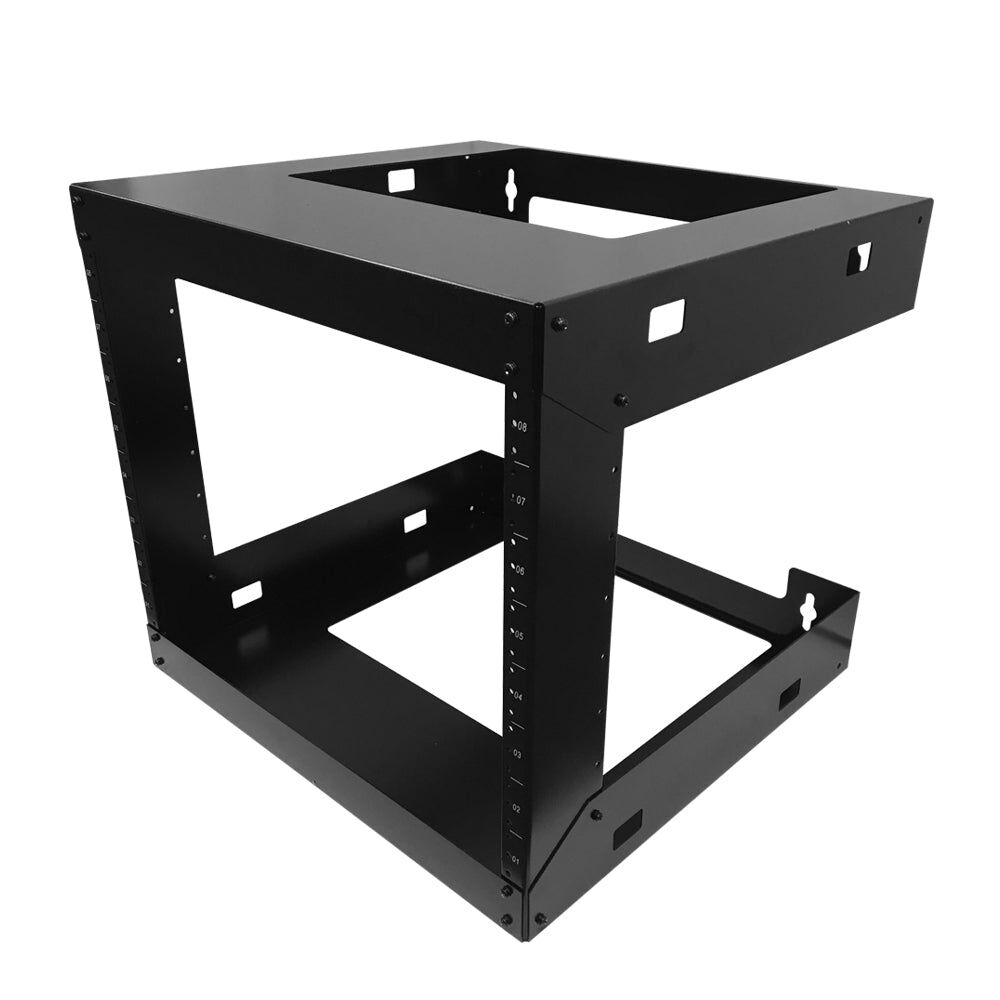

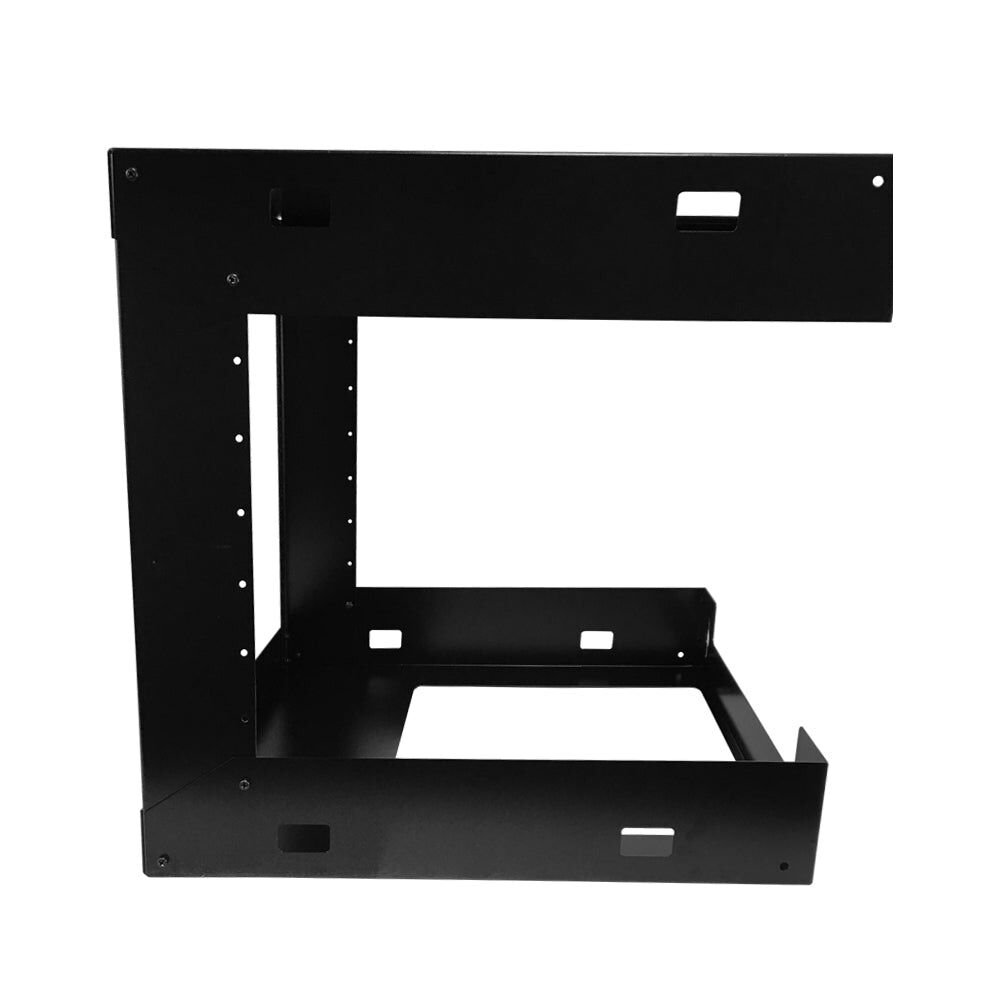

19 inch Open Frame Wall Mount Rack – 18 inch Depth – 8U
Designed for the secure installation of 19-inch wide networking equipment, this open frame wall mount rack stands at 8U in height and offers an 18-inch depth.
Description
The 8U open frame wall mount rack, with an 18-inch depth, is ideal for securely mounting 19-inch wide networking equipment. This compact yet sturdy rack provides efficient space-saving solutions for network organization and management.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Finish | Powder Painted |
| Material | SPCC Cold Rolled Steel |
| Material Thickness | Rails:2.0mm, Others: 1.5mm |
| Mounting Height in units | 8U |
| Mounting Height in inches | 14 inch |
| Mounting Depth | 18 inch |
| Rail Mounting Style | 10-32 Threaded Hole |
| Overall Dimensions | 17.75H x 19.75W x 18D inch |
| Load Capacity | 150 lbs [68 kg] |
| Wall Mounting Hardware | Not Included |
| Equipment Mounting Hardware | Included |
| Approvals | |
| ANSI/ | Yes |
| RS-310-DCompliant | Yes |
| IEC60297-2Compliant | Yes |
| DIN41494Compliant | Yes |
| PART1Compliant | Yes |
| PART7Compliant | Yes |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 19.84 lbs [9.0 kg] |
| Contents | |
| Included in Package | 1 – Wall Mount Bracket (Un-Assembled, Flat Packed) |
| 16 – Assembly Screws | |
| 20 – 10/32 Screws | |
