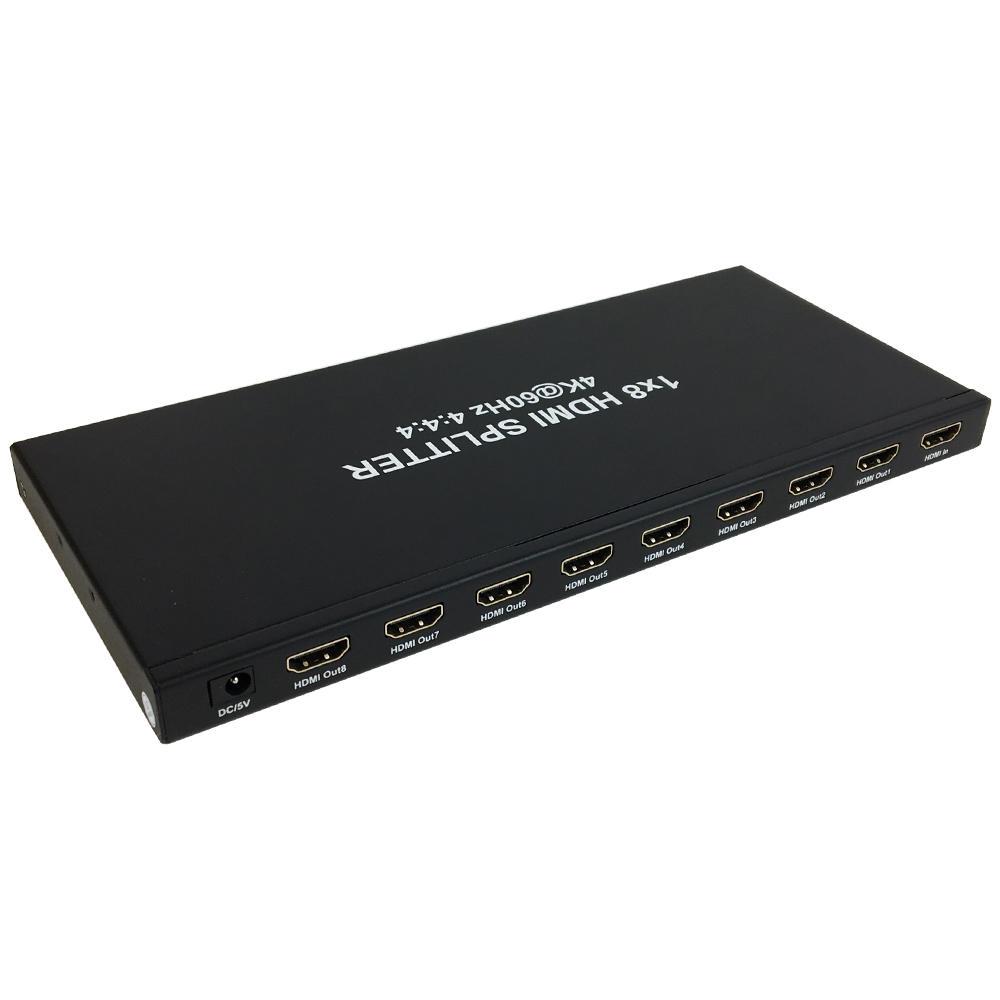

1×8 HDMI Splitter, 4Kx2K@60Hz, EDID, HDCP 2.2, YUV 4:4:4
This 1×8 HDMI splitter enables you to display one HDMI device to eight HDMI displays simultaneous. It is typically used to connect a HDMI source such as DVD player, Blu-ray player, satellite receiver or gaming system to HDMI displays such as HDTVs, HD projectors or HDMI monitors. The splitter performs at HDMI 2.0 resolutions – 4K at 60Hz with 4:4:4 chroma subsampling and a transmit bandwidth up to 18Gbps. It also supports HDCP 2.2 and is backward compatible with 4K 30Hz and 1080p displays.
Description
This 1×8 HDMI splitter enables you to display one HDMI device to eight HDMI displays simultaneous. It is typically used to connect a HDMI source such as DVD player, Blu-ray player, satellite receiver or gaming system to HDMI displays such as HDTVs, HD projectors or HDMI monitors. The splitter performs at HDMI 2.0 resolutions – 4K at 60Hz with 4:4:4 chroma subsampling and a transmit bandwidth up to 18Gbps. It also supports HDCP 2.2 and is backward compatible with 4K 30Hz and 1080p displays.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Housing | Metal Enclosure |
| Operating Temperature | -5°C ~ 40°C |
| Power | |
| Input Voltage | 240V |
| Power Supply | 5V/2A DC |
| Power Consumption | 5W (Max) |
| Compatibility | |
| PC to Monitor | Yes |
| PC to TV | Yes |
| DVD to Monitor | Yes |
| DVD to TV | Yes |
| Connector(s) | |
| Input | 1 x HDMI Female |
| Output | 8 x HDMI Female |
| Performance | |
| HDMI Resolution | Up to Ultra HD 4K*2K (3840×2160@60Hz YUV 4:4:4) |
| Transmission Range | 15m (Max) |
| HDMI Version | 2.0 |
| Bandwidth | 18Gbps |
| 3D Video | Yes |
| HDCP Compliant | Yes, Supports HDCP2.2/1.4 |
| HDR Support | Yes |
| Audio | LPCM 7.1, Dolby TrueHD, Dolby Digital Plus, and DTS-HDMaster Audio |
| Approvals | |
| Power Adapter | c(UL)us |
| Environmental | |
| RoHS | Yes |
| Certification(s) | |
| CE | Yes |
| FCC | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.60 lbs [0.27kg] |
| Package Weight | 0.88 lbs [0.4kg] |
| Contents | |
| Included in Package | 1 – HDMI Splitter |
| 1 – DC5V Power Adapter | |
| 1 – Manual | |
