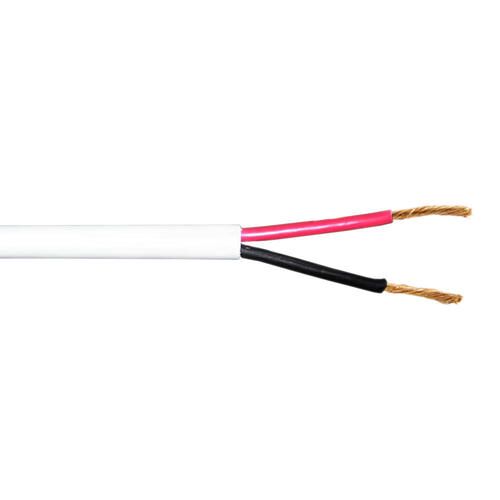

250ft 2C 12AWG In-Wall Bulk Speaker Cable CMR – White
This bulk in-wall speaker cable is made from oxygen free multi-stranded copper cable to capture all highs & lows for optimum audio performance. It is typically run in walls and used to connect speakers to amplifiers.
Description
This bulk in-wall speaker cable is made from oxygen free multi-stranded copper cable to capture all highs & lows for optimum audio performance. It is typically run in walls and used to connect speakers to amplifiers.
| Physical Characteristics | |
|---|---|
| Cable Length | 250 foot [76.2m] |
| Color | White |
| Number of Conductors | 2 Conductor |
| Temperature Rating | -20℃ ~ 75℃ |
| Wire Gauge | 12 AWG |
| Conductor Material | 100% Bare Oxygen Free Copper (OFC) |
| Stranding | 65 * 30AWG |
| Jacket Material | PVC – Polyvinyl Chloride |
| Jacket Rating | CMR [Riser Rated] |
| Nominal Jacket Thickness | 0.45mm |
| Nominal Overall Diameter | 7.3mm |
| Nominal Insulation Thickness | 0.38mm |
| Nominal Insulation Diameter | 3.2mm |
| Max Voltage Rating | 300V |
| Nominal Conductor DCR | 1.6 Ohm/1000ft |
| Nominal Capacitance Conductor-to-Conductor | 3 pF/ft |
| Mechanical Characteristics | |
| Before Tensile Strength (Mpa) | >=13.8 |
| Aging Elongation (%) | >=100 |
| Aging Condition (ºC x hrs) | 100×168 |
| After Tensile Strength (Mpa) | >=85% of unaged |
| Aging Elongation (%) | >=50% of unaged |
| Cold Bend (-20±2º Cx4hrs) | No Crack |
| Environmental | |
| Reach | Yes |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 17.15 lbs [7.78kg] |
