Description

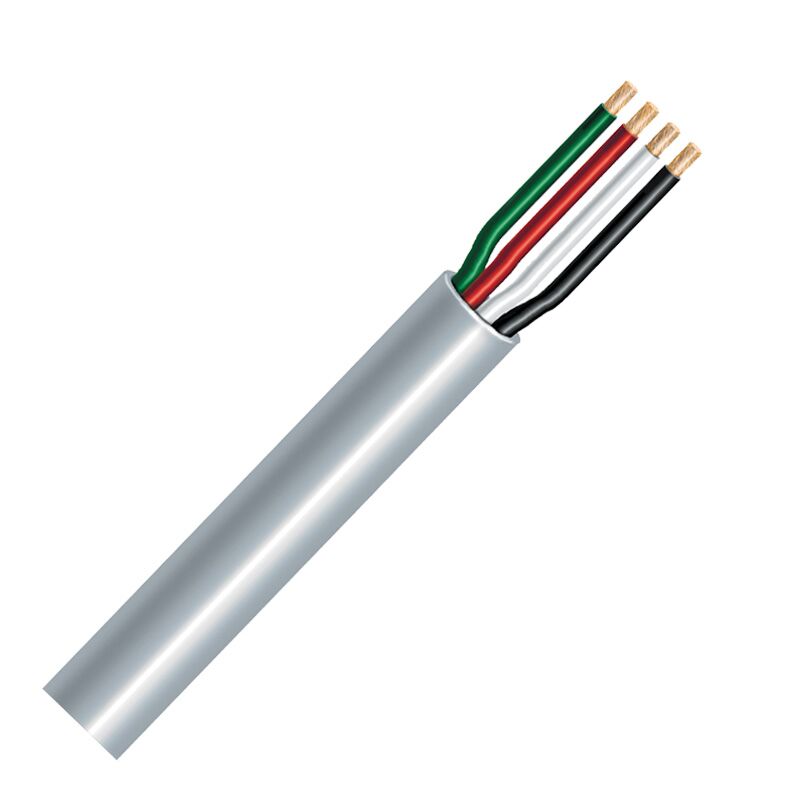

This bulk in-wall speaker cable is made from oxygen free multi-stranded copper cable to capture all highs & lows for optimum audio performance. It is typically run in walls and used to connect speakers to amplifiers.
No products in the cart.
This bulk in-wall speaker cable is made from oxygen free multi-stranded copper cable to capture all highs & lows for optimum audio performance. It is typically run in walls and used to connect speakers to amplifiers.
This bulk in-wall speaker cable is made from oxygen free multi-stranded copper cable to capture all highs & lows for optimum audio performance. It is typically run in walls and used to connect speakers to amplifiers.
Physical Characteristics
|
|
---|---|
Cable Length | 500 foot [152.4m] |
Color | White |
Number of Conductors | 4 Conductor |
Temperature Rating | -20℃ ~ 75℃ |
Wire Gauge | 14 AWG |
Conductor Material | 100% Bare Oxygen Free Copper (OFC) |
Stranding | 105 * 34AWG |
Jacket Material | PVC – Polyvinyl Chloride |
Jacket Rating | CMR [Riser Rated] |
Nominal Jacket Thickness | 0.45mm |
Nominal Overall Diameter | 7.5mm |
Nominal Insulation Thickness | 0.38mm |
Nominal Insulation Diameter | 2.8mm |
Max Voltage Rating | 300V |
Nominal Conductor DCR | 2.53 Ohm/1000ft |
Nominal Capacitance Conductor-to-Conductor | 22 pF/ft |
Mechanical Characteristics
|
|
Before Tensile Strength (Mpa) | >=13.8 |
Aging Elongation (%) | >=100 |
Aging Condition (ºC x hrs) |
100×168 |
After Tensile Strength (Mpa) | >=85% of unaged |
Aging Elongation (%) | >=50% of unaged |
Cold Bend (-20±2º Cx4hrs) |
No Crack |
Approvals
|
|
c(ETL)us | Yes |
Environmental
|
|
Reach | Yes |
RoHS | Yes |
Packaging Information
|
|
Package Quantity | 1 |
Product Weight | 47.86 lbs |
