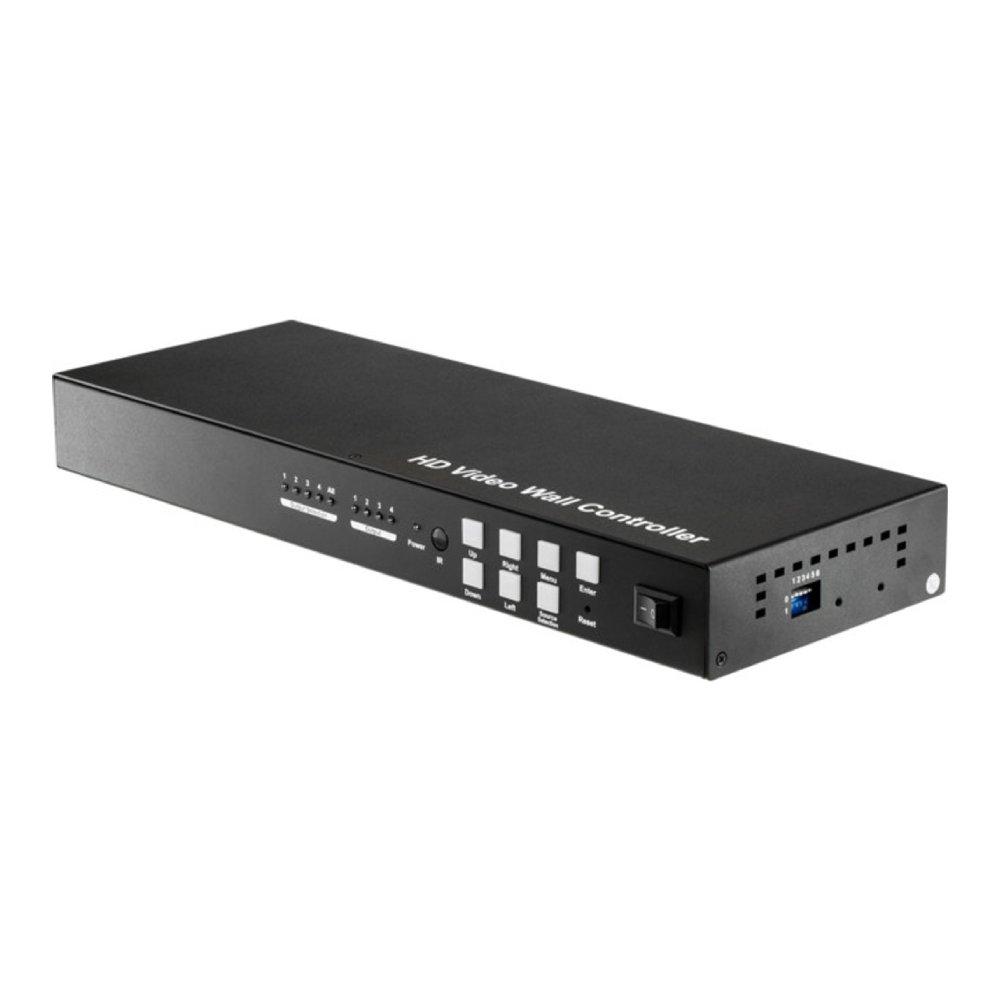

2×2 Video Wall Controller
2×2 Video Wall Controller designed to help users create larger than life visual experiences and transform their interior spaces. Stretch your 4K 60Hz HDMI signal over 4 HDMI displays and re-invent your media experience. Users can choose from 8 different video wall modes/configurations to custom tailor their video wall to their environment; modes include 2×2 | 1×2 | 2×1 | 1×3 | 3×1 | 1×4 | 4×1 | 1×4 Splitter. In the 2×2 configuration, users can independently rotate each output image 180° so that they may minimize the bezel space on their video wall.
Description
2×2 Video Wall Controller designed to help users create larger than life visual experiences and transform their interior spaces. Stretch your 4K 60Hz HDMI signal over 4 HDMI displays and re-invent your media experience. Users can choose from 8 different video wall modes/configurations to custom tailor their video wall to their environment; modes include 2×2 | 1×2 | 2×1 | 1×3 | 3×1 | 1×4 | 4×1 | 1×4 Splitter. In the 2×2 configuration, users can independently rotate each output image 180° so that they may minimize the bezel space on their video wall.

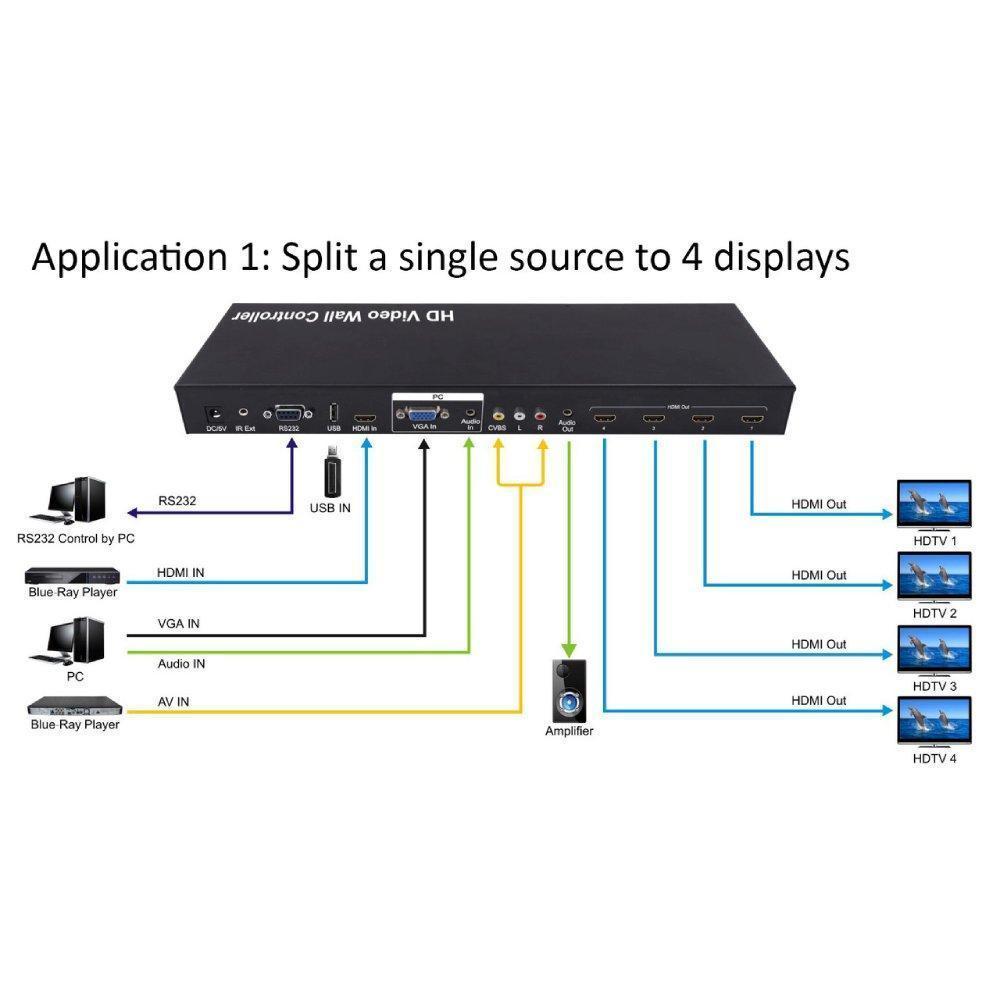

- Select 1 of 4 source and distribute to 4 displays
- Supports USB/VGA/Composite/HDMI input
- Supports resolution up to 1080p Full HD
- Supports 180° rotation on individual output or all outputs

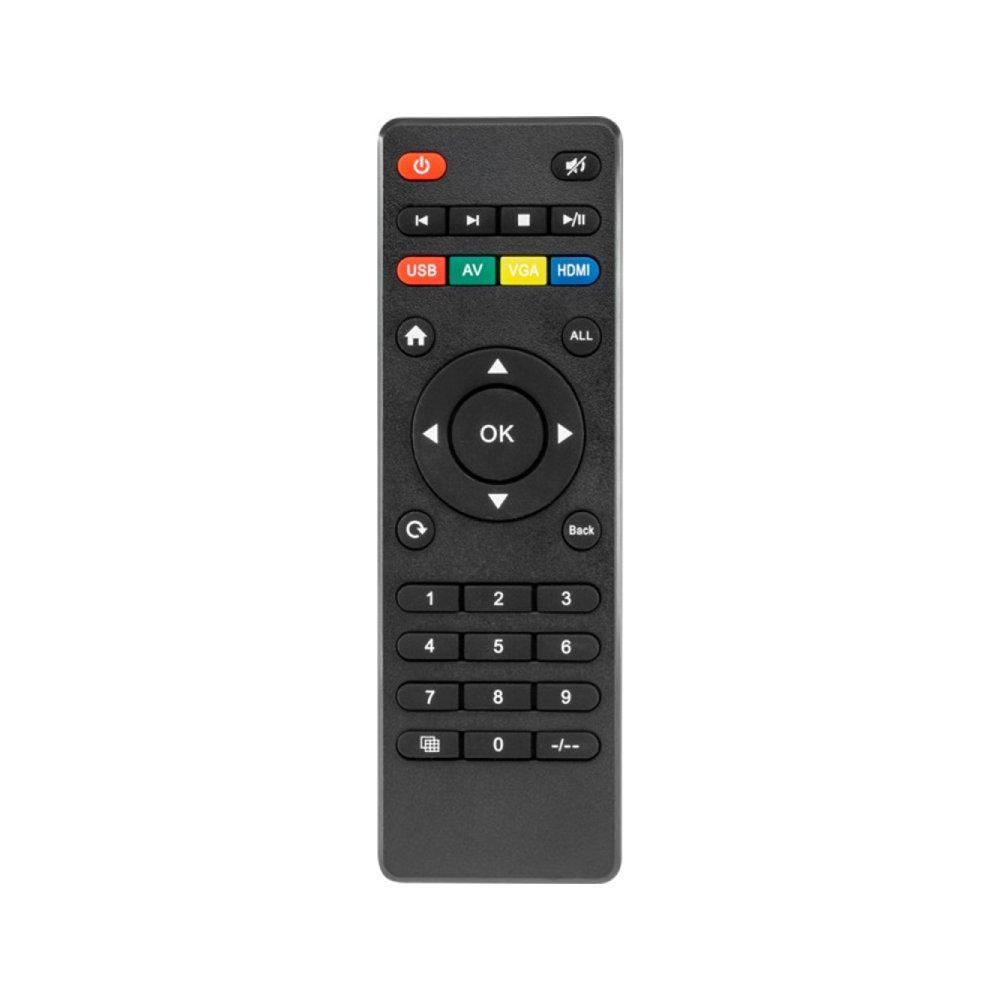

- Supports Panel control, IR control, RS232 control
- Create a 2×2 Video Wall Controller from any source tofour displays
- Supports multi-level cascading to create 3×3, 4×4…Video Wall (Max 10×10)
| Operating Temperature Range | 0 to +35°C (32 to +95°F) |
| Operating Humidity Range | 5 to 90 % RH (no condensation) |
| Input Video Signal | 0.5-1.0 volts p-p |
| Input DDC Signal | 5 volts p-p (TTL) |
| Video Format Supported | DTV/HDTV: 1080P/1080i/720P/ 576P/480P/576i/480i |
| Audio Format Supported | LPCM |

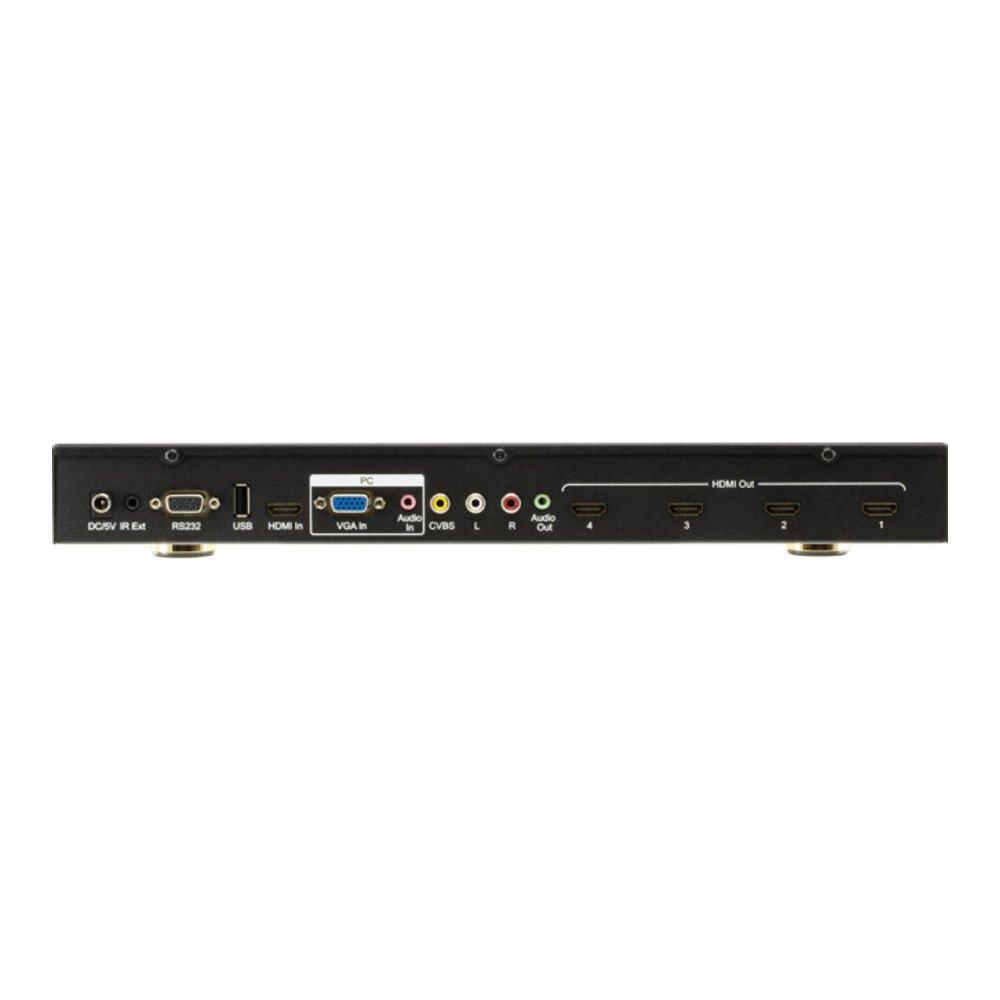

| Input ports | 1xHDMI, 1xUSB, 1xVGA, 1xAV |
| Output ports | 4xHDMI |
| Splitter mode | 1×4 HDMI Splitter |
| Video wall mode | 2×2,3×3,4×4……10×10 video wall |
| Control Way | Panel control, IR control, RS232 control |
| Power consumption | 15watts(Maximun) |
| Dimension (mm) | L380.6XW136.6XH43.5 mm |
| Weight | 1725g |
