8×8 HDMI 4K Matrix – 4K*[email protected] – YUV 4:4:4 – 18Gbps – HDCP 2.2in/2.2out – IR control

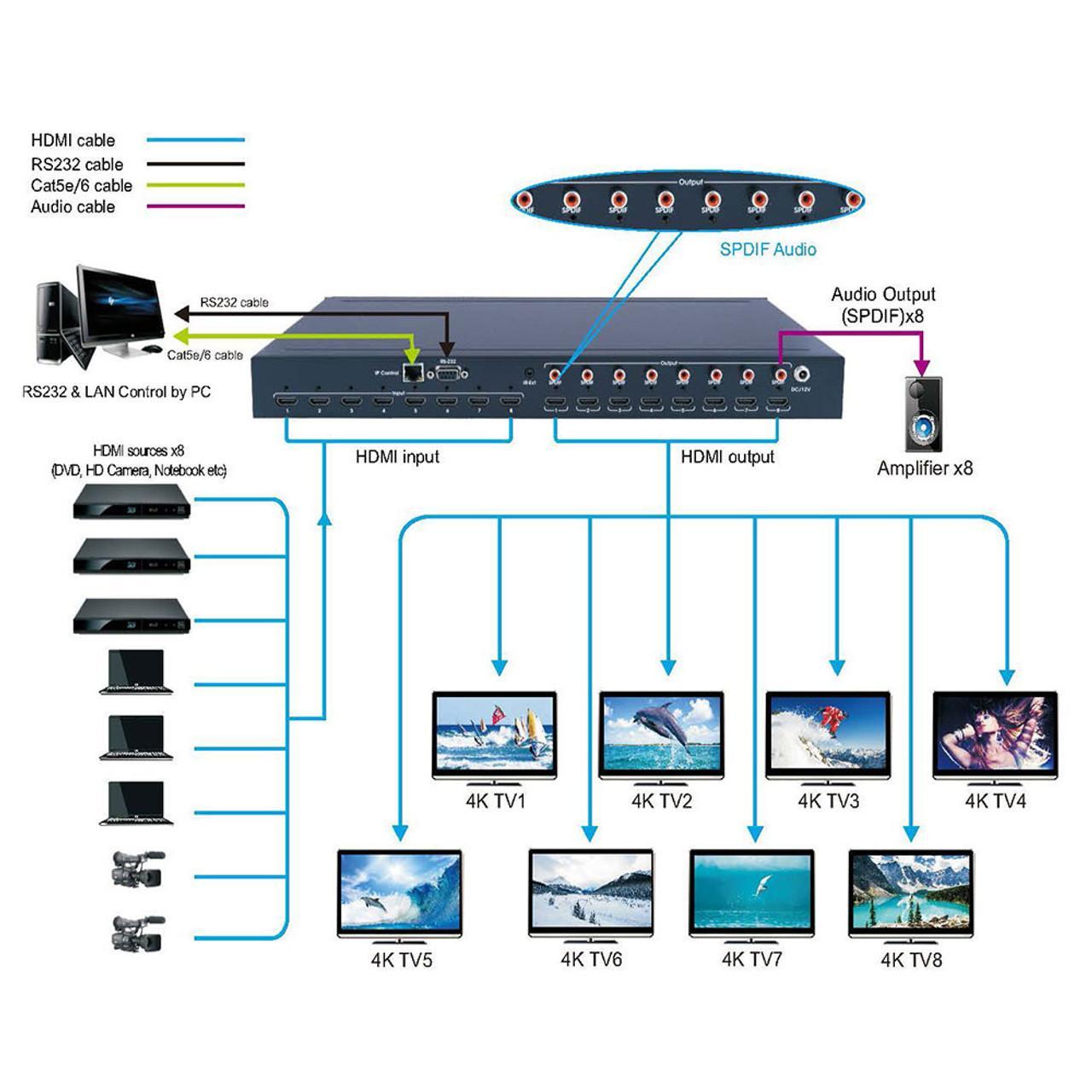

This 8×8 HDMI matrix switch enables you to connect up to eight HDMI sources to up to eight HDMI displays. Any one of the eight inputs can be displayed on any one of the eight outputs. It is typically used to connect HDMI sources such as DVD players, Blu-ray players, satellite receivers or gaming systems to HDMI displays such as HDTVs, HD projectors or HDMI monitors.
$1,829.99
Description
This 8×8 HDMI matrix switch enables you to connect up to eight HDMI sources to up to eight HDMI displays. Any one of the eight inputs can be displayed on any one of the eight outputs. It is typically used to connect HDMI sources such as DVD players, Blu-ray players, satellite receivers or gaming systems to HDMI displays such as HDTVs, HD projectors or HDMI monitors.
|
Physical Characteristics
|
|
|---|---|
| Color | Black |
| Housing | Metal Enclosure |
| Operating Temperature | -20° ~ 60°C |
|
Power
|
|
| Input Voltage | 125 V |
| Power Supply (Transmitter) | 12 Volt DC Converter |
|

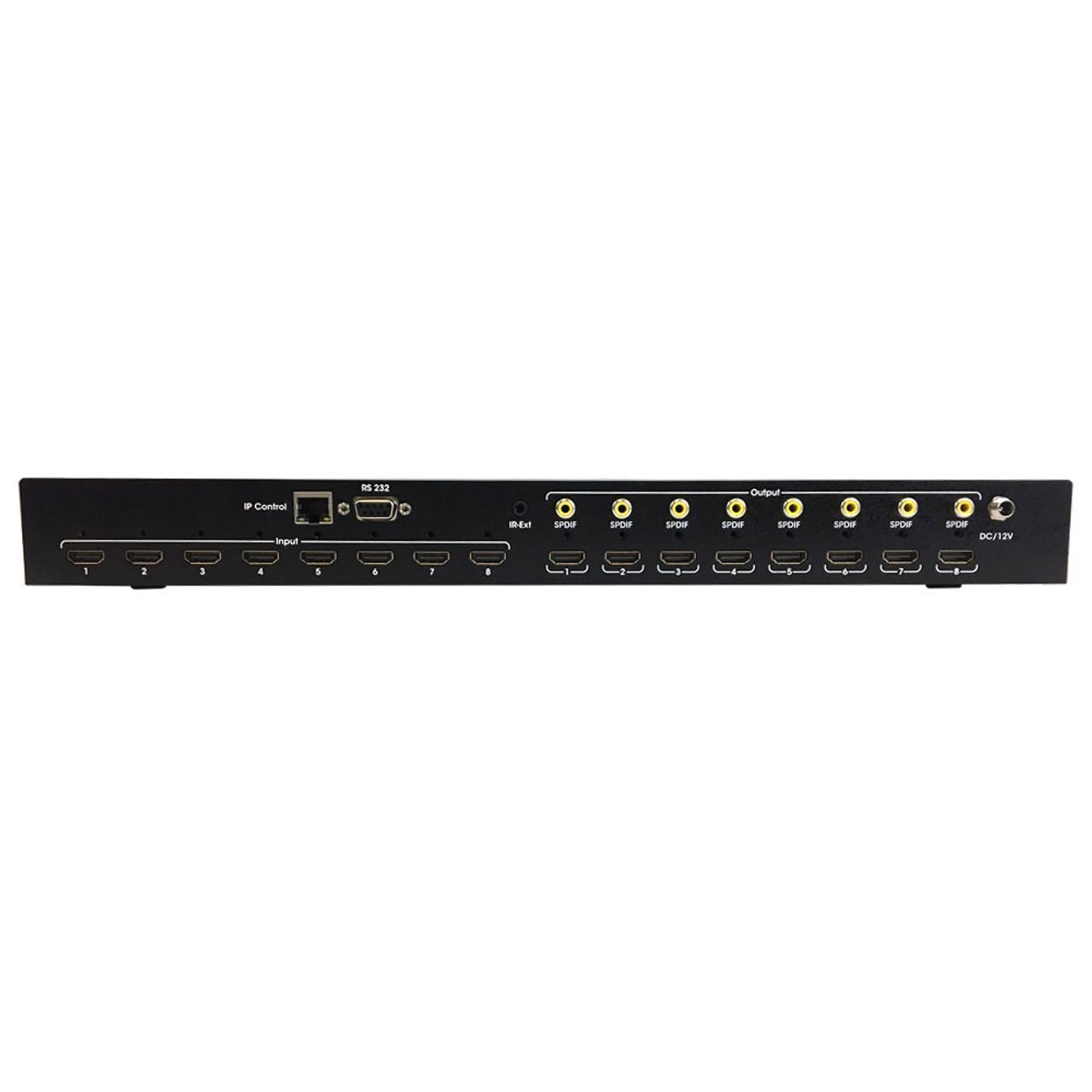

Connector(s)
|
|
| Input | 8 x HDMI Female |
| Output | 8 x HDMI Female, 8 x SPDIF |
|
Performance
|
|
| Video | 480i/ 480p/ 576p / 576i / 720p/ 1080i/ [email protected] / 4K*[email protected] |
| Audio | Dolby True HD, DTS-HD Master Audio |
| HDMI Version | HDMI 2.0 ([email protected] YUV4:4:4) |
| Bandwidth | 18 Gbps |
| HDCP Compliant | Yes, HDCP2.2/1.4 input, HDCP2.2/1.4 output |
| IR Control | Yes, 38 kHz |
| 3D Compliant | Yes |
|
Approvals
|
|
| Power Adapter | c(UL)us |
|
Environmental
|
|
| RoHS | Yes |
|
Certification(s)
|
|
| CE | Yes |
| FCC | Yes |
|
Packaging Information
|
|
| Package Quantity | 1 |
| Product Weight | 6.05 lbs [2.7 kg] |
|

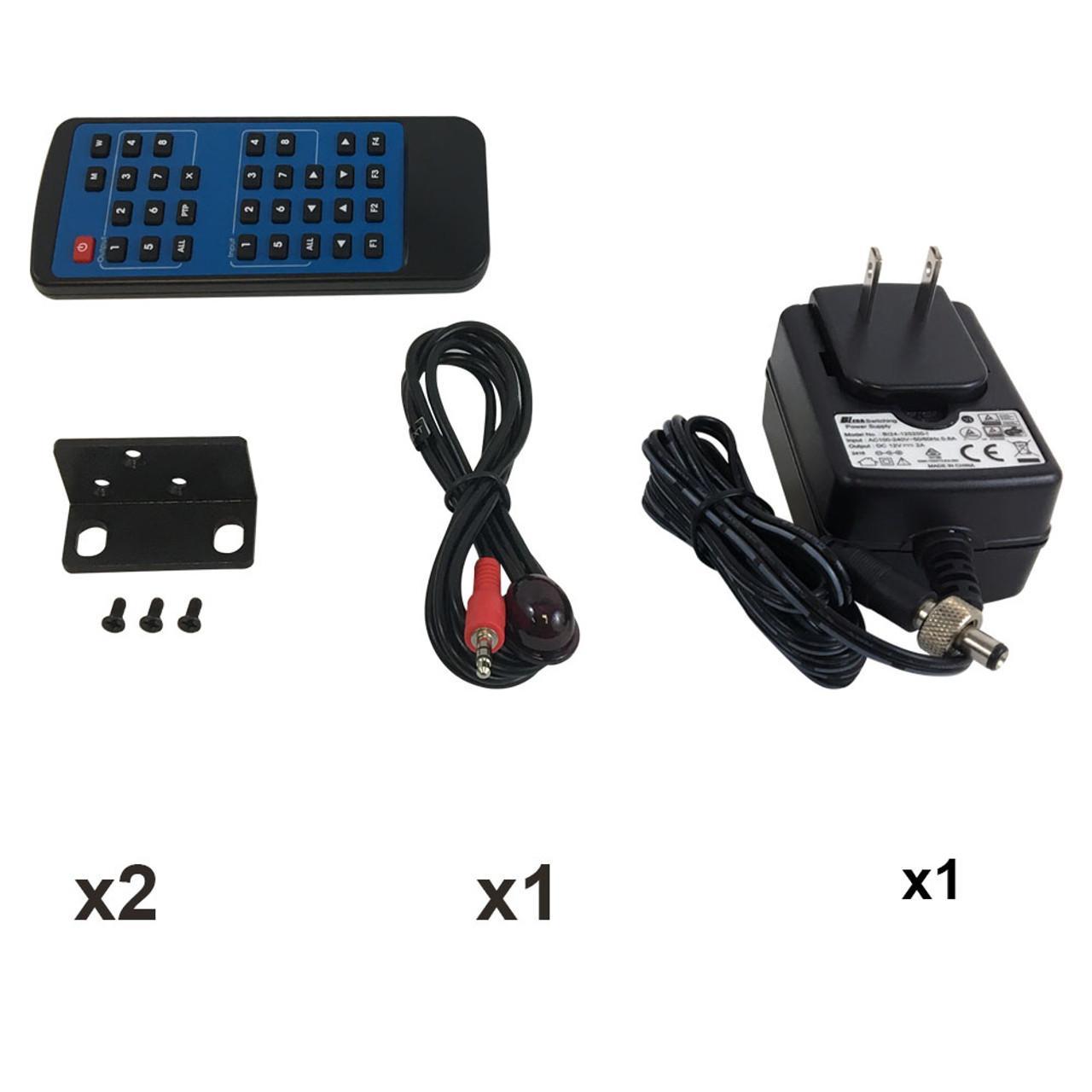

Contents
|
|
| Included in Package | 1 – HDMI Matrix |
| 1 – IR Ext | |
| 1 – DC12V Power Adapter | |
| 2 – Brackets | |
