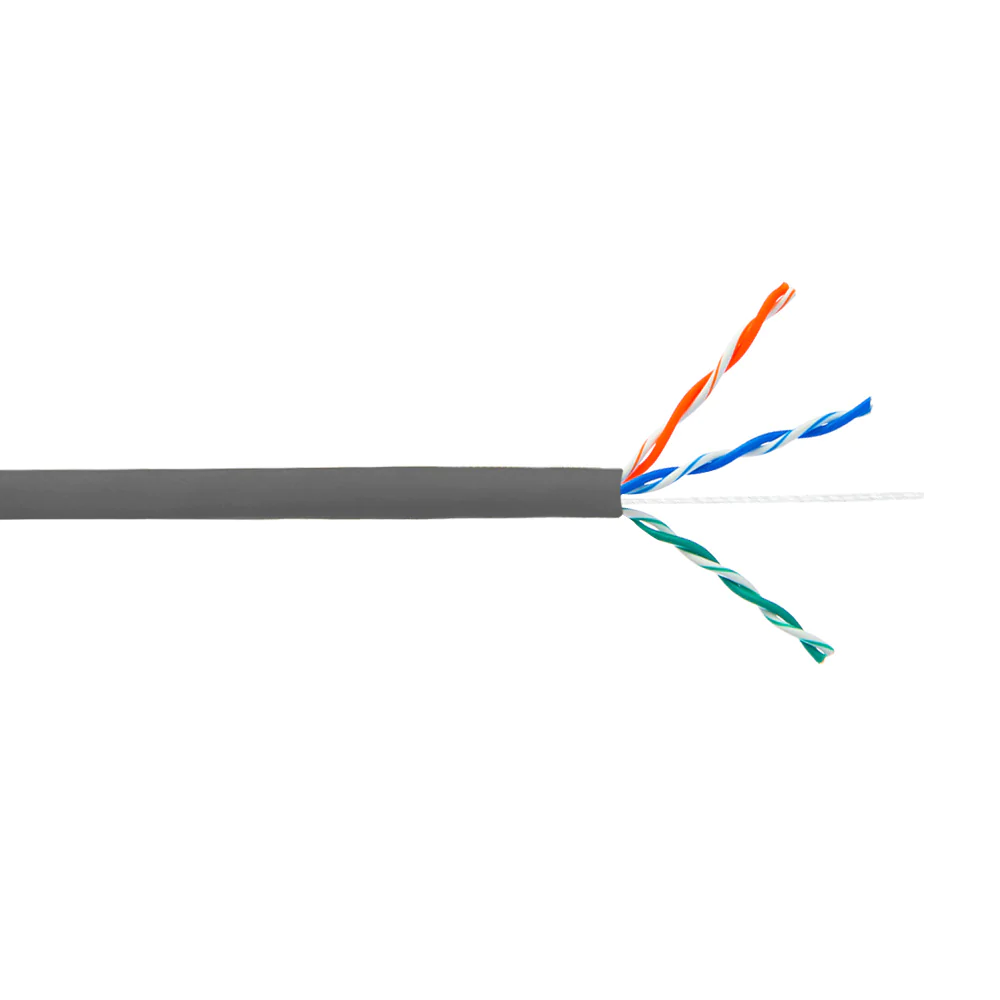

3 Pair Cat3 Solid UTP FT4/CMR/CL3 Bulk Cable – Grey
This bulk Cat3 cable consists of 3 pairs of 24AWG wires and is riser rated. It is typically used in walls to terminate telephone jacks to telco blocks or bix strips. It is ideal for voice communications and telephony but can also be used in any data communications networks and security system applications where electromagnetic interference is of minimal concern.
Description
This bulk Cat3 cable consists of 3 pairs of 24AWG wires and is riser rated. It is typically used in walls to terminate telephone jacks to telco blocks or bix strips. It is ideal for voice communications and telephony but can also be used in any data communications networks and security system applications where electromagnetic interference is of minimal concern.
Specifications
|
Physical Characteristics
|
|||
|---|---|---|---|
| Color | Grey | ||
| Cable Diameter | 4.50±0.10mm | ||
| Twisted Pair Diameter | 1.76±0.02mm | ||
| Number of Pairs | 3 Pairs | ||
| Color of Pairs | White-Blue White-Green White-Orange |
||
| Wire Gauge | 24 AWG | ||
| Conductor Material | 100% Bare Copper | ||
| Conductor Diameter | 0.475±0.005mm | ||
| Jacket Material | PVC – Polyvinyl Chloride | ||
| Jacket Rating | CMR/CL3/FT4 [Riser Rated] | ||
| Jacket Average Thickness | 0.50mm | ||
| Jacket Minimum Thickness | 0.45mm | ||
| Insulation | PE | ||
| Insulation Average Thickness | 0.203mm | ||
| Insulation Minimum Thickness | 0.185mm | ||
| Insulation Diameter | 0.88±0.01mm | ||
| Assembly Diameter | 3.50±0.20mm | ||
| Cable Shielding | None | ||
| Rip Cord | Yes – Nylon | ||
| Voltage Rating | 30V | ||
| Temperature Rating | -20ºC ~ 75ºC | ||
|
Electrical Characteristics
|
|||
| Before Aging | Tensile Strength (Mpa): >=13.8 Elongation (%): >=100 |
||
| Aging Condition (ºC x hrs) |
100×168 | ||
| After Aging | Tensile Strength (Mpa): >=85% of unaged Elongation (%): >=50% of unaged |
||
|
Approvals
|
|||
| c(ETL)us | Yes | ||
|
Environmental
|
|||
| RoHS | Yes | ||
|
Packaging Information
|
|||
| Package Quantity | 1 | ||
| 1000ft [305m] | 200ft [61m] | 100ft [30.4m] |
|---|---|---|
| 17.25 lbs [7.82 kg] | 3.28 lbs [1.48 kg] | 1.64 lbs [70.74 kg] |
