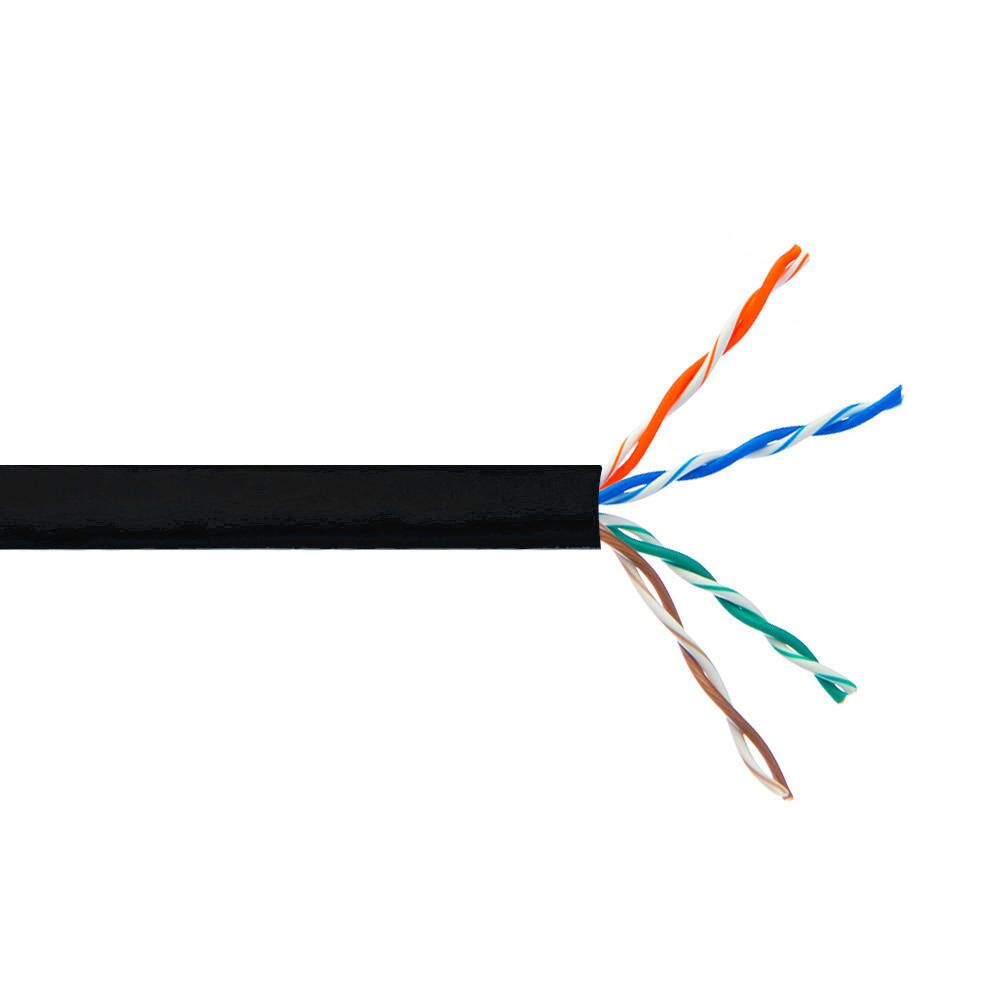

4 Pair Cat6 550MHz 23AWG Solid UTP FT6/CMP Plenum Bulk Cable
This bulk CAT6 plenum rated cable is 1000 feet in length and consists of 4 pairs of 23AWG solid bare copper wires. It is designed for use in data networking, PoE, security networking and voice applications. The cable is plenum (CMP) UL listed, RoHS Compliant and meets and/or exceeds CAT6 TIA/EIA 568 C.2 standards. It is typically used in plenum environments as premise wiring and terminated from a patch panel to a Cat6 jack.
Description
This bulk CAT6 plenum rated cable is 1000 feet in length and consists of 4 pairs of 23AWG solid bare copper wires. It is designed for use in data networking, PoE, security networking and voice applications. The cable is plenum (CMP) UL listed, RoHS Compliant and meets and/or exceeds CAT6 TIA/EIA 568 C.2 standards. It is typically used in plenum environments as premise wiring and terminated from a patch panel to a Cat6 jack.
|
Physical Characteristics
|
|
|---|---|
| Color | Black/Blue/Grey/White |
| Cable Length | 1000 foot [305m] |
| Cable Diameter | 6.00 mm |
| Number of Pairs | 4 Pairs |
| Wire Gauge | 23AWG Solid |
| Conductor Material | Solid Annealed Bare Copper |
| Jacket Material | PVC – Polyvinyl Chloride |
| Outer Jacket Average Wall Thickness | 0.020 in. |
| Outer Jacket Nominal O.D. | 0.236 in. +/- 0.008 in. |
| Jacket Rating | CMP [Plenum Rated] |
| Cable Shielding | None |
| Insulation Material | Polymer Alloy (FEP) |
| Insulation Overall Diameter | 0.038 in. +/- 0.0002 in. |
| Nominal Weight | 33 lbs |
|
Mechanical Characteristics
|
|
| Temperature Installation Rating | 0℃ ~ +60℃ |
| Temperature Operating Rating | -20℃ ~ +75℃ |
| Tensile Strength Elongation Before Aging | >=13.8 Mpa |
| Tensile Strength Elongation After Aging | >= 85% of unaged >= 50% of unaged |
| Aging Condition | 100℃ x 168 hours |
|
Performance
|
|
| Fluke® CAT6 Channel Test | Yes |
| Fluke® CAT6 Permalink Test | Yes |
| Fluke® CAT6 Patch Cable Test | Yes |
| Frequency | 550 MHz |
|
Environmental
|
|
| RoHS | Yes |
| Reach | Yes |
|
Warranty Information
|
|
| Warranty | 25 year |
|
Packaging Information
|
|
| Package Quantity | 1 |
| Product Weight | 33.5 lbs [15.2kg] |
