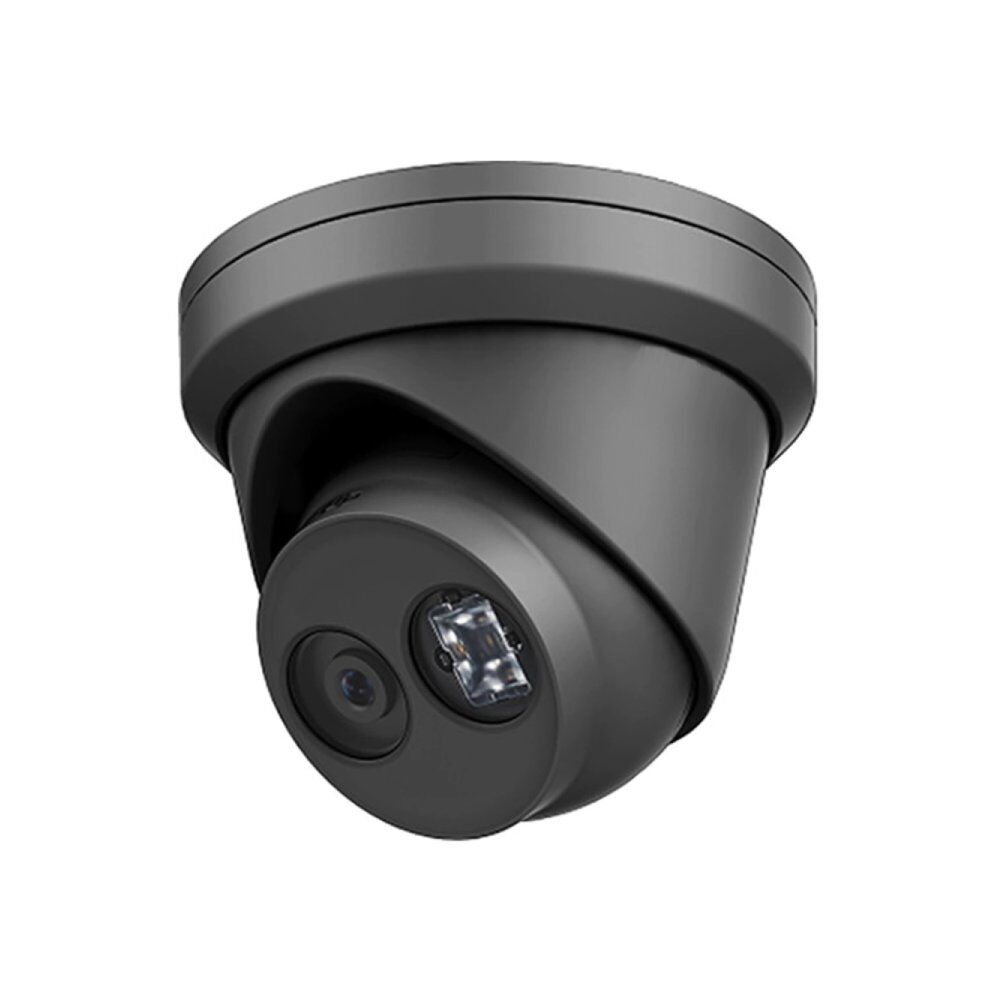

4MP Turret IP Camera – 30m IR Range – Outdoor IP67 Rated
This 4MP outdoor, IP based turret camera provides a sharp, high definition images in daylight or nighttime settings. The camera has a 2.8mm fixed lens which delivers a 103° horizontal field of view. Its maximum resolution is 2688 x 1520 at 30 fps and supportsH.265+ video compression technology, which assures savings in bandwidth and storage. The camera is IP based with integrated PoE technology which makes for a quick and easy installation over a single CAT5e/CAT6 cable. Its housing is IP67 rated for outdoor use and has 100 feet of night vision using an IR cut filter and IR LEDs.
Description
This 4MP outdoor, IP based turret camera provides a sharp, high definition images in daylight or nighttime settings. The camera has a 2.8mm fixed lens which delivers a 103° horizontal field of view. Its maximum resolution is 2688 x 1520 at 30 fps and supportsH.265+ video compression technology, which assures savings in bandwidth and storage. The camera is IP based with integrated PoE technology which makes for a quick and easy installation over a single CAT5e/CAT6 cable. Its housing is IP67 rated for outdoor use and has 100 feet of night vision using an IR cut filter and IR LEDs.
- High quality imaging with 4 MP resolution
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- Water and dust resistant (-I: IP67/-IU: IP66)
- Robust structure design with full metal materials
| Camera | |
|---|---|
| Image Sensor | 1/3″ (4 MP) progressive scan CMOS |
| Minimum Illumination | Color: 0.018 lux @ (f/2.0, AGC on), 0 lux with IR |
| Shutter Speed | 1/3 s to 1/100, 000 s |
| Slow Shutter | Yes |
| Auto-Iris | No |
| Day /Night | IR cut filter |
| Digital Noise Reduction | 3D DNR |
| WDR | 120dB |
| Angle Adjustment (Bracket) | Pan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360° |
| Lens | |
| Focal Length | 2.8 mm |
| Aperture | f/1.6 |
| Focus | Manual |
| FOV | 2.8 mm, horizontal FOV 103°, vertical FOV 58°, diagonal FOV 123° |
| Lens Mount | M12 |
| IR | |
| IR Range | Up to 100 ft (30 m) |
| Wavelength | 850 nm |
| Compression Standard | |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264; sub-stream: H.265+/H.265/H.264+/H.264/MJPEG; third stream: H.265+/H.265/H.264+/H.264 |
| H.264 Type | Main profile/high profile |
| H.264+ | Main stream and sub-stream support |
| H.265 Type | Main profile |
| H.265+ | Main stream and sub-stream support |
| Video Bit Rate | 256 Kbps to 16 Mbps |
| Smart Features | |
| Behavior Analysis | Line crossing detection, intrusion detection |
| Face Detection | Yes |
| Region of Interest | One fixed region for main stream and sub-stream |
| Image | |
| Maximum Resolution | 2688 x 1520 |
| Main Stream | 30 fps (2688 x 1520, 2560 x 1440, 2304 x 1296, 1920 x 1080) |
| Sub-Stream | 30 fps (640 x 480, 640 x 360, 320 x 240) |
| Third Stream | 30 fps (1280 x 720, 640 x 360, 352 x 240) |
| Image Enhancement | BLC, 3D DNR |
| Image Setting | Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser |
| Target Cropping | No |
| Day/Night Switch | Day/night/auto/schedule |
| Network | |
| Network Storage | Supports microSD/SDHC/SDXC card (128 GB), local storage, NAS (NFS,SMB/CIFS), and ANR |
| Alarm Trigger | Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| General Function | One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI |
| Simultaneous Live View | Up to 6 channels |
| User / Host | Up to 32 users; three levels: administrator, operator, and user |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | IE 8+, Chrome 31 to 44, Firefox 30.0 to 51, Safari 8.0+ |
| Interface | |
| Communication Interface | 1-port RJ-45 10M/100M self-adaptive Ethernet port |
| On-board storage | Built-in microSD/SDHC/SDXC slot, up to 128 GB |
| SVC | H.264 and H.265 encoding |
| Reset Button | Yes |
| General | |
| Operating Conditions | -22° F to 122° F (-30° C to 50° C); humidity: 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 25%, ⌀ 5.5 mm coaxial power plug; PoE (802.3af, class 3) |
| Power Consumption and Current | 12 VDC, 0.5 A, maximum: 6 W; PoE (802.3af, 37 V to 57 V), 0.2 A to 0.1 A, maximum: 7.5 W |
| Protection Level | IP67, TVS 2000V Lightning Protection, Surge Protection and Voltage Transient Protection |
| Material | Metal |
| Dimensions | Camera: ⌀ 5.0″ x 3.8″ (⌀ 127.3 x 95.9 mm) |
| Weight | Camera: 1.30 lbs (610 g) |
| Approvals | |
| c(UL)us | Yes |
| CE | Yes |
| FCC | Yes |
| ONVIF | Yes |
