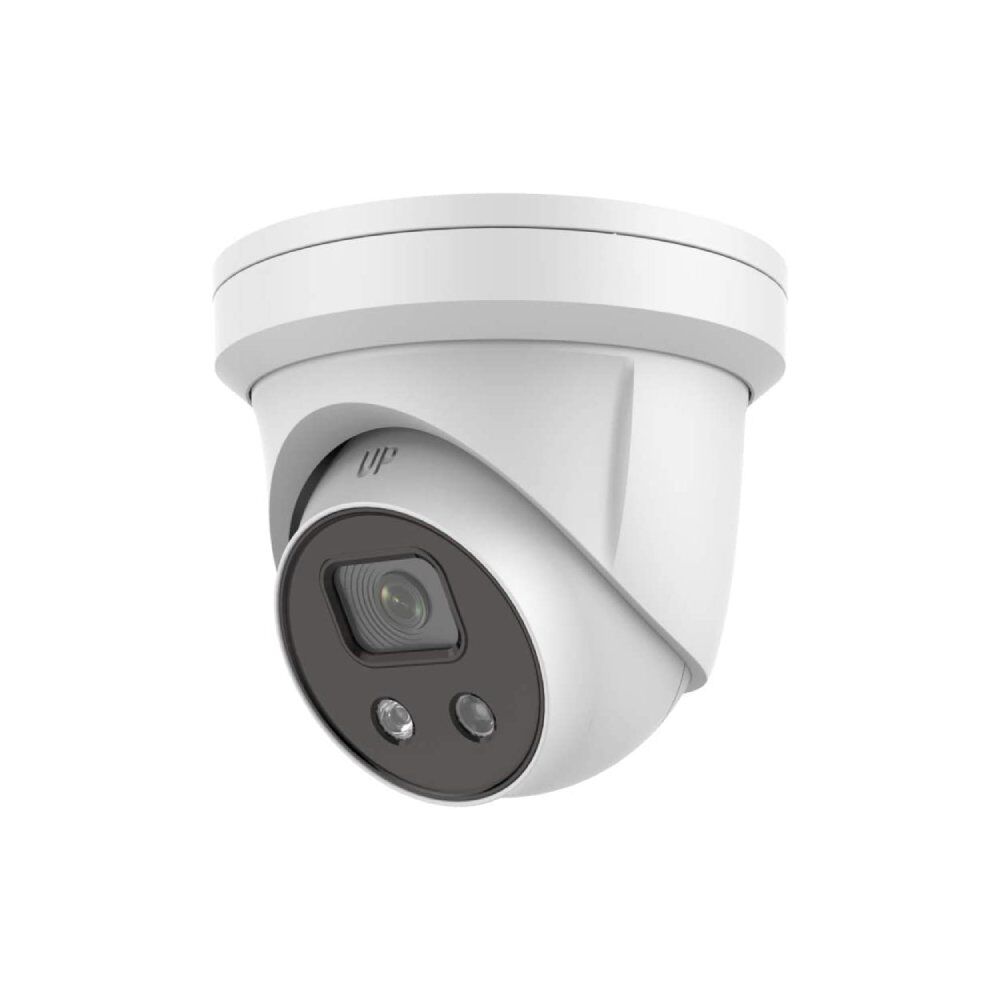

4MP ACUALARM ONYXFIGHTER IR FIXED TURRET NETWORK CAMERA

Camera

Image Sensor

1/2.7″ Progressive Scan CMOS

Min. Illumination

Color: 0.003 Lux @ (F1.4, AGC ON)

Shutter Speed

1/3 s to 1/100,000 s

Slow Shutter

Yes

P/N

P/N

Wide Dynamic Range

120 dB

Day & Night

ICR Cut

Angle Adjustment

Pan: 0˚ to 360˚, tilt: 0˚ to 75˚, rotate: 0˚ to 360˚

Lens

Lens Type & FOV

2.8 mm, horizontal FOV 103˚, vertical FOV 55˚, diagonal FOV 123˚

Aperture

F1.4

Lens Mount

M12

Illuminator

IR Range

Up to 30 m

Wavelength

850 nm

Smart Supplement Light

Yes

Visual Alarm

Yes

Video

Max. Resolution

2592 × 1944

Main Stream

50Hz: 20fps (2592 × 1944)

25fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720)

60Hz: 20fps (2592 × 1944)

30fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720)

Sub Stream

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)

60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Third Stream

50Hz: 25fps (1280 × 720, 640 × 480, 640 × 360, 360 × 240)

60Hz: 30fps (1280 × 720, 640 × 480, 640 × 360, 360 × 240)

Video Compression

Main stream: H.265/H.264 Sub−stream: H.265/H.264/MJPEG

Third stream: H.265/H.264

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline Profile/Main Profile/High Profile

H.265 Type

Main Profile

H.264+

Main Stream supports

H.265+

Main Stream supports

Bit Rate Control

CBR/VBR

Scalable Video Coding (SVC)

Yes

Region of Interest (ROI)

1 fixed region for each stream

Audio

Environment Noise Filtering

Yes

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Audio Compression

G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3

Audio Bit Rate

64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/32−192Kbps(MP2L2)/

8−320Kbps(MP3)

Network

Simultaneous Live View

Up to 6 channels

API

ONVIF(PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP,

IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS

Smooth Streaming

Yes

User/Host

Up to 32 users. 3 user levels: administrator, operator and user

Security

Password protection, complicated password, HTTPS encryption, IP address filter,

Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for ONVIF

Network Storage

microSD/SDHC/SDXC card (256 GB) local storage, and NAS(NFS, SMB/CIFS), auto network replenishment (ANR)

Together with high−end memory card, memory card encryption and health detection

are supported.

Client

CMS; Guarding Vision

Web Browser

Plug−in required live view: IE8+, Chrome 41.0−44, Firefox 30.0−51, Safari 8.0−11

Plug−in free live view: Chrome 57.0+, Firefox 52.0+


Day/Night Switch

Day, Night, Auto, Schedule

Image Enhancement

BLC, HLC, 3D DNR

Image Parameters Switch

Yes

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance

adjustable by client software or web browser

Interface

Alarm

1 input, 1 output (max. 12 VDC, 30 mA)

Audio

1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non−equilibrium;

1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non−equilibrium;

1 built−in speaker, 1 built−in microphone

On−board Storage

Built−in micro SD/SDHC/SDXC slot, up to 256 GB

Hardware Reset

Yes

Communication Interface

1 RJ45 10M/100M self−adaptive Ethernet port

Intelligent (Traditional Algorithm)

Basic Event

Motion detection, video tampering alarm, exception (network disconnected, IP

address conflict, illegal login, HDD full, HDD error), scene change detection

Intelligent (Deep Learning Algorithm)

Face Capture

Yes

Premier Protection

Line crossing detection, intrusion detection, region entrance detection, region exiting

detection

General

Linkage Method

Upload to NAS/memory card, notify surveillance center, trigger record, trigger capture, strobe light, audible warning

*Note: External device is required.

Web Client Language

33 languages:

English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,

Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

General Function

Anti−flicker, heartbeat, mirror, privacy masks, flash log, password reset via e−mail, pixel

counter

Software Reset

Yes

Storage Conditions

−30 ˚C to 60 ˚C (−22 ˚F to 140 ˚F). Humidity 95% or less (non−condensing)

Startup and Operating

Conditions

−30 ˚C to 60 ˚C (−22 ˚F to 140 ˚F). Humidity 95% or less (non−condensing)

Power Supply

12 VDC, 0.65 A, max. 7.8 W

PoE: (802.3af, 36 V to 57 V), 0.25A to 0.15 A, max. 8.8 W

Power Consumption and

Current

Ø5.5 mm coaxial power plug

Power Interface

12 VDC ± 25%, reverse polarity protection; PoE: 802.3af, Class 3

Material

Metal except for trim ring

Camera Dimension

Ø138.3 × 124.5 mm (Ø5.4” × 4.9”)

Package Dimension

170 × 170 × 150 mm (6.9″ × 6.9″ × 5.9″)

Camera Weight

Approx. 800 g (1.8 lb.)

With Package Weight

Approx. 1093 g (2.4 lb.)

Approval

EMC

FCC (47 CFR Part 15, Subpart B); CE−EMC (EN 55032: 2015, EN 61000−3−2: 2014, EN

61000−3−3: 2013, EN 50130−4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC

(ICES−003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)

Safety

UL (UL 60950−1); CB (IEC 60950−1:2005 + Am 1:2009 + Am 2:2013, IEC 62368−1:2014 ); CE−LVD (EN 60950−1:2005 + Am 1:2009 + Am 2:2013, IEC 62368−1:2014 ); BIS (IS

13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950−1)

Environment

CE−RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Protection

Ingression protection: IP66 (IEC 60529−2013)
