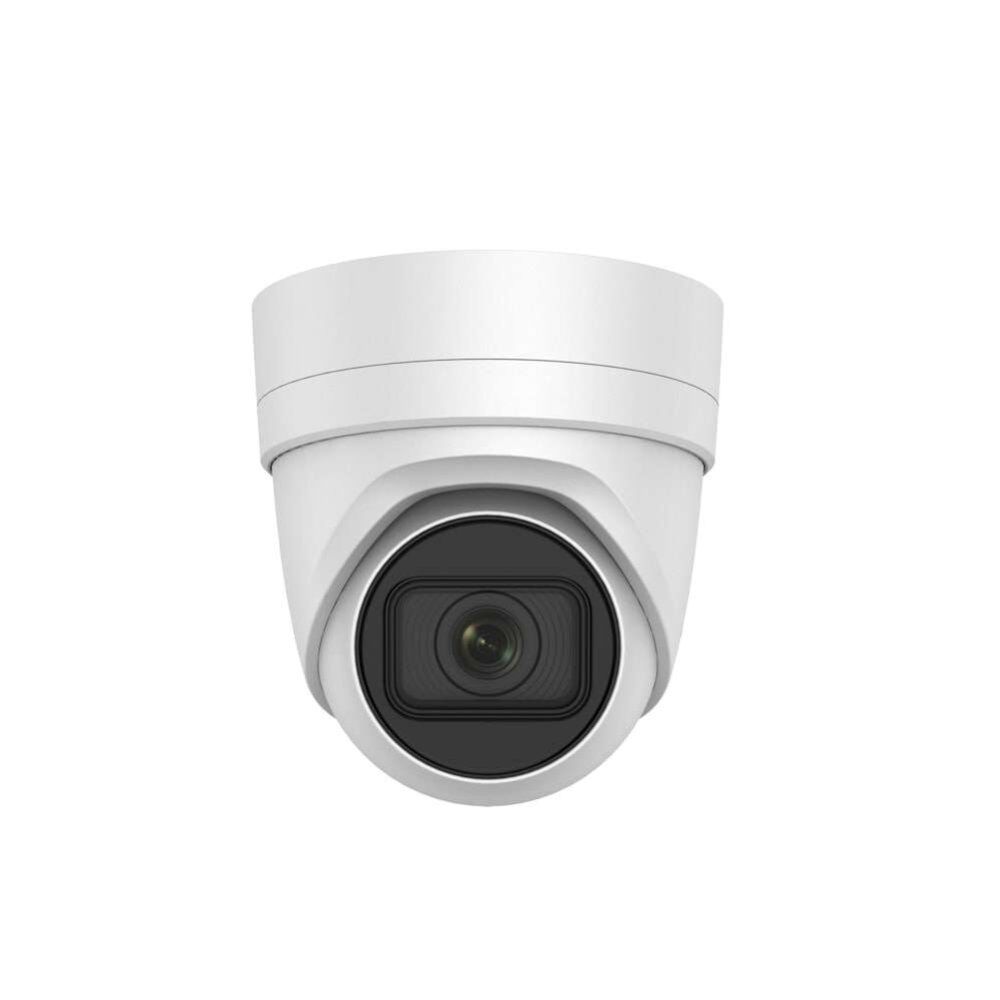

4MP VARIFOCAL TURRET NETWORK CAMERA

Camera

Image Sensor

1/3″ Progressive Scan CMOS

Min. Illumination

Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on

Shutter Speed

1/3 s to 1/100,000 s

Slow Shutter

Yes

P/N

P/N

Wide Dynamic Range

120 dB

Day & Night

ICR Cut

Angle Adjustment

Pan: 0˚ to 360˚, tilt: 0˚ to 75˚, rotate: 0˚ to 360˚

Lens

Lens Type & FOV

2.8 to 12 mm, horizontal FOV 95.8° to 29.2°, vertical FOV 50.6° to 16.4°, diagonal FOV
114.6° to 33.4°

Aperture

F1.6

Lens Mount

Ø 14

DORI

DORI

2.8 to 12 mm: D: 64 m to 200 m, O: 25.4 m to 79.4 m, R: 12.8 m to 40 m, I: 6.4 m to 20 m

IR Range

Up to 40 m

Wavelength

850 nm

Video

Max. Resolution

2688 × 1520

Main Stream

50Hz: 25fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60Hz: 30fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Sub Stream

50Hz: 25 fps (640 × 480, 640 × 360)
60Hz: 30 fps (640 × 480, 640 × 360)

Third Stream

50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

Video Compression

Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline Profile/Main Profile/High Profile

H.265 Type

Main Profile

H.264+

Main Stream supports

H.265+

Main Stream supports

Bit Rate Control

CBR/VBR

Scalable Video Coding (SVC)

Yes

Region of Interest (ROI)

1 fixed region for each stream

Audio

Environment Noise Filtering

Yes

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Audio Compression

G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3

Audio Bit Rate

64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/32−192Kbps(MP2L2)/

8−320Kbps(MP3)

Network

Simultaneous Live View

Up to 6 channels

API

ONVIF(PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP,

IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS

User/Host

Up to 32 users. 3 user levels: administrator, operator and user

Security

Password protection, complicated password, HTTPS encryption, IP address filter,

Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and
digest authentication for ONVIF

Network Storage

microSD/SDHC/SDXC card (256 GB) local storage, and NAS(NFS, SMB/CIFS), auto network
replenishment (ANR)

Together with high−end memory card, memory card encryption and health detection

are supported.

Client

iVMS-4200, Hik-Connect, Hik-Central

Web Browser

Plug-in required live view: IE 10, IE 11
Plug-in free live view : Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+


Day/Night Switch

Day, Night, Auto, Schedule

Image Enhancement

BLC, HLC, 3D DNR

Image Parameters Switch

Yes

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance

adjustable by client software or web browser

Interface

Alarm

1 input, 1 output (max. 12 VDC, 30 mA)

Audio

1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium

1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

Alarm

1 input, 1 output (max. 12 VDC, 30 mA)

On−board Storage

Built-in micro SD, up to 256 GB

Reset Key

Yes

Ethernet Interface

1 RJ45 10M/100M self-adaptive Ethernet port

Event

Basic Event

Motion detection (human and vehicle targets classification), video tampering alarm, exception

Deep Learning Function

Premier Protection

Line crossing detection, intrusion detection
Supports human and vehicle targets classification

General

Linkage Method

Upload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger capture, Email

Web Client Language

33 languages:

English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,
French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian,
Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

General Function

Anti−flicker, heartbeat, mirror, privacy masks, flash log, password reset via e−mail,
pixel counter

Software Reset

Yes

Storage Conditions

−30 ˚C to 60 ˚C (−22 ˚F to 140 ˚F). Humidity 95% or less (non−condensing)

Startup and Operating

Conditions

−30 ˚C to 60 ˚C (−22 ˚F to 140 ˚F). Humidity 95% or less (non−condensing)

Power Supply

12 VDC, 0.65 A, max. 7.8 W

PoE: (802.3af, 36 V to 57 V), 0.25A to 0.15 A, max. 8.8 W

Power Consumption and

Current

Ø5.5 mm coaxial power plug

Power Interface

Ø5.5 mm coaxial power plug

Material

Aluminum alloy body

Dimension

Ø138.3 × 166 mm (Ø5.4” × 5.0”)

Package Dimension

216 × 121 × 118 mm (8.5″ × 4.8″ × 4.6″)

Camera Weight

Approx. 830 g (1.8 lb.)

With Package Weight

Approx. 1115 g (2.5 lb.)

Approval

EMC

FCC (47 CFR Part 15, Subpart B); CE−EMC (EN 55032: 2015, EN 61000−3−2: 2014, EN

61000−3−3: 2013, EN 50130−4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC

(ICES−003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)

Safety

UL (UL 60950−1); CB (IEC 60950−1:2005 + Am 1:2009 + Am 2:2013, IEC 62368−1:2014 ); CE−LVD
(EN 60950−1:2005 + Am 1:2009 + Am 2:2013, IEC 62368−1:2014 ); BIS (IS

13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950−1)

Environment

CE−RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Protection

Ingression protection: IP66 (IEC 60529−2013)
