Description

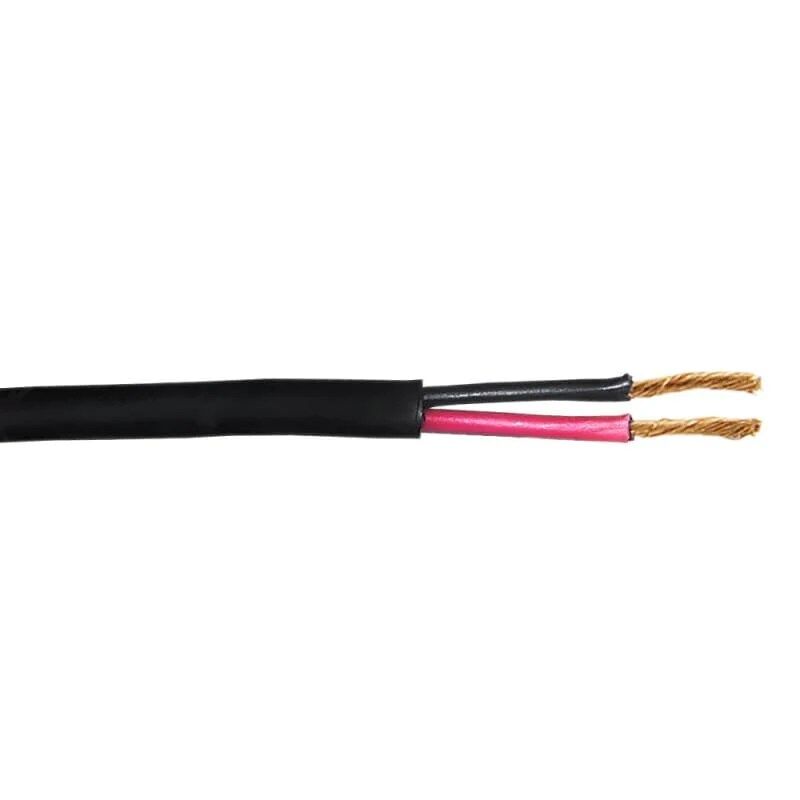

This bulk direct burial speaker cable is made from multi-stranded copper cable to capture all highs & lows for optimum audio performance. It is typically run outdoors or underground and used to connect speakers to amplifiers.
This bulk direct burial speaker cable is made from multi-stranded copper cable to capture all highs & lows for optimum audio performance. It is typically run outdoors or underground and used to connect speakers to amplifiers.
This bulk direct burial speaker cable is made from multi-stranded copper cable to capture all highs & lows for optimum audio performance. It is typically run outdoors or underground and used to connect speakers to amplifiers.
Physical Characteristics
|
|
---|---|
Cable Length | 500 foot [152.4m] |
Color | Black |
Temperature Rating | -20ºC ~ 75ºC |
Cable Diameter | 5.80±0.10mm |
Number of Conductors | 2 Conductor |
Wire Gauge | 16AWG |
Conductor Material | 100% Bare Copper |
Stranding Count & Diameter | 65/0.16mm ± 0.004 |
Assembly Diameter | 4.10±0.20 |
Jacket Material | PVC – Polyvinyl Chloride |
Jacket Rating | Direct Burial |
Jacket Average Thickness |
0.80mm |
Jacket Minimum Thickness |
0.72mm |
Insulation Average Thickness |
0.310mm |
Insulation Minimum Thickness |
0.280mm |
Insulation Diameter | 2.10±0.05 |
Ripcord | Nylon |
Cable Shielding | None |
Max Voltage Rating | 300V |
Flammability Test | CMX |
Capacitance | < 9.8nF/100M |
Resistance | 70+/-10 OHM |
Conductor Resistance | Max 15.5ohm/km at 20℃ |
Insulator Resistance | Min 50MΩ km at 20℃ |
Mechanical Characteristics
|
|
Before Aging | Tensile Strength (Mpa): >=13.8 Elongation (%): >=100 |
Aging Condition (deg C x hrs) |
100×168 |
After Aging | Tensile Strength (Mpa): >=85% of unaged Elongation (%): >=50% of unaged |
Environmental
|
|
RoHS | Yes |
Packaging Information
|
|
Package Quantity | 1 |
Product Weight | 19.9 lbs |
