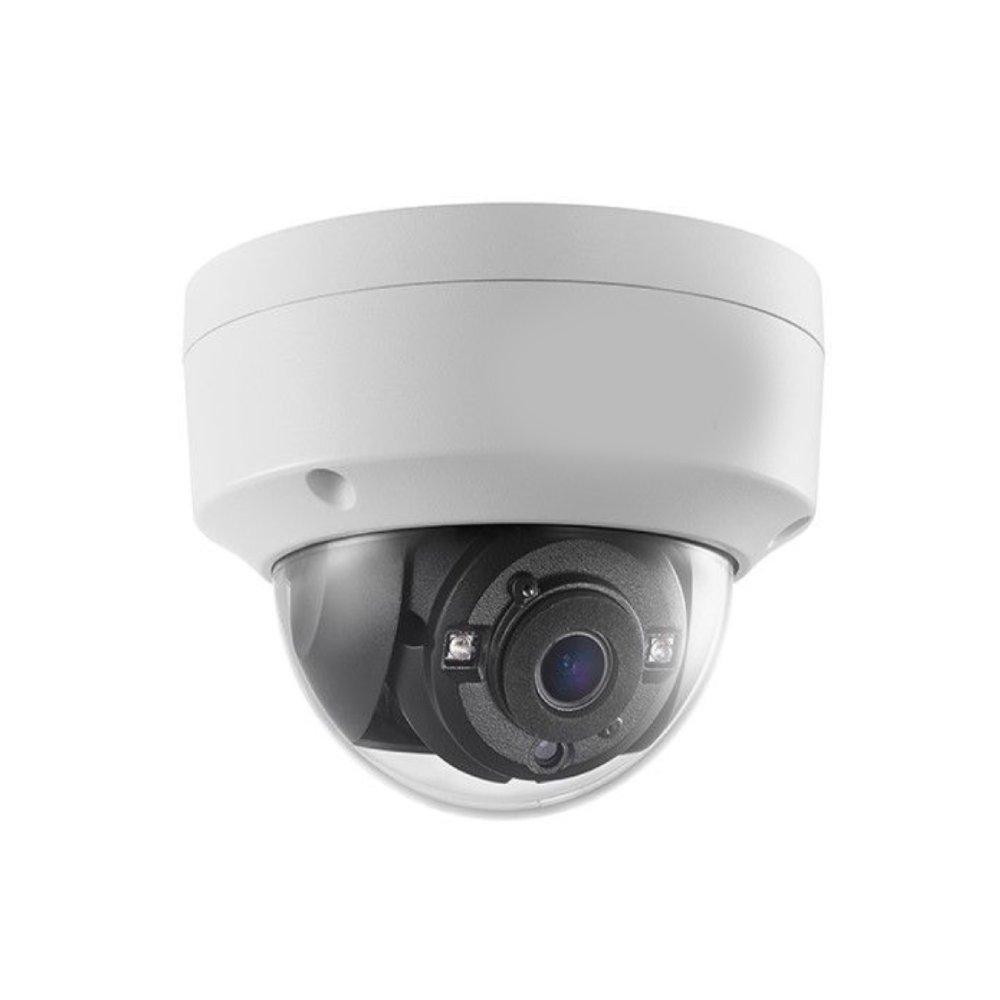

This 5MP indoor/outdoor, TVI based dome camera provides a sharp, high definition images in daylight or nighttime settings. The camera comes with 2.8mm or 3.6mm fixed lens which delivers 85.5° or 80.1° horizontal field of view respectively. Its maximum resolution is 1080p at 30 fps NTSC or 1080p at 25 fps PAL. Using TurboHD technology, the high definition video analog signal can be sent over existing coaxial cable, eliminating the need to run new cables. Its housing is IP67 rated for outdoor use and has 65 feet of night vision using Ultra-Low Light EXIR technology for high definition analog output.
This 5MP indoor/outdoor, TVI based dome camera provides a sharp, high definition images in daylight or nighttime settings. The camera comes with 2.8mm or 3.6mm fixed lens which delivers 85.5° or 80.1° horizontal field of view respectively. Its maximum resolution is 1080p at 30 fps NTSC or 1080p at 25 fps PAL. Using TurboHD technology, the high definition video analog signal can be sent over existing coaxial cable, eliminating the need to run new cables. Its housing is IP67 rated for outdoor use and has 65 feet of night vision using Ultra-Low Light EXIR technology for high definition analog output.
Features
5 Megapixel high-performance CMOS
2560 x 1944 resolution
Smart IR, up to 20 m IR distance
Switchable TVI/AHD/CVI/CVBS
IP67 outdoor rated, IK10 rated
OSD menu
2D DNR
DWDR
0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
12 VDC
Up the Coax (UTC-C)
2.8mm/3.6mm Lens
Application
Note: Dome cameras are best suited for indoor applications or outdoor applications which are sheltered from direct sunlight and any other adjusted light sources, as the curvature of the dome can cause reflections and glares on the camera lens. Turret cameras are best suited for outdoor applications which are directly exposed to the elements.
PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
Lens
2.8mm
3.6mm
Horizontal Field of View
85.5°
80.1°
Lens Mount
M12
Day and Night
IR cut filter
Angle Adjustment
Pan: 0° to 355°, Tilt: 0° to 75°, Rotation: 0° to 355°
Synchronization
Internal synchronization
Menu
AGC
Supported
Day and Night Mode
Auto/Color/BW(Black and White)
White Balance
Auto/Manual
Backlight Compensation
Supported
Digital Wide Dynamic Range
Supported
Language
English
Functions
Brightness, Sharpness, DNR, Mirror, Smart IR
Interface
Video Output
1 HD analog output
Switch Button
TVI/AHD/CVI/CVBS
General
Operating Conditions
-40 °C to 60 °C (-40 °F to 140 °F), Humidity 90% or less (non-condensation)
Power Supply
12 VDC ± 15%
Power Consumption
Max. 4.3 W
Ingress Protection
IP67, IK10
Material
Metal
IR Range
Up to 65 ft (20 m)
Dimensions
Φ111 × 82.4(Φ4.37” × 3.24”)
Weight
Approximately 0.77 lbs (350 g)
Downloads
Web Portal Remote Access
Register/login with your Guarding Vision account for access to all devices in your account remotely from the browser. Supports Internet Explorer 8+, Chrome 41.0 to 44, Firefox 30.0 to 51 and Safari 8.0 to 11
Guarding vision iOS app
Supports iOS 8.0 or later. Compatible with iPhone, iPad and iPod touch
Warranty
All cameras and hard drives sold by RTC Electronics come with a 3-year warranty ensuring them free from manufacturing and material flaws. The original buyer who provides evidence of purchase is eligible for this warranty. This warranty does not cover any product failure or damage resulting from events outside RTC Electronics’ control, such as misuse, negligence, or accidental damage, inaccurate application or installation, alterations, Act of God, or ordinary wear and tear. Any removal or installation expenses are not the responsibility of RTC Electronics. Cables’ full and exclusive obligation under this warranty is to, in our exclusive discretion, either repair or replace the defective item. RTC Electronics disclaims any additional warranties, express or implied, including the implied warranty of merchantability. RTC Electronics won’t be held responsible for any losses, including lost or anticipated profits, delays, consequential damages, or other, unique damages.
